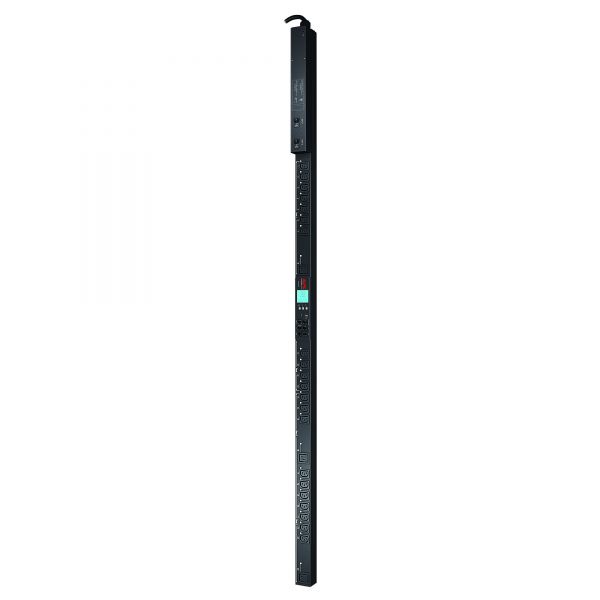

APC by Schneider Electric Switched Rack AP8000 24-Outlets PDU

Switched - NEMA L6-30P - 21 x IEC 60320 C13, 3 x IEC 60320 C19 - 200 V, 208 V, 230 V - Overload Protection - 9.84 ft Cord Length - 0U - Rack-mountable
Product Number: SYNX2980651
  • Metering-by-Outlet capability - Individual outlet level power metering provides a more granular view of the power distributed to equipment within the enclosure. It also provides the ability to analyze component power trends and perform capacity planning.
  • A device fitted with multiple outputs for the distribution of electric power
  • Remotely control individual outlets for rebooting of locked equipment with switched PDUs
  • IEC 60320 C19 receptacle type to ensure maximum dependability and optimal performance
More details
$1,825.34$1,981.36
Ships Free - This items ships free with your order
Delivered by Mon 4/29 Tue 4/30 - This is an estimated delivery timeline
Non Returnable - This is a non returnable item

Product Description

APC by Schneider Electric Switched Rack AP8000 24-Outlets PDU - APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power cycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing time delays allow users to define the order in which to power up or down attached equipment to avoid circuit overload. Current metering provides real-time remote monitoring of connected loads with user-defined alarms to warn of potential circuit overloads. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, Command Line Interface, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency. New AP8000 series Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles.
More from the Manufacturer

  • Metering-by-Outlet capability - Individual outlet level power metering provides a more granular view of the power distributed to equipment within the enclosure. It also provides the ability to analyze component power trends and perform capacity planning.
  • A device fitted with multiple outputs for the distribution of electric power
  • Remotely control individual outlets for rebooting of locked equipment with switched PDUs
  • IEC 60320 C19 receptacle type to ensure maximum dependability and optimal performance
  • NEMA L6-30P plug/connector type for reliable, productive connectivity and optimal power output
  • 200 V input voltage for maximum feasibility and added productivity
  • 200 V AC output voltage for optimal performance with maximum feasibility
Guides & Information
Related Articles
 Need more information? Ask a Question
Read More

Product Specifications

  • Additional Warranty Information
    2 years repair or replace
  • Brand Name
    APC by Schneider Electric
  • Certifications & Standards
    cUL Listed|PSE|UL Listed|VCCI Class A
  • Cord Length
    9.84 ft
  • Depth
    2"
  • EU RoHS Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65033374&lang=en-us
  • End of Life Manual Availability
    https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612033_EN
  • Environmental Certification
    RoHS
  • Environmental Profile Availability
    https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612035_EN
  • Environmentally Friendly
    Yes
  • Green Premium
    Yes
  • Height
    72"
  • Input Voltage
    230 V 200 V 208 V
  • Input Voltage Range
    200 V AC - 230 V AC
  • Lead Free
    Yes
  • Limited Warranty
    2 Year
  • Management
    Protocols: Web SNMP Telnet
  • Manufacturer Part Number
    AP8641
  • Mount Type
    Rack-mountable
  • Optimized Energy Efficiency
    Yes
  • Output Voltage
    200 V AC 208 V AC
  • Package Contents
    Switched Rack AP8000 24-Outlets PDU CAN port terminator Installation guide Rack mounting brackets Safety guide Serial configuration cable
  • Plug/Connector Type
    NEMA L6-30P
  • Product Line
    Switched Rack
  • Product Model
    AP8641
  • Product Name
    Switched Rack AP8000 24-Outlets PDU
  • Product Series
    AP8000
  • Product Take Back Program
    Yes
  • Product Type
    PDU
  • Protection Type
    Overload Protection
  • REACH Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65033374&lang=en-us
  • REACH free of SVHC
    No
  • Rack Height
    0U
  • Receptacle Detail
    21 x IEC 60320 C13 3 x IEC 60320 C19
  • Receptacle Type
    IEC 60320 C13 IEC 60320 C19
  • RoHS Exemption Information
    https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8641_ROHS_DECLARATION&p_FileName=AP8641KIT_ROHS_DECLARATION_US.pdf
  • WEEE Statement
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Width
    2.2"
