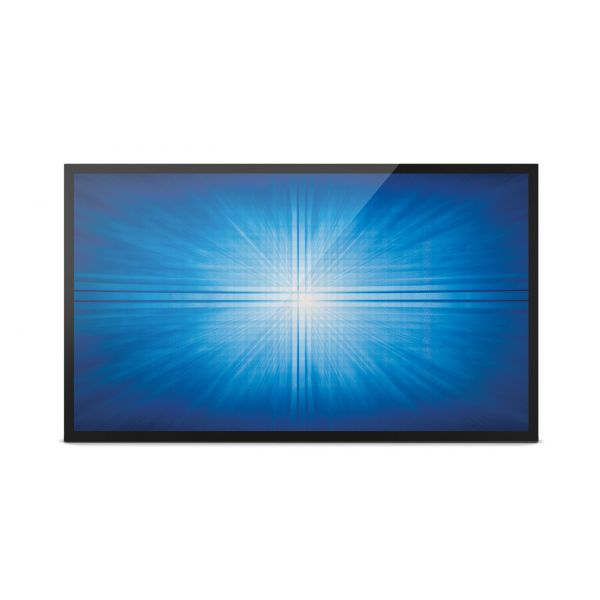

Elo 4343L Open Frame Touchscreen

42.5" LCD - 1920 x 1080 - LED - 450 Nit - 1080p - HDMI - USBEthernet - Black
Product Number: IGRM9U2475
  • Elo Open-frame Digital Signage Display - Designed from scratch to supply superior performance, unwavering quality, and the finest visual picture quality
  • 42.5" screen - Uplift your brand title, improve your client flow and boost your sales by using the screens shining and vibrant display capability
  • Experience luminescent visual images with LCD display
  • Offers exceptionally smooth and crisp viewing experience due to its 1920 x 1080 full HD resolution
More details
$2,063.83
Free Shipping Estimated Delivery
Favorite
Compare
Request Quote

Product Description

Elo 4343L Open Frame Touchscreen - Coming soon, the Elo 4343L open frame touchscreen delivers a professional-grade large format 42.5-inch full HD display in a sleek and thin 2.6-inch (66 mm) form factor. The 4343L enables a thinner and smaller kiosk design for applications with limited space. The touchscreen glass is built and tested to provide robust impact resistance by exceeding the UL60950 ball-drop and IK06 impact immunity requirements. Energy Star 7.0 certified, the 4343L, with its' energy efficient LED backlight, is designed for optimal energy conservation reducing power consumption and heat dissipation. The 4343L offers multiple mounting options, sleek edge-to-edge glass architecture and can handle 24/7 operation, making it ideal for public venue self-service kiosks and built-in application installs for retail, hotels, gaming, transportation and other commercial uses.
Easily integrated.
TouchPro Pro-M (Mesh) Projected capacitive (PCAP) units are sealed against dirt and dust to simplify integration into the final enclosure. And with the capability to support touch through glass, the 4343L can be sealed into a solution and obtain an IP65 rating on the front side of the unit. The flush mount kit is included to enable a seamless and elegant front kiosk surface. And, as with all Elo open frame touchscreen displays, we control the design and tooling to help ensure future products will be identical in form, fit and mechanical design whenever possible helping you to minimize costly enclosure changes.
Touch ready.
Designed for touch from the start, the seamless zero-bezel 42.5-inch multi-touch display is available with our latest TouchPro PCAP advanced mesh solution offering a lighter 12-point multi-touch screen specifically designed for large format, high-use applications. The 4343L's TouchPro PCAP offers fast and extremely sensitive response similar to the experience on mobile devices and is compatible with Windows 7, Windows 8 and Windows 10. The 4343L touchscreen provides pure glass construction to deliver a clear, bright and long-lasting touchscreen solution.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. Designed and built by Elo, we use our own touchscreens, software and drivers ensuring everything is designed to work together and tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF (demonstrated).
Other features.
1920 x 1080 full HD for crisp image and text detail
Bright, high contrast display with a wide viewing angle that easily attracts and holds the user's attention
Multiple available mounting option
3-year standard warranty extendable to 5 years
Regulatory approvals and declarations for use across the globe
Integrated power supply for use in slim enclosures
Energy efficient with EnergyStar 7.0 certification and EU Efficiency Class A ratings

  • Elo Open-frame Digital Signage Display - Designed from scratch to supply superior performance, unwavering quality, and the finest visual picture quality
  • 42.5" screen - Uplift your brand title, improve your client flow and boost your sales by using the screens shining and vibrant display capability
  • Experience luminescent visual images with LCD display
  • Offers exceptionally smooth and crisp viewing experience due to its 1920 x 1080 full HD resolution
  • LED backlighting offers a fine uniformity to display effective pictures at a low cost
  • Engages your customers and makes their viewing experience breathtaking with its 1080p content

Product Specifications

  • Backlight Technology
    LED
  • Brand Name
    Elo
  • Brightness
    450 Nit
  • Color
    Black
  • Depth
    2.6"
  • Display Resolution
    1920 x 1080
  • Display Screen Type
    LCD
  • Environmental Certification
    China RoHS ENERGY STAR 7.0 RoHS WEEE
  • Environmentally Friendly
    Yes
  • Ethernet
    Yes
  • HDMI
    Yes
  • Height
    23.1"
  • Input Voltage
    120 V AC 230 V AC
  • Limited Warranty
    3 Year
  • Manufacturer Part Number
    E220574
  • Package Contents
    4343L Open Frame Touchscreen QIG OSD Remote HDMI Cable VGA Cable USB Cable (Type A to B) Power Cable IEC 60320-C13 8 x Side Mount Brackets 16 x Side Mount Bracket Screws
  • Product Model
    4343L
  • Product Name
    4343L Open Frame Touchscreen
  • Product Type
    Open-frame Digital Signage Display
  • Scan Format
    1080p
  • Screen Size
    42.5"
  • Touchscreen
    Yes
  • USB
    Yes
  • Width
    39.3"
