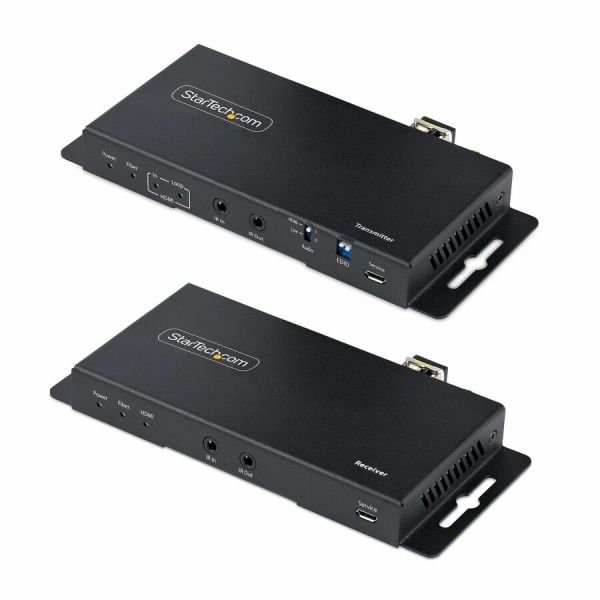

StarTech.com 4K HDMI over Fiber Extender Kit, 4K 60Hz, 3300ft (1km) Single Mode/1000ft (300m) Multimode LC Fiber Optic, HDR, IR Extender
Product #:
ETLZ1077117474
+1View All
$642.00
Loading...
Product Description
StarTech.com 4K HDMI over Fiber Extender Kit, 4K 60Hz, 3300ft (1km) Single Mode/1000ft (300m) Multimode LC Fiber Optic, HDR, IR Extender
HDMI over Fiber Extender Kit; 4K 60Hz HDMI over Single Strand LC Optical Fiber; 7.1ch Audio; HDR10; Single Mode up to 3300ft; Multimode up to 1000ft; Metal housing; Built-in mounting brackets; IR/serial extension; 8kV Air/6kV Contact ESD protection
This HDMI over Fiber Extender Kit extends an Ultra HD (UHD) 4K 60Hz HDMI signal, with 7.1ch audio, up to 3300ft over Single Strand LC fiber cable. This converter kit includes both the transmitter and receiver for a complete end-to-end solution.
Works with Single Mode or Multimode Fiber
This HDMI extender works over Single Mode or Multimode fiber cabling, allowing the utilization of existing fiber infrastructure. The single strand optical fiber provides full-bandwidth video while being immune to Electro-Magnetic Interference (EMI), making it ideal for use in challenging environments. Fiber Type Single Mode Multi Mode Supported Distance Up to 3300ft (1000m) Up to 1000ft (300m)
Audio Capabilities
Audio extraction functionality enables playback of the HDMI source audio via the 3.5mm audio output on the receiver unit. Simultaneous audio playback across both HDMI and 3.5mm outputs is supported, providing flexibility for a variety of audio setups.
Hassle-Free Installation
The point-to-point connection, using LC single strand fiber between the A/V transmitter and receiver, eliminates the need for IP configuration, drivers, or network equipment. The HDMI extension kit features a durable steel housing with built-in mounting brackets, allowing for a tidy and secure installation.
The HDMI over Fiber kit features a local HDMI output and IR/serial extension for a convenient and versatile setup. Ideal for setups that include projectors with RS232 controls, or A/V equipment with IR remote controls. The enhanced EDID Copy functions ensure the correct display information is used during the setup process. LED indicators allow for status monitoring. 8kV air and 6kV contact Electrostatic Discharge (ESD) protection ensures the safety and longevity of the equipment.
This product is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance.
Works with Single Mode or Multimode Fiber
This HDMI extender works over Single Mode or Multimode fiber cabling, allowing the utilization of existing fiber infrastructure. The single strand optical fiber provides full-bandwidth video while being immune to Electro-Magnetic Interference (EMI), making it ideal for use in challenging environments. Fiber Type Single Mode Multi Mode Supported Distance Up to 3300ft (1000m) Up to 1000ft (300m)
Audio Capabilities
Audio extraction functionality enables playback of the HDMI source audio via the 3.5mm audio output on the receiver unit. Simultaneous audio playback across both HDMI and 3.5mm outputs is supported, providing flexibility for a variety of audio setups.
Hassle-Free Installation
The point-to-point connection, using LC single strand fiber between the A/V transmitter and receiver, eliminates the need for IP configuration, drivers, or network equipment. The HDMI extension kit features a durable steel housing with built-in mounting brackets, allowing for a tidy and secure installation.
The HDMI over Fiber kit features a local HDMI output and IR/serial extension for a convenient and versatile setup. Ideal for setups that include projectors with RS232 controls, or A/V equipment with IR remote controls. The enhanced EDID Copy functions ensure the correct display information is used during the setup process. LED indicators allow for status monitoring. 8kV air and 6kV contact Electrostatic Discharge (ESD) protection ensures the safety and longevity of the equipment.
This product is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance.
- HDMI OVER FIBER EXTENDER KIT: Extend an Ultra HD (UHD) 4K 60Hz HDMI signal with 7.1ch audio up to 3300ft (1km) over Single Mode or up to 1000ft (300m) over Multimode fiber cabling; Single Strand LC/UPC connector; HDR10; HDCP 2.2; 4:4:4 Chroma Subsampling
- RELIABLE VIDEO TRANSMISSION: HDMI extender works over Single Mode or Multimode fiber, enabling the use of existing fiber cabling; Single strand optical fiber provides full bandwidth video while being immune to Electro-Magnetic Interference (EMI)
- AUDIO CAPABILITIES: HDMI 2.1 Extender offers an audio extraction function that enables playback of HDMI source audio via the 3.5mm audio output on the receiver unit; Simultaneous audio playback across both HDMI and 3.5mm outputs is supported
- HASSLE-FREE INSTALLATION: Point-to-Point connection with optical fiber between transmitter and receiver means no IP configuration, drivers, or network equipment required; Durable metal housing with built-in mounting brackets for a tidy installation
- ROBUST FEATURES: HDMI to Fiber Converter features a local HDMI output and IR/serial extension for convenient and versatile setup options; EDID Copy; LED indicators for status monitoring; 8kV air and 6kV contact Electrostatic Discharge (ESD) protection
- Video Extender Transmitter/Receiver is all you need for dependable and productive audio/video transmission
- HDMI in allows convenient transfer of content and data to video extender transmitter/receiver to ensure maximum dependability
- HDMI out enables you to transfer data from your devices to video extender transmitter/receiver with added efficiency
- Connect your video extender transmitter/receiver to your PC to supply power and conveniently transfer the photos and videos for editing and sharing on the social media
- Optical fiber media type supported provides a high-speed, constant, and steady Internet connection that allows a lot of data to be transmitted over long distances
- 1 input devices supported to better accommodate your specific requirements
- 2 output devices supported for maximum productive usability
- 3300 ft maximum operating distance for reliable coverage and maximum portability
- 4K UHD graphics mode for an immersive and sharp viewing experience
Loading...
Product Specifications
-
Brand NameStarTech.com
-
Connectivity TechnologyWired
-
Graphics Modes4K UHD
-
HDMI InYes
-
HDMI OutYes
-
Limited Warranty2 Year
-
Manufacturer Part NumberST121HD20FXA2
-
Maximum Operating Distance3300 ft
-
Media Type SupportedOptical Fiber
-
Number of HDMI Inputs1
-
Number of HDMI Outputs2
-
Number of Input Devices Supported1
-
Number of Output Devices Supported2
-
Number of USB Ports2
-
Package Contents1 x Transmitter Unit 1 x Receiver Unit
-
Product NameVideo Extender Transmitter/Receiver
-
Product TypeVideo Extender Transmitter/Receiver
-
USBYes
