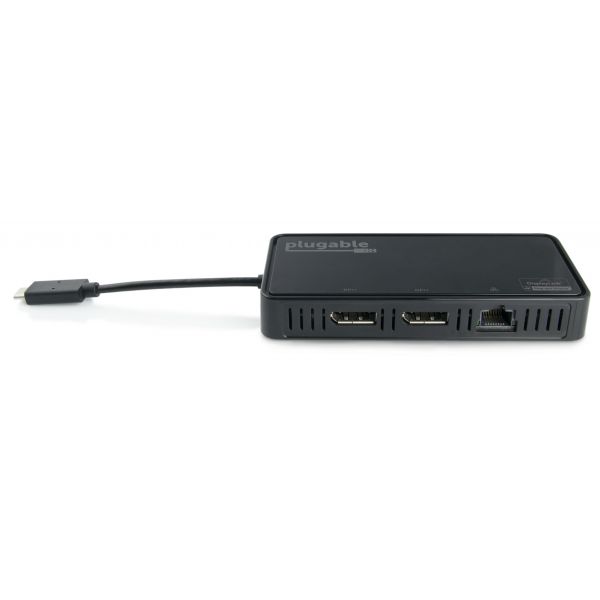

Plugable USB Type-C Dual 4K DisplayPort and Gigabit Ethernet Adapter

for Notebook/Desktop PC - USB Type C - Network (RJ-45) - DisplayPort - Thunderbolt - Wired
Product Number: IGRM2KH716
  • Connect two DisplayPort displays up to a 4K@60Hz refresh rate per display (3840×2160@60Hz). Displays and cables must support 4K@60Hz
  • Gigabit Ethernet port for hard-wired network connectivity
  • Supports pass through of video and audio over USB-C and a DisplayPort cable
  • Compatible with USB Type-C 3.1 Gen 1 / Gen 2 and Thunderbolt 3 host systems
More details
$107.83
Free Shipping Estimated Delivery
Favorite
Compare
Request Quote

Product Description

Plugable USB Type-C Dual 4K DisplayPort and Gigabit Ethernet Adapter - The first adapters available with the the DisplayLink DL-6950 chipset, our USB-C Dual 4K adapters support two external monitors at resolutions up to 4K@60Hz each and offers a Gigabit Ethernet port for connecting to your network via Ethernet cable. Our adapter is compatible with systems with a USB 3.1 Type-C Gen 1 / Gen 2 or Thunderbolt 3 ports and leverages the increased data throughput of these technologies.
The Dual 4K DisplayPort adapter offers two Dual-Mode DisplayPort 1.2 (DP++) ports and is backwards compatible with previous DisplayPort specifications.
4K@60Hz Notes:
To achieve 4K@60Hz each connected monitor and cable must support the desired resolution and refresh rate.
DisplayPort equipped monitors and DisplayPort cable must support DisplayPort 1.2 specification in order to support 4K@60Hz. While backwards compatible with DisplayPort 1.1 standards, the resolution will be limited to 4K@30Hz if the display or cable does not support DisplayPort 1.2 specifications.

Compatibility

Our adapter is compatible with most modern laptops and desktops running Windows 10, 8.1 and 7 and requires the DisplayLink graphics software to be installed. Popular Windows systems with a USB Type-C/Thunderbolt 3 port include the Dell XPS 13 (9350, 9360) and XPS 15 (9550, 9560), Lenovo Yoga 720-13IKB, Lenovo Yoga 900-13ISK, HP Spectre x360 13" (13-ac013dx), and more.
It is not supported with macOS, Linux/Unix or ARM based Windows operating systems (such as Surface RT).
Does not support HDCP copy protected content (Blu-Ray, Netflix, Amazon Prime video, etc.). Our adapter also does not support DisplayPort MST daisy-chain connections or Dual-Link DVI conversions.
Additionally, the Gigabit Ethernet port requires a Full-Duplex network connection from the connected network device (router, switch, etc.).

  • Connect two DisplayPort displays up to a 4K@60Hz refresh rate per display (3840×2160@60Hz). Displays and cables must support 4K@60Hz
  • Gigabit Ethernet port for hard-wired network connectivity
  • Supports pass through of video and audio over USB-C and a DisplayPort cable
  • Compatible with USB Type-C 3.1 Gen 1 / Gen 2 and Thunderbolt 3 host systems
  • USB bus powered; No power supply required
  • Supported on modern Windows systems running Windows 10, 8.1, and 7. Additional compatibility information below

Product Specifications

  • Brand Name
    Plugable
  • Compatibility
    Notebooks: Dell XPS 13 (9350, 9360) Dell XPS 15 (9550, 9560) Lenovo Yoga 720-13IKB Lenovo Yoga 900-13ISK HP Spectre x360 13" (13-ac013dx)
  • Connectivity Technology
    Wired
  • Device Supported
    Notebook/Desktop PC
  • DisplayPort
    Yes
  • Host Interface
    USB Type C
  • Manufacturer Part Number
    USBC-6950-DP
  • Network (RJ-45)
    Yes
  • Package Contents
    USB Type-C Dual 4K DisplayPort and Gigabit Ethernet Adapter Quick Start Guide
  • Product Model
    USBC-6950-DP
  • Product Name
    USB Type-C Dual 4K DisplayPort and Gigabit Ethernet Adapter
  • Product Type
    Docking Station
  • Thunderbolt
    Yes
