StarTech.com USB-C Dock, 4K 60Hz Quad Monitor DisplayPort & HDMI, Universal USB C Docking Station, 100W Power Delivery, USB Hub 1C/3A, GbE
+5View All
$244.33
Loading...
Product Description
StarTech.com USB-C Dock, 4K 60Hz Quad Monitor DisplayPort & HDMI, Universal USB C Docking Station, 100W Power Delivery, USB Hub 1C/3A, GbE
Quad monitor USB C docking station - 4x DisplayPort and/or 4x HDMI displays/monitors at 4K 60Hz - USB C Dock w/ 100W Power Delivery for USB Type-C/Thunderbolt laptops - 1xC 10Gbps, 3xA 5Gbps, GbE, TRRS Audio; DisplayLink Certified - Win/mac/Chrome
This USB-C Gen 2 10Gbps docking station turns your USB-C or Thunderbolt™ 3 MacBook Pro, Windows laptop, and Chromebook into a powerful workstation. A USB 3.2 Gen 2 Type-C dock features everything you need, from quad HDMI or DisplayPort video outputs up to 4K 60 Hz to 10Gbps USB-C & USB-A downstream peripheral ports to 100W Power Delivery.
HDMI & DisplayPort for Four Monitor Outputs
This USB-C Gen 2 docking station with DP 1.2 and HDMI 2.0 HDR support, is a perfect choice for dual, triple, or quad monitor setup, supporting up to quad 4K 60Hz display output, with any combination of four DisplayPort or HDMI video interfaces, on USB-C Gen 2 laptops, MacBooks (including M1 based systems) and Windows-based Thunderbolt 3 laptops.
Display & Resolution Specs:
Quad 4K DisplayPort | Up to 3840 x 2160p @ 60Hz Quad 4K HDMI | Up to 3840 x 2160p @ 60Hz Quad 4K (Mix of DP & HDMI) | Up to 3840 x 2160p @ 60Hz Dual 5K DisplayPort* | Up to 5120 × 2880 Single 5K DisplayPort* | Up to 5120 × 2880 + Dual 4K HDMI/DisplayPort | Up to 3840 x 2160p @ 60Hz
*Requires monitor support for 5K and uses two DP ports for one 5K display connection
Power & Charge with 100W Power Delivery
Power and charge USB-C/Thunderbolt 3 workstation laptops & ultrabooks with 100 watt PD. Higher power delivery, more than other USB-C 10Gbps quad monitor docks.
Charge smartphones and other high powered devices with two downstream front-facing charging ports with BC 1.2 for USB-A and USB-C devices. Fast-charge ports support always-on charging so devices will charge whether or not a host laptop is connected.
Plenty of Downstream USB Ports
This USB-C Gen 2 docking station features 4 downstream USB ports in total to connect USB peripherals.
1x USB-C 3.2 Gen 2 (10 Gbps | 15W/3A)
1x USB-A 3.2 Gen 1 (5 Gbps | 7.5W/1.5A)
2x USB-A 3.2 Gen 1 (5 Gbps | 4.5W/0.9A)
Also included, is a gigabit Ethernet port with PXE Boot and WoL support, as well as 4-position TRRS stereo audio headset/mic port.
Additional Security Features
This USB-C docking station comes with plenty of security features a K-slot for a Kensington style laptop lock and holes to mount the dock on the desk or wall and includes a USB-IF Certified 1m USB-C cable.
Extra Ventilation
USB-C dock features optimized ventilation on both ends and bottom side of dock to provide cooling support to higher temperature thermals that can be generated by high performance video/graphics applications and multiple 4K 60Hz video outputs.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
Advanced Windows Layout Utility: To setup and save custom windows layouts.
Mac Address Pass-Through Utility: To improve network security.
USB Event Monitoring Utility: To track and log connected USB devices
Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
HDMI & DisplayPort for Four Monitor Outputs
This USB-C Gen 2 docking station with DP 1.2 and HDMI 2.0 HDR support, is a perfect choice for dual, triple, or quad monitor setup, supporting up to quad 4K 60Hz display output, with any combination of four DisplayPort or HDMI video interfaces, on USB-C Gen 2 laptops, MacBooks (including M1 based systems) and Windows-based Thunderbolt 3 laptops.
Display & Resolution Specs:
Quad 4K DisplayPort | Up to 3840 x 2160p @ 60Hz Quad 4K HDMI | Up to 3840 x 2160p @ 60Hz Quad 4K (Mix of DP & HDMI) | Up to 3840 x 2160p @ 60Hz Dual 5K DisplayPort* | Up to 5120 × 2880 Single 5K DisplayPort* | Up to 5120 × 2880 + Dual 4K HDMI/DisplayPort | Up to 3840 x 2160p @ 60Hz
*Requires monitor support for 5K and uses two DP ports for one 5K display connection
Power & Charge with 100W Power Delivery
Power and charge USB-C/Thunderbolt 3 workstation laptops & ultrabooks with 100 watt PD. Higher power delivery, more than other USB-C 10Gbps quad monitor docks.
Charge smartphones and other high powered devices with two downstream front-facing charging ports with BC 1.2 for USB-A and USB-C devices. Fast-charge ports support always-on charging so devices will charge whether or not a host laptop is connected.
Plenty of Downstream USB Ports
This USB-C Gen 2 docking station features 4 downstream USB ports in total to connect USB peripherals.
1x USB-C 3.2 Gen 2 (10 Gbps | 15W/3A)
1x USB-A 3.2 Gen 1 (5 Gbps | 7.5W/1.5A)
2x USB-A 3.2 Gen 1 (5 Gbps | 4.5W/0.9A)
Also included, is a gigabit Ethernet port with PXE Boot and WoL support, as well as 4-position TRRS stereo audio headset/mic port.
Additional Security Features
This USB-C docking station comes with plenty of security features a K-slot for a Kensington style laptop lock and holes to mount the dock on the desk or wall and includes a USB-IF Certified 1m USB-C cable.
Extra Ventilation
USB-C dock features optimized ventilation on both ends and bottom side of dock to provide cooling support to higher temperature thermals that can be generated by high performance video/graphics applications and multiple 4K 60Hz video outputs.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
Advanced Windows Layout Utility: To setup and save custom windows layouts.
Mac Address Pass-Through Utility: To improve network security.
USB Event Monitoring Utility: To track and log connected USB devices
Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
- QUAD MONITOR USB-C DOCK: USB Type-C dock supports up to four (4K 60Hz) monitors, including quad, triple or dual extended displays, using any combo of 4x DisplayPort (DP) and/or 4x HDMI 2.0 outputs or Dual 5K 60Hz (2x DP per display); 100W Power Delivery
- COMPATIBILITY: Supports Windows, macOS, ChromeOS, Linux and hardware platforms including Intel, AMD and the Apple M-Series, enabling four external displays even on laptops that natively only support one; Driver installation required on Windows and macOS
- INCREASE PRODUCTIVITY: DisplayLink Certified dock with 4-port USB hub includes 3x USB-A 5Gbps (1x fast-charge 1.5A), 1x USB-C up to 10Gbps (15W 3A smartphone/tablet charging) port, Gigabit Ethernet (PXE Boot & WoL), and a 3.5mm TRRS audio headset/mic jack
- EASY SETUP & MANAGEMENT: Quadruple display docking station with 3.3ft (1m) USB-C host cable (USB-IF certified), front On/Off button, K-slot & mounting holes, ; optimized ventilation for enhanced cooling
- OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with Network MAC Address Pass-Through for network security, WiFi Auto Switching for improved network performance, USB Event Monitoring, and Windows Layout
- Wired connectivity technology allows convenient and reliable connectivity for maximum efficiency
- USB Type C host interface allows powerful and efficient transfer of data with maximum productivity
- Monitor device supported according to your requirements with maximum productivity
- Gigabit Ethernet Ethernet technology for a reliable, convenient way of communication and connectivity
- The HDMI supports digital audio/video output to a wide assortment of HD gadgets
- 4 USB ports offers a more refined structure and safer to use connectivity
- Wired connectivity technology is highly feasible, offers maximum usability
- USB Type C host interface Offers a more refined structure and safer to use connectivity
- Monitor device supported for your convenience and better usability
- Enjoy HD quality videos on your HDTV with the HDMI port facility
- 4 USB ports allows powerful and efficient transfer of data with maximum productivity
Loading...
Product Specifications
-
Audio Line OutYes
-
Brand NameStarTech.com
-
CompatibilityApple Macbook Pro Dell XPS15 HP Spectre x360 Microsoft Surface Laptop 4 Google Chromebooks Lenovo Notebook: X1 Carbon X1 Extreme G2
-
Connectivity TechnologyWired
-
Country of OriginThailand
-
Device SupportedMonitor Tablet Smartphone Notebook
-
DisplayPortYes
-
EU RoHS Declaration URLhttps://media.startech.com/cms/pdfs/dk31c4dppd_rohs.pdf
-
End of Life Manual AvailabilityYes
-
Environmental CertificationEU RoHS
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS) 2 Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Waste Electrical and Electronic Equipment Directive (WEEE)
-
Environmentally FriendlyYes
-
Ethernet TechnologyGigabit Ethernet
-
HDMIYes
-
Height1.80"
-
Host InterfaceUSB Type C
-
Kensington Security SlotYes
-
Limited Warranty3 Year
-
Manufacturer Part NumberDK31C4DPPD
-
Maximum Power Supply Wattage100 W
-
Network (RJ-45)Yes
-
Number of Displays Supported4
-
Number of HDMI Outputs4
-
Number of HDMI Ports4
-
Number of USB Type-A Ports3
-
Number of USB Type-C Ports1
-
Operating System SupportedWindows 10 (64-bit) Windows 11 (64-bit) Mac OS X 10.14 Mojave macOS 14 ChromeOS 61.x
-

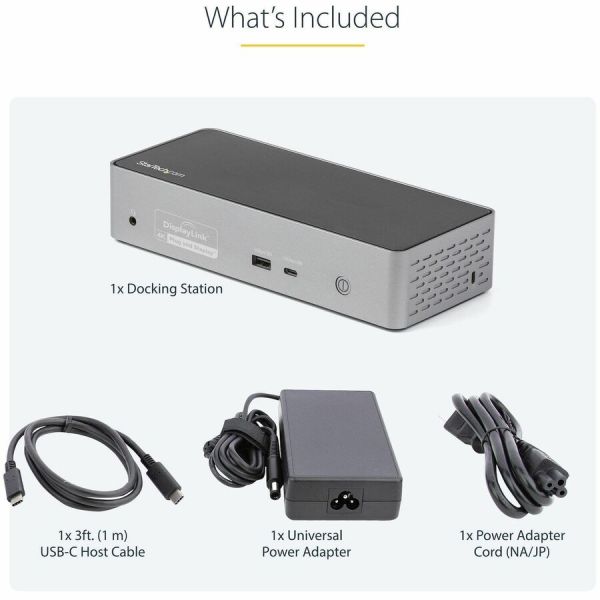

Package ContentsDocking Station Host Cable (1m) Universal Power Adapter User Manual Power Adapter Cords (NA/JP & AU)
-
Product NameDocking Station
-
Product TypeDocking Station
-
REACH Declaration URLhttps://media.startech.com/cms/pdfs/dk31c4dppd_rohs.pdf
-
REACH free of SVHCYes
-
Screen Mode Supported4K
-
Supported Resolutions3840 x 2160 5120 x 2880
-
ThunderboltNo
-
Total Number of USB Ports4
-
USB Type-AYes
-
WEEE Statementhttps://media.startech.com/cms/pdfs/dk31c4dppd_weee.pdf
-
Width3.50"
