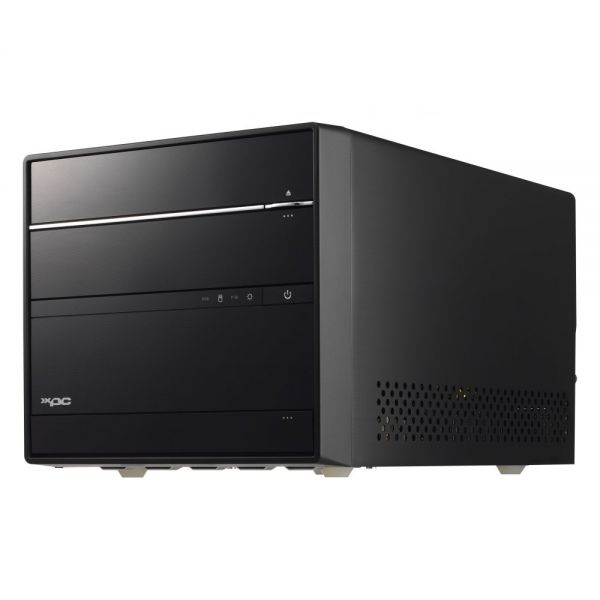

Shuttle XPC SH170R6 Barebone System Mini PC - Intel H170 Express Chipset - Socket H4 LGA-1151 - Black Aluminum

64 GB DDR4 SDRAM DDR4-2133/PC4-17000 Maximum RAM Support - Serial ATA/600 - Intel Integrated - 4 x Total Expansion Slots - HDMI - DisplayPort - Processor Support (Core i7, Core i5, Core i3, Pentium, Celeron) - Gigabit Ethernet - 8 USB 3.0 Port(s)300 W - View Complete Details

Product Number: SYNX4346560

0 star rating00 review|Write a Review

In Stock - Hurry, only 19 left.

Estimated Delivery - 5 business day(s) - Thu 10/27 6 business days - Fri 10/28

Free Shipping - This item qualifies for Free Shipping



You May Also Like

More like this

Product Details

Not Returnable

Due to its limited shelf life or other concerns, we do not accept returns on this product unless it is damaged, defective or incorrect due to an error on our part.

Shuttle XPC SH170R6 Barebone System Mini PC - Intel H170 Express Chipset - Socket H4 LGA-1151 - Black Aluminum - The high performance Mini PC with Intel® Skylake platform

The new Shuttle XPC SH170R6 supports Intel® Skylake platform technology. This new model packs Intel® the latest 6th generation LGA 1151 95W processor. With Core™ i3/i5/i7 processors built-in graphics core, the SH170R6 is able to support 4k/Ultra HD video playback. At back panel of SH170R6 provides one HDMI and two DisplayPort to support three independent screen displays. The SH170R6 features one PCI-E x16 slot and one PCI-E x4, allowing for installation of dual slot graphics cards, video surveillance cards, RAID cards, and more applications. It also features strong expandability with one M.2 and one half-size Mini PCIe slots support for M.2 SSD and a WiFi card or other compatible modules. Equipped with Shuttle's I.C.E 2™ cooling engine as well as 80 Plus Bronze certified with a 300W power supply, allows the SH170R6 to feature high energy efficiency and maintain high stability for long-term operation.

Support Intel® 6th generation Core™ processor

Equipped with the new LGA 1151 socket, the SH170R6 supports Intel® 6th generation (Skylake) Core™ i3/i5/i7, Pentium®, and Celeron® 95W processors. Built-in DirectX 12 compatible with the Intel® HD Graphics, it is significantly increased CPU or GPU performance.

Equipped with Intel® 100 series Chipset

The SH170R6 is equipped with Intel® H170 chipset and supports dual-channel DDR4 2133 with the maximum memory capacity of up to 64GB (16GBx4). Able to support Gigabit LAN, SATA 6Gbps, and USB3.0 high-speed storage interfaces, providing superb data transfer speed.

Integrated Cooling Engine 2 (ICE 2) Heat pipe technology

Shuttle XPC features stable, cool, and silent operation with Shuttle's ICE 2 heat pipe technology. It uses convection cooling to dissipate heat away from the CPU. The ICE2 copper tubes, coated in nickel for enhanced tube hardness and rust-proof protection, are filled with distilled water to effectively channel heat and provide highly efficient processor and chassis cooling.

Support PCI-E expansion cards

The SH170R6 provides one PCI-Ex16 and one PCI-Ex4 slot to meet various needs of users. Select the card you want to use, such as multi-display graphic cards, monitor cards, RAID cards, and professional sound cards, etc.

M.2 & Mini PCIe expansion slots

The SH170R6 is built-in one M.2 2280 with type M and one half-size Mini PCIe slots to install M.2 SSD and a WiFi card, or other compatible device, providing a strong expansion capability.

Support 4K Ultra HD

The SH170R6 provides DisplayPort and HDMI video outputs to support 4K Ultra HD (3840x2160). With four times the resolution of Full HD, viewers can enjoy super detailed and crystal clear imaging of 4K.
*Intel® Pentium® and Celeron® processors built-in Intel® HD graphics cannot support 4K video playback capability.

80Plus Bronze Certified 300W Power Supply

Shuttle's SH170R6 is equipped with an 80 Plus Bronze 300W power supply for guaranteed energy efficiency and energy saving. Shuttle's 300W power supply cuts down on unnecessary power consumption for a higher level of energy saving.

Multiple Operating System Support

-Windows 7

-Windows 8.1

-Windows 10
