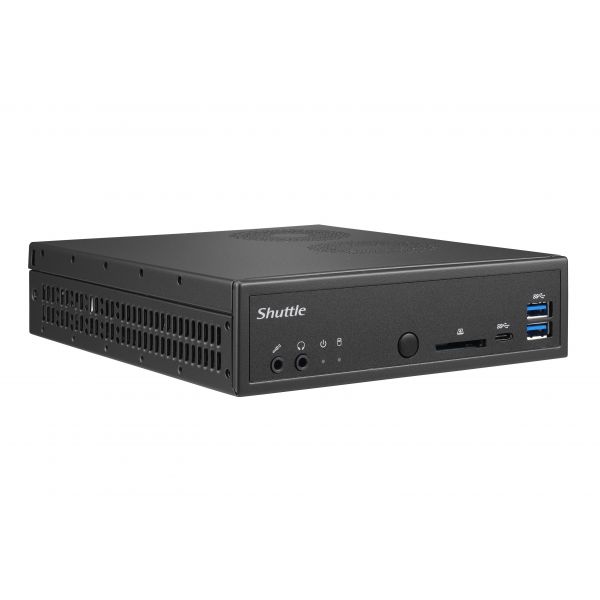

Shuttle XPC slim DH270 Barebone System Slim PC - Intel H270 Chipset - Socket H4 LGA-1151 - 1 x Processor Support

32 GB DDR4 SDRAM DDR4-2400/PC4-19200 Maximum RAM Support - Serial ATA/600 - Intel HD Graphics Integrated - 1 x Total Bays - 1 2.5" Bay(s) - Processor Support (Core i7, Core i3, Core i5, Celeron, Pentium) - Gigabit Ethernet - 3 USB 3.0 Port(s)90 W
Product Number: SYNX5146653
  • Intel Core i7 processor provides lightning fast speed and peak performance even for toughest tasks and intensive games
  • DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
  • Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
  • With 7 USB ports, connect/disconnect devices while not having to shut down the system
More details
$276.54
Free Shipping Estimated Delivery
Favorite
Compare
Request Quote

Product Description

Shuttle XPC slim DH270 Barebone System Slim PC - Intel H270 Chipset - Socket H4 LGA-1151 - 1 x Processor Support - Rugged and powerful enough to drive even up to three 4K displays

Geared towards large and high-resolution signage application, the Shuttle XPC DH270 XPC slim, is based on the IntelH270 chipset, supports LGA 1151 Intel6th/7th generation Core i 65W processors. With integrated Intel HD graphics, the DH270 can support 4K/UHD video playback on up to three screens via three HDMI outputs. In addition it supports DDR4-2133/2400 memory, as well as Intel Optane technology improve on processing and data transfer speed and agility. The DH270 provides multiple I/O and high-speed storage interfaces, including USB 2.0, USB 3.0, SATA 6Gbps, RS232/422/485, M.2 type M and A/E, and Mini PCIe. Thanks to Shuttle's exclusive heat-pipe cooling with smart fan, the DH270 is capable of long-term operation at high stability and reliability levels Its slim 43mm design and VESA support to makes it easy to integrate in diverse commercial environments.
Supports Intel 6th /7th Generation Core Processor
Based on socket LGA 1151, the all-new DH270 supports both Intel 6th/ 7th Generation (Skylake/Kaby Lake) Core i3/i5/i7, Pentium, and Celeron 65W processors. The built-in DirectX 12 compatibility with Intel HD Graphics significantly increases CPU and GPU performance.
Intel Optane Technology
With a 7th Gen Intel Core processor, the DH270 supports the latest Intel Optane technology which makes your overall system performance up to 28% faster.
Triple Display Support
Spread your content across three screens via HDMI outputs. You can smoothly convey dynamic high-resolution information and target promotions at your audience.
High-speed data transmission interface
The DH270 features native SATA 6Gbps, two USB 3.0 and one USB 3.0 Type-C interface. No more figuring out the right way of plugging in a USB device, USB 3.0 Type-C could be easier to use and is able to increase data transfer speed too.
Heat-pipe cooling technology
The DH270 features Shuttle's exclusive heat-pipe cooling module with smart fan design. The clever ventilation design allows for constant air circulation between the inside and outside of the machine resulting in high stability and low noise for long-term operation.
Supports Intel Dual Gigabit LAN
The DH270 has built-in Intel Dual Gigabit LAN, supports Wake on LAN and Teaming Mode function to provide high-speed data transfer capability and thus a better business networking integration.
24/7 Nonstop Operation
The DH270 is officially approved for 24/7 permanent operation while maintaining. Shuttle's low-power consumption design. Highly reliable and long-term operation is essential for digital signage and other vertical applications.
Operating System support-Windows 10 64bit
-Windows 7 32/64bit (Skylake only)
-Linux
IntelH200 Series Chipset
With the integrated Intel H270 chipset, the DH270 supports dual channel DDR4 2400 SO-DIMM memory up to 32GB (2x16GB). It also comes with Intel Gigabit LAN, SATA 6Gbps and USB3.0 interfaces for superb data transfer speed.
Supports 4K Ultra HD
The DH270 supports playback of 4K high resolution (3840x2160) content via HDMI 2.0. At four times higher resolution as the Full HD standard, viewers will enjoy detail-rich and crystal clear images.
Supports two M.2 expansion slots
The DH270 has one built-in M.2 2280/2260/2242 Type M and one M.2 2230 Type A/E slot for an M.2 SSD and a WiFi card or other compatible devices.

  • Intel Core i7 processor provides lightning fast speed and peak performance even for toughest tasks and intensive games
  • DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
  • Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
  • With 7 USB ports, connect/disconnect devices while not having to shut down the system
  • With Serial ATA/600 interface get superb reliability and high-speed data transfer

Product Specifications

  • 64-bit Processing
    Yes
  • Brand Name
    Shuttle
  • Chipset Manufacturer
    Intel
  • Chipset Model
    H270
  • Controller Type
    Serial ATA/600
  • Depth
    7.5"
  • Ethernet Technology
    Gigabit Ethernet
  • Form Factor
    Slim PC
  • Graphics Controller Manufacturer
    Intel
  • Graphics Controller Model
    HD Graphics
  • Height
    1.7"
  • Input Voltage
    120 V AC 230 V AC
  • Limited Warranty
    1 Year
  • Manufacturer Part Number
    DH270
  • Maximum Memory
    32 GB
  • Maximum Power Supply Wattage
    90 W
  • Memory Standard
    DDR4-2400/PC4-19200
  • Memory Technology
    DDR4 SDRAM
  • Number of Internal 2.5" Bays
    1
  • Number of Processors Supported
    1
  • Number of SATA Interfaces
    1
  • Number of Total Expansion Bays
    1
  • Number of Total Memory Slots
    2
  • Number of USB 3.0 Ports
    3
  • Operating System Supported
    Linux Windows 10 Windows 7 Windows 7 x64
  • Package Contents
    XPC slim DH270 Barebone System Quick Guide Driver DVD 90W Power Adapter HDD Screw Pack Power Cord Thermal Grease VESA Mount VESA Screw Pack
  • Processor Socket
    Socket H4 LGA-1151
  • Processor Supported
    Celeron Core i3 Core i5 Core i7 Pentium
  • Product Line
    XPC slim
  • Product Model
    DH270
  • Product Name
    XPC slim DH270 Barebone System
  • Product Type
    Barebone System
  • Total Number of USB Ports
    7
  • Width
    6.5"
