Asus WS C246 PRO Workstation Motherboard - Intel Chipset - Socket H4 LGA-1151

64 GB DDR4 SDRAM Maximum RAM - UDIMM, DIMM - 4 x Memory Slots - Gigabit Ethernet - 4 x USB 3.0 Port - 2 x USB 3.1 Port - HDMI - DVI - 8 x SATA Interfaces
Product Number: IGRM5PL917
  • Compatible Intel Core i3 processor is smart and responsive, which lets you use multiple applications without any lag
  • DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
  • With 4 USB 3.0 port(s), data can be moved from your workstation to your device in fragments of a second
  • HDMI interface connects the top of the line PCs, Blu-ray players, and cutting edge Gaming Controllers
More details
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items below to see if a replacement product is available.

Product Description

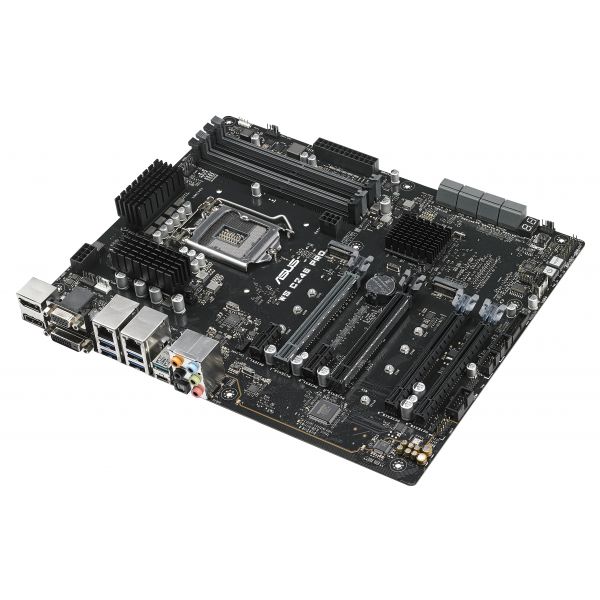

Asus WS C246 PRO Workstation Motherboard - Intel Chipset - Socket H4 LGA-1151 - ASUS WS C246 PRO LGA1151 ECC DDR4 M.2 C246 Server Workstation ATX Motherboard for 8th Generation Intel Core and Intel Xeon E-Series Processors with SafeSlot, Dual Gigabit LAN and USB 3.1 Type A / C
Designed for 8th generation LGA1151 socket Intel Core and Intel Xeon E-Series Processors featuring dual M.2, front panel USB 3.1 Gen2, Dual Intel Gigabit LAN, support for ECC DDR4, and Intel Optane Memory compatibility
Patent-pending SafeSlot features an injection molding process that integrates metal framing for stronger, firmly anchored PCIe slots built for heavyweight GPUs, ideal for supporting 3-Way AMD CrossfireX
Supports up to three independent displays simultaneously for better multitasking and enhanced productivity
8-channel HD audio enhanced by ASUS exclusive Realtek ALC887 high definition audio CODEC
Complete IT Infrastructure Management with in-band ASUS Control Center providing a complete server management solution reducing IT operating costs with features like remote BIOS updating, monitoring multiple systems via mobile device, and one-click software updates/dispatching
Four PCIe 3.0 x16 slots for flexible expandability with add-on cards
WS C246 PRO features four PCIe x16 slots for flexible system configurability and expandability with add-on cards, such as NVIDIA Quadro graphics, RAID and LAN cards. With support for AMD CrossFireX 3-way configurations, WS C246 PRO harnesses the full power of the latest graphics technologies.
Powerful performance with Intel Xeon E processor and ECC memory
WS C246 PRO supports Intel Xeon E series processors to deliver powerful, optimized performance in always-on usage scenarios. Support for Error-Correcting Code (ECC) memory enables automatic detection and repair of single-bit memory errors, reducing the chance of system crashes and data corruption to ensure reliable and responsive workstation performance.
Supports up to three independent displays simultaneously
WS C246 PRO is equipped for total display flexibility with onboard HDMI, DisplayPort, DVI-D and VGA connectivity. With a compatible latest-generation Intel processor, you can connect up to three independent displays simultaneously for better multitasking and enhanced productivity.
Dual M.2 for up to 32Gbps performance and data redundancy
WS C246 PRO features dual M.2 slots to unleash maximum data-transfer performance. One M.2 slot supports up to 22110-length M.2 drives via PCIe Gen3 x4 for ultrafast data access, making it the perfect choice for an operating system or application drive. The other M.2 slot is suitable for SATA drives or Intel Optane memory via PCIe Gen3 x2 support to speed up traditional hard drives.
The latest 10Gb/s USB 3.1 for high transfer speed
WS C246 PRO's front panel USB 3.1 connector is ready for next-gen PC cases and devices. With backward-compatible USB 3.1 Gen 2 Type-A and reversible USB 3.1 Gen 2 Type-C ports, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps.
SafeSlot
ASUS SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance, which protect your graphics card investment. Manufactured in a single step using a new injection-molding process integrates the slot with the fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

  • Compatible Intel Core i3 processor is smart and responsive, which lets you use multiple applications without any lag
  • DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
  • With 4 USB 3.0 port(s), data can be moved from your workstation to your device in fragments of a second
  • HDMI interface connects the top of the line PCs, Blu-ray players, and cutting edge Gaming Controllers
  • DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
  • Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX workstation motherboard
 Need more information? Ask a Question

Product Specifications

  • Audio Channels
    7.1
  • Brand Name
    Asus
  • Chipset Manufacturer
    Intel
  • Controller Type
    Serial ATA/600
  • Country of Origin
    China
  • Depth
    9.6"
  • DisplayPort
    Yes
  • DVI
    Yes
  • Environmental Certification
    RoHS
  • Environmentally Friendly
    Yes
  • Form Factor
    ATX
  • Gigabit Ethernet
    Yes
  • HDMI
    Yes
  • Intel Optane Memory Ready
    Yes
  • Manufacturer Part Number
    WS C246 PRO
  • Maximum Memory
    64 GB
  • Memory Form Factor
    DIMM UDIMM
  • Memory Technology
    DDR4 SDRAM
  • Number of Memory Slots
    4
  • Number of Onboard USB 3.0 Ports
    2
  • Number of PCI Express x1 Slots
    2
  • Number of PCI Express x16 Slots
    4
  • Number of SATA Interfaces
    8
  • Number of Total Expansion Slots
    6
  • Number of USB 3.0 Ports
    4
  • Onboard S/PDIF Header
    Yes
  • Onboard Video
    CPU Dependent Video
  • Processor Socket
    Socket H4 LGA-1151
  • Processor Supported
    Celeron Core i3 Core i5 Core i7 Pentium Xeon
  • Product Model
    WS C246 PRO
  • Product Name
    WS C246 PRO Workstation Motherboard
  • Product Type
    Workstation Motherboard
  • Total Number of Onboard USB Ports
    6
  • Total Number of PCI Express Slots
    6
  • Total Number of USB Ports
    6
  • Total Processor Supported
    1
  • VGA
    Yes
  • Width
    12"
