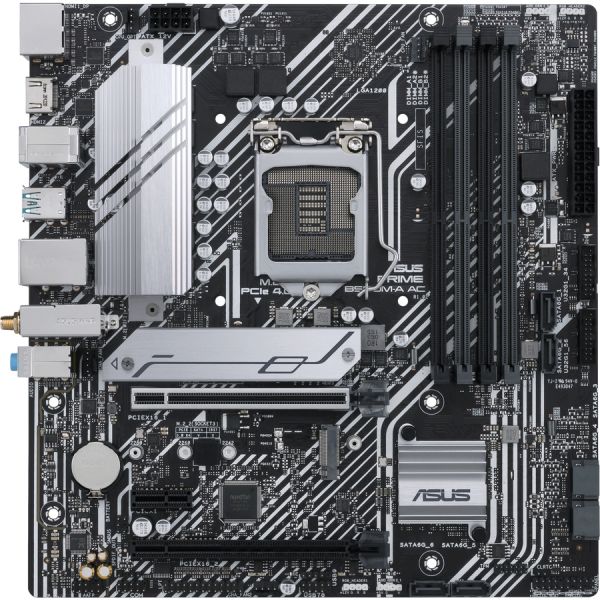

Asus Prime B560M-A AC Desktop Motherboard - Intel B560 Chipset - Socket LGA-1200 - Intel Optane Memory Ready - Micro ATX
Product #:
ETLZ1069674037
+9View All
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description
Asus Prime B560M-A AC Desktop Motherboard - Intel B560 Chipset - Socket LGA-1200 - Intel Optane Memory Ready - Micro ATX
Pentium Gold, Celeron, Core i5, Core i7, Core i9, Core i3 Processor Supported DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11a/b/g/n/ac - HDMI - DisplayPort - 6 x SATA Interfaces
Intel B560 (LGA 1200), PCIe 4.0,two M.2 slots, 8 power stages, Intel 1 Gb Ethernet, DisplayPort, dual HDMI, rear USB 3.2 Gen 2 Type-C, V-M.2 Key E slot for Wi-Fi , Aura Sync, Addressable RGB, mATX motherboard
Intel LGA 1200 socket: Ready for 11th Gen Intel Core processors
Enhanced power solution: 8 power stages, alloy chokes and durable capacitors for stable power delivery
Comprehensive cooling: Stronger VRM heatsink, flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
Memory overclocking: Support memory overclocking up to 5000 MHz
ASUS OptiMem II: Careful routing for significantly reducing crosstalk, preserving signal integrity for improved memory stability
Ultrafast connectivity: PCIe 4.0, Intel 1 Gb Ethernet, rear USB 3.2 Gen 2 (Type-A &Type-C) and V-M.2 Key E slot for Wi-Fi
PRIME
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 10th and 11th Generation Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B560M-A provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.ASUS Prime B560M-A is perfect for those seeking to create a sleek, futuristic-looking build, thanks to its black and white finish and iridescent metallic nameplate and PCB cover.
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
ASUS Control Center Express
ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.
Optimize IT endpoint management
Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely
Automate IT maintenance
Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility
Securely manage all of endpoints
Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices
Tune It Your Way
Comprehensive controls form the foundation of the ASUS Prime series. The Prime B560 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work - maximizing your productivity.
Cool to the Core
Prime B560 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
M.2 Heatsink
Flexible M.2 heatsink takes care of two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfer.
Intel LGA 1200 socket: Ready for 11th Gen Intel Core processors
Enhanced power solution: 8 power stages, alloy chokes and durable capacitors for stable power delivery
Comprehensive cooling: Stronger VRM heatsink, flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
Memory overclocking: Support memory overclocking up to 5000 MHz
ASUS OptiMem II: Careful routing for significantly reducing crosstalk, preserving signal integrity for improved memory stability
Ultrafast connectivity: PCIe 4.0, Intel 1 Gb Ethernet, rear USB 3.2 Gen 2 (Type-A &Type-C) and V-M.2 Key E slot for Wi-Fi
PRIME
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 10th and 11th Generation Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B560M-A provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.ASUS Prime B560M-A is perfect for those seeking to create a sleek, futuristic-looking build, thanks to its black and white finish and iridescent metallic nameplate and PCB cover.
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
ASUS Control Center Express
ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.
Optimize IT endpoint management
Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely
Automate IT maintenance
Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility
Securely manage all of endpoints
Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices
Tune It Your Way
Comprehensive controls form the foundation of the ASUS Prime series. The Prime B560 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work - maximizing your productivity.
Cool to the Core
Prime B560 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
M.2 Heatsink
Flexible M.2 heatsink takes care of two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfer.
- Pentium Gold processors supported for faster, dependable performance and better access to data and information
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- Enjoy the freedom of Wi-Fi and connect devices faster
- DisplayPort host interface lets you conveniently connect multiple monitors to increase productivity
- Micro ATX form factor for your accessibility convenience and simplicity of usage for Desktop Motherboard
- With 4 USB 2.0 ports, transfer several documents without error
Product Specifications
-
Audio Channels7.1
-
BluetoothYes
-
Brand NameAsus
-
Chipset ManufacturerIntel
-
Chipset ModelB560
-
Controller TypeSerial ATA/600
-
Depth9.2"
-
DisplayPortYes
-
Environmentally FriendlyYes
-
Form FactorMicro ATX
-
Gigabit EthernetYes
-
HDMIYes
-
Intel Optane Memory ReadyYes
-
Intel RSTYes
-
Limited Warranty3 Year
-
Manufacturer Part NumberPRIME B560M-A AC
-
Memory Form FactorDIMM UDIMM
-
Memory TechnologyDDR4 SDRAM
-
Number of Memory Slots4
-
Number of Network (RJ-45) Ports1
-
Number of Onboard USB 2.0 Ports3
-
Number of Onboard USB 3.2 Ports4
-
Number of PCI Express x1 Slots1
-
Number of PCI Express x16 Slots2
-
Number of SATA Interfaces6
-
Number of Total Expansion Slots3
-
Number of USB 2.0 Ports4
-
Number of USB 3.2 Gen 2 Type-A Ports1
-
Number of USB 3.2 Ports1
-
Onboard VideoCPU Dependent Video
-
Package ContentsPrime B560M-A AC Desktop Motherboard 2 x SATA 6Gb/s cables 1 x M.2 Rubber Package(s) 1 x M.2 SSD screw package(s) 1 x ASUS Wi-Fi moving antennas 1 x Support DVD 1 x User manual
-
Processor SocketSocket LGA-1200
-
Processor SupportedCeleron Core i3 Core i5 Core i7 Core i9 Pentium Gold
-
Product LinePrime
-
Product ModelB560M-A AC
-
Product NamePrime B560M-A AC Desktop Motherboard
-
Product TypeDesktop Motherboard
-
Total Number of Onboard USB Ports7
-
Total Number of PCI Express Slots3
-
Total Number of USB Ports6
-
Total Processor Supported1
-
Width9.6"
-
Wireless LANYes
-
Wireless LAN StandardIEEE 802.11a/b/g/n/ac
