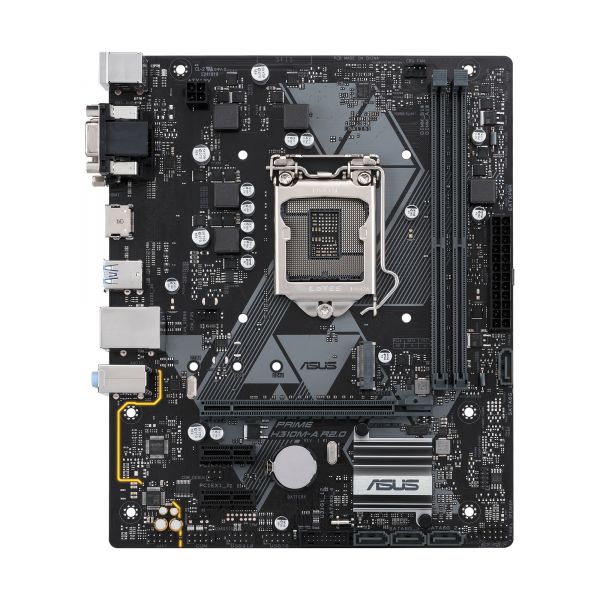

Asus Prime H310M-A R2.0/CSM Desktop Motherboard - Intel H310 Chipset - Socket H4 LGA-1151 - Micro ATX

Core i7 Processor Supported - 32 GB DDR4 SDRAM Maximum RAM - UDIMM, DIMM - 2 x Memory Slots - Gigabit Ethernet - HDMI - 4 x SATA Interfaces
Product Number: IGRM5TF462
  • Compatible Intel Core i3 processor is smart and responsive, which lets you use multiple applications without any lag
  • DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
  • Micro ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
More details
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

Asus Prime H310M-A R2.0/CSM Desktop Motherboard - Intel H310 Chipset - Socket H4 LGA-1151 - Micro ATX - Intel LGA-1151 mATX motherboard, DDR4 2666MHz, SATA 6Gbps and USB 3.1 Gen 1
ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability.
Fan Xpert: Flexible controls for ultimate cooling and quietness, plus GPU-temperature sensing for cooler gaming.
5X Protection III: Multiple hardware safeguards for all-round protection.
PRIME

ASUS Prime 300 Series motherboards provide the solid foundation needed for your first build, plus flexibility to grow with your ambitions. We've melded all the good stuff that's packed into the latest 8th Generation Intel Core processors with essential ASUS design and engineering, so you benefit from industry-leading technologies - including automated system tuning, comprehensive cooling controls, and immersive onboard audio. When you build with an ASUS Prime 300 Series motherboard, you build smart, easy and affordably.
Tune it your way
Improved DDR4 stability
ASUS OptiMem preserves memory signal integrity by routing traces and vias to the optimal PCB layer, and our T-Topology trace layout ensures time-aligned signaling by balancing trace lengths between memory slots. These enhancements allow the Prime 300 Series to support a wide range of dual and quad-DIMM memory kits, while providing your rig with the stability it needs to deal with any type of workload - whether you're gaming or running intensive applications
Cooler by design
Prime 300 Series features the most comprehensive cooling controls ever, configurable via ASUS Fan Xpert software or the UEFI BIOS.
Multiple temperature sources
Each header can be set to monitor and react to up to three thermal sensors. Via Fan Xpert, you can also assign a sensor to monitor the temperature of supported ASUS graphics cards to ensure optimal cooling during GPU- or CPU-intensive workloads.
4-pin PWM/DC fan
Each onboard CHA FAN header supports PWM and DC mode.
Media-acclaimed UEFI BIOS
The UEFI BIOS is an early waypoint on any PC-building journey, and Prime 300 Series has one of the best in the business.
Q-Fan Control Can configure the fan's operating speed manually, or use the easy pre-configured fan profiles to select Standard, Silent, Turbo or Full Speed modes, plus automatic switch to full speed if the temperature hits 75°C.
EZ mode
Intuitive graphical fan control
Fine-tune individual fans simply by dragging a curve with the mouse.
SATA Information:
Display SATA port details that help you easily recognize drives.
Fast Clock Adjustment:
Use mouse controls to change the time and date.
Advanced mode
My Favorites
Quickly find tuning options and add preferred tools to the list.
User Profile
Save BIOS settings for migration to new BIOS version or system.
SATA Port Renaming:
Rename SATA ports for easy identification.
Ultrafast connectivity
USB 3.1 Gen 1 front-panel connector
Future-proof connectivity
USB 3.1 Gen 1 is right where you need it, with two super-speed headers for the front panel. Experience data-transfer speeds up to 10X faster than USB 2.0 with instant plug-and-play connectivity, and avoid back-breaking contortions in the hunt for hard-to-reach rear ports.

  • Compatible Intel Core i3 processor is smart and responsive, which lets you use multiple applications without any lag
  • DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
  • Micro ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
Related Articles
 Need more information? Ask a Question

Product Specifications

  • Audio Channels
    7.1
  • Brand Name
    Asus
  • Chipset Manufacturer
    Intel
  • Chipset Model
    H310
  • Controller Type
    Serial ATA/600
  • Country of Origin
    China
  • DVI
    Yes
  • Depth
    7.3"
  • Environmental Certification
    RoHS
  • Environmentally Friendly
    Yes
  • Form Factor
    Micro ATX
  • Gigabit Ethernet
    Yes
  • HDMI
    Yes
  • Limited Warranty
    3 Year
  • Manufacturer Part Number
    Prime H310M-A R2.0/CSM
  • Maximum Memory Supported
    32 GB
  • Memory Form Factor
    DIMM UDIMM
  • Memory Technology
    DDR4 SDRAM
  • Number of Memory Slots
    2
  • Number of PCI Express x1 Slots
    2
  • Number of PCI Express x16 Slots
    1
  • Number of SATA Interfaces
    4
  • Number of Total Expansion Slots
    3
  • Onboard S/PDIF Header
    Yes
  • Onboard Video
    CPU Dependent Video
  • Processor Socket
    Socket H4 LGA-1151
  • Processor Supported
    Celeron Core i3 Core i5 Core i7 Pentium
  • Product Line
    Prime
  • Product Model
    H310M-A R2.0/CSM
  • Product Name
    Prime H310M-A R2.0/CSM Desktop Motherboard
  • Product Series
    300
  • Product Type
    Desktop Motherboard
  • Total Number of Onboard USB Ports
    6
  • Total Number of PCI Express Slots
    3
  • Total Number of USB Ports
    4
  • Total Processor Supported
    1
  • VGA
    Yes
  • Width
    8.9"
