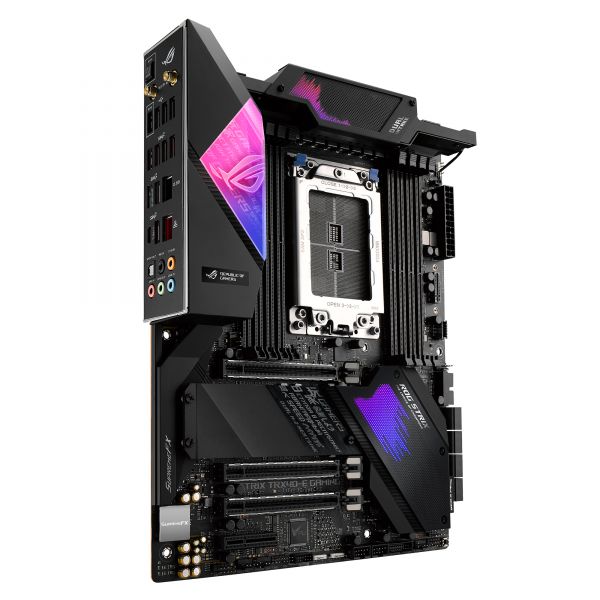

Asus ROG Strix TRX40-E Gaming Desktop Motherboard - AMD Chipset - Socket sTRX4

256 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 8 x Memory Slots - Gigabit Ethernet - Wireless LAN - IEEE 802.11ax - 7 x USB 3.1 Port - 2 x RJ-45 - 8 x SATA Interfaces
Product Number: IGRM6KK109
  • Compatible Ryzen Threadripper processor lets you perform all your computational tasks at a swift pace
  • DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
  • Supported 0 RAID levels provide data reliability and fault tolerance
  • Enjoy the freedom of Wi-Fi and connect devices faster
More details
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items below to see if a replacement product is available.

Product Description

Asus ROG Strix TRX40-E Gaming Desktop Motherboard - AMD Chipset - Socket sTRX4 - AMD TRX40 ATX motherboard sTR4 for 3rd Gen AMD Ryzen Threadripper series processors, with 16 power stages, on-board Wi-Fi 6 (802.11ax), 2.5 Gbps LAN, USB 3.2 Gen 2, SATA, three M.2, OLED and Aura Sync RGB lighting
Ready for the latest 3rd Gen AMD Ryzen Threadripper series processors to maximize connectivity and speed with up to three M.2 drives, USB 3.2 Gen 2.
Unmatched personalization: OLED and Aura Sync RGB lighting, including RGB headers and addressable Gen 2 RGB headers
Optimal Power Solution: 16 power stages with ProCool II power connector, high-quality chokes and durable capacitors to support multi-core processors
Comprehensive cooling: Active cooling VRM and Chipset heatsink, stacked-fin heatsink, with on-board dual M.2 heatsinks and a water pump+ header
Gaming connectivity: Three M.2, USB 3.2 Gen 2 Type-C port and Type-C front panel connector
Gaming networking: 2.5Gbps LAN and Intel Gigabit Ethernet with ASUS LANGuard, Wi-Fi 6 (802.11ax) with MU-MIMO, and gateway teaming via GameFirst V
Gaming audio: High fidelity audio with SupremeFX S1220, DTS Sound Unbound and Sonic Studio III to draw you deeper into the action
Easy DIY: ROG-patented pre-mounted I/O shield, Flexkey, ASUS SafeSlot, ASUS Node connector and BIOS FlashBack for a friendlier building experience
ROG Strix TRX40-E Gaming blends stunning gaming aesthetics with high-end desktop performance for do-it-all builds for users that like to work hard and play hard. A variety of design touches show off its cyberpunk origins, including a translucent I/O shroud glows under Aura lighting and a striking rainfall pattern on the VRM & chipset heatsinks. When it comes to performance, ROG Strix TRX40-E Gaming delivers with a wealth of ultrafast connectivity options, including three PCIe 4.0 M.2 slots, the latest 2.5G Ethernet and Wi-Fi 6 networking, and eight USB 3.2 Gen 2 ports.
SOLID HARDWARE SPECS
With comprehensive cooling options and robust power delivery to fuel CPUs with more cores, plus faster storage and memory, ROG Strix TRX40-E Gaming provides all the essentials you need to harness the full potential of components in your build for top-tier gaming performance.
GAMING ENHANCEMENT
ROG Strix TRX40-E Gaming is engineered with the latest connectivity for the best gaming experiences. Transfer files faster and banish lag as you secure more victories.
DESIGN & CUSTOMIZATION
A host of design touches, including a unique cyber-text pattern, plus customization options, comprehensive validation lists, and the most diverse ecosystem of components in the industry make building and personalizing a gaming rig with ROG Strix TRX40-E Gaming wonderfully easy.
TUNE YOUR RIG YOU WANT
The ROG Strix TRX40-E Gaming motherboard features firmware controls and software utilities designed for all skill levels, making setup, tuning and system maintenance simple. With options from overclocking and cooling to managing network performance and audio characteristics, you can configure your ROG Strix gaming build to perform the way you want.
THE POWER OF AMD
AMD TRX40 Chipset
The AMD TRX40 chipset delivers outstanding overclocking capabilities for the latest AMD Socket sTRX4 3rd Gen Ryzen Threadripper series processors. It provides PCIe 4.0 support, 10 Gbps USB 3.2 Gen 2 ports, and eight SATA 6 Gbps ports for faster data retrieval.

  • Compatible Ryzen Threadripper processor lets you perform all your computational tasks at a swift pace
  • DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
  • Supported 0 RAID levels provide data reliability and fault tolerance
  • Enjoy the freedom of Wi-Fi and connect devices faster
  • ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
  • 4 USB 2.0 ports offer the impressive data transfer speed of up to 60 Mb/sec
 Need more information? Ask a Question

Product Specifications

  • Bluetooth
    Yes
  • Brand Name
    Asus ROG
  • Chipset Manufacturer
    AMD
  • Controller Type
    Serial ATA/600
  • Depth
    9.6"
  • Environmental Certification
    RoHS WEEE
  • Environmentally Friendly
    Yes
  • Form Factor
    ATX
  • Gigabit Ethernet
    Yes
  • Limited Warranty
    3 Year
  • Manufacturer Part Number
    ROGSTRIXTRX40EGAMING
  • Maximum Memory
    256 GB
  • Memory Form Factor
    DIMM UDIMM
  • Memory Technology
    DDR4 SDRAM
  • Number of Memory Slots
    8
  • Number of Network (RJ-45) Ports
    2
  • Number of Onboard USB 2.0 Ports
    4
  • Number of Onboard USB 3.2 Ports
    5
  • Number of PCI Express x16 Slots
    3
  • Number of PCI Express x4 Slots
    1
  • Number of SATA Interfaces
    8
  • Number of Total Expansion Slots
    4
  • Number of USB 2.0 Ports
    4
  • Number of USB 3.2 Ports
    7
  • Onboard Video
    No
  • Processor Socket
    Socket sTRX4
  • Processor Supported
    Ryzen Threadripper
  • Product Line
    Strix
  • Product Model
    TRX40-E Gaming
  • Product Name
    ROG Strix TRX40-E Gaming Desktop Motherboard
  • Product Type
    Desktop Motherboard
  • RAID Levels
    0 1 10
  • RAID Supported
    Yes
  • S/PDIF
    Yes
  • Total Number of Onboard USB Ports
    9
  • Total Number of PCI Express Slots
    4
  • Total Number of USB Ports
    12
  • Total Processor Supported
    1
  • Width
    12"
  • Wireless LAN
    Yes
  • Wireless LAN Standard
    IEEE 802.11ax
