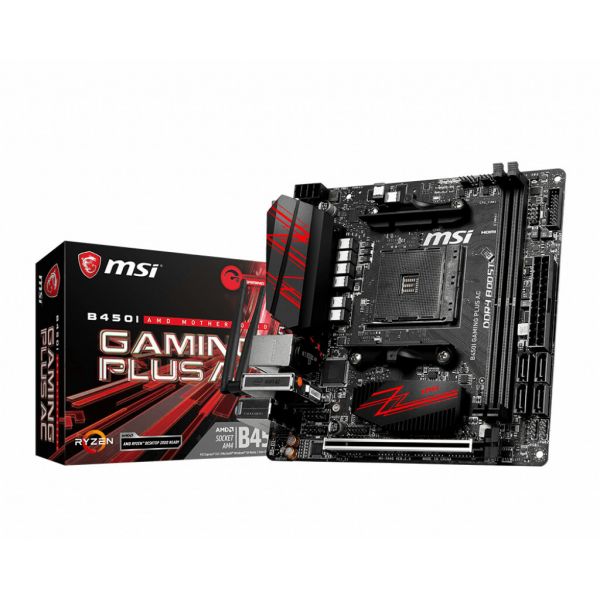

MSI B450I GAMING PLUS MAX WIFI Desktop Motherboard - AMD Chipset - Socket AM4 - Mini ITX
Ryzen 3 Processor Supported - 64 GB DDR4 SDRAM Maximum RAM - UDIMM, DIMM - 2 x Memory Slots - Gigabit Ethernet - IEEE 802.11ac - HDMI - DisplayPort - 4 x SATA Interfaces
Product Number:
SYNX5893116
- Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4
- Compatible Ryzen 3 processor lets you perform all your computational tasks at a swift pace
- Supports DDR4 Memory, up to 3466(OC) MHz
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description
MSI B450I GAMING PLUS MAX WIFI Desktop Motherboard - AMD Chipset - Socket AM4 - Mini ITX - MSI B450i lets you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you to check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. FULLY CONTROLLABLE IN BIOS AND SOFTWARE
- Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4
- Compatible Ryzen 3 processor lets you perform all your computational tasks at a swift pace
- Supports DDR4 Memory, up to 3466(OC) MHz
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- Intel Wireless support: delivers AC speeds up to 433Mbps with lower CPU loading and better long-term usage.
- RAID supported levels provide data reliability and fault tolerance
- Core Boost: With premium layout and digital power design to support more cores and provide better performance
- Mini ITX form Factor
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Mini ITX form factor builds a perfect symmetry of hardware components needed in media server or NAS box
- 2 USB 2.0 ports offer the impressive data transfer speed of up to 60 Mb/sec
Product Specifications
-
Audio Channels7.1
-
BluetoothYes
-
Brand NameMSI
-
Chipset ManufacturerAMD
-
Controller TypeSerial ATA/600
-
Country of OriginChina
-
Depth6.7"
-
DisplayPortYes
-
Form FactorMini ITX
-
Gigabit EthernetYes
-
HDMIYes
-
Limited Warranty3 Year
-
Manufacturer Part NumberB450IGPMAXWI
-
Maximum Memory Supported64 GB
-
Memory Form FactorDIMM UDIMM
-
Memory TechnologyDDR4 SDRAM
-
Number of Memory Slots2
-
Number of Network (RJ-45) Ports1
-
Number of Onboard USB 2.0 Ports2
-
Number of Onboard USB 3.2 Ports2
-
Number of PCI Express x1 Slots1
-
Number of SATA Interfaces4
-
Number of Total Expansion Slots1
-
Number of USB 2.0 Ports2
-
Number of USB 3.2 Ports4
-
Onboard VideoCPU Dependent Video
-
Package ContentsB450I GAMING PLUS MAX WIFI Desktop Motherboard User Manual Quick Installation Guide MSI Case Badge 2 x SATA Cables Wi-Fi Antenna Driver DVD I/O Sheilding MSI Product Catalog Product Registration Card
-
Processor SocketSocket AM4
-
Processor SupportedRyzen 3 Ryzen 5 Ryzen 7 Athlon
-
Product ModelB450I GAMING PLUS MAX WIFI
-
Product NameB450I GAMING PLUS MAX WIFI Desktop Motherboard
-
Product TypeDesktop Motherboard
-
RAID Levels0 1 10
-
RAID SupportedYes
-
Total Number of Onboard USB Ports4
-
Total Number of PCI Express Slots1
-
Total Number of USB Ports6
-
Total Processor Supported1
-
Width6.7"
-
Wireless LANYes
-
Wireless LAN StandardIEEE 802.11ac
