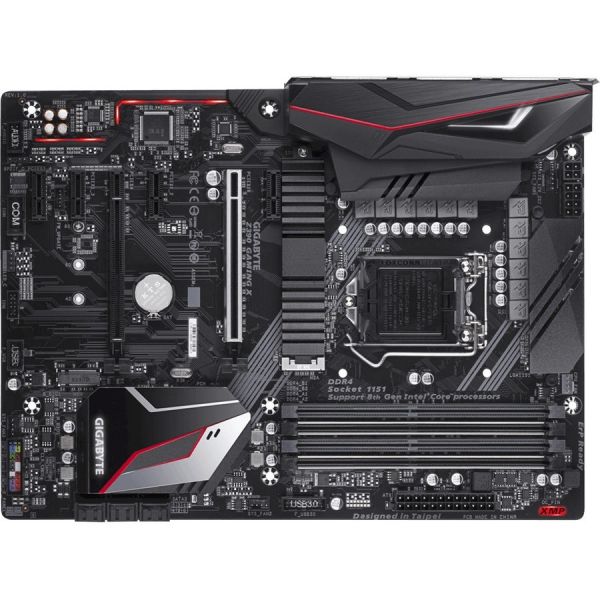

Gigabyte Ultra Durable Z390 GAMING X Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151

64 GB DDR4 SDRAM Maximum RAM - UDIMM, DIMM - 4 x Memory Slots - Gigabit Ethernet - 6 x USB 3.1 Port - HDMI - 6 x SATA Interfaces
Product Number: IGRM5NQ656
  • Experience responsive performance, power and adaptability with the compatible Intel Celeron processor
  • DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
  • Supported 0 RAID levels provide data reliability and fault tolerance
  • HDMI interface connects the top of the line PCs, Blu-ray players, and cutting edge Gaming Controllers
More details
$157.89
Free Shipping Estimated Delivery
Favorite
Compare
Request Quote

Product Description

Gigabyte Ultra Durable Z390 GAMING X Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151 - Intel Z390 GAMING Motherboard with 10+2 Digital PWM Design, 2-Way CrossFire Multi-Graphics, USB 3.1 Gen2 Type-A, M.2 Thermal Guard, Intel GbE LAN with cFosSpeed, Smart Fan 5, Dual M.2, Dual Armor with Ultra Durable Technology, DualBIOS, CEC 2019

Supports 9th and 8th Gen Intel Core Processors
Dual Channel Non-ECC Unbuffered DDR4
New 10+2 Phases Digital PWM Design
Dual Ultra-Fast M.2 with PCIe Gen3 X4 (1 with Thermal Guard) & SATA interface
2-Way CrossFire Multi-Graphics Support with PCIe Armor and Ultra Durable Design
Intel Native USB 3.1 Gen2 Type-A
Intel GbE LAN with cFosSpeed Internet Accelerator Software
Ultra Durable 25KV ESD and 15KV Surge LAN Protection
High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
Support RGB Lighting Effect in Full Colors
CEC 2019 Ready, Save Power With a Simple Click
Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
Lightning-Fast Intel Thunderbolt 3 AIC Support
Intel Optane Memory Ready
PERFORMANCE

10+2 Phases Digital VRM Design with Low RDS(on) MOSFET

Optimized for 8-Core Intel Core CPU
GIGABYTE GAMING series motherboards use a 10+2 phase PWM + Lower RDS(on) MOSFETs design to support the latest 8-Core Intel Core CPUs by offering incredible precision in delivering power to the motherboard's most power- hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
Benefits of Lower RDS(on) MOSFETs?
Optimized gate charge to minimize switching losses.
Lower temperature, smaller size, better thermal characteristics. Advanced Thermal Design

M.2 Thermal Guard

Cover with 110 M.2 Heatsinks keep SSD performance.

MOSFET Heatsinks
Multiple cuts on heatsinks improves thermal performance by increasing heat dissipation surface and maintain stylish aesthetic.
Thick Thermal Pad
Improved thickness of the thermal pad to 1.5mm, gives superior heat dissipation of MOSFETs.
Pre-installed I/O Shield

With an integrated I/O shield, building an GIGABYTE Ultra Durable PC is even easier.
Support for DDR4 to 4266MHz and Beyond

GIGABYTE is offering a tested and proven platform that ensures proper compatibility to 4266MHz and beyond.
2-Way CrossFire Multi-Graphics

Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

Immersive VR Gaming Experience
> VR requires more performance than Full HD graphics for a steady 90FPS or greater.
> Only Gaming PCs can provide the best VR experience.

Recommended configuration for VR Gaming PC
Graphics Card: NVIDIA GTX 1060 / AMD RX 480 or greater, Compatible HDMI 1.4 video output
CPU: Intel 8th Gen. Core i3 equivalent or greater
Motherboard: AORUS/GIGABYTE Z390 motherboards
Memory: 8GB RAM or greater
USB Ports: 3x USB 3.0 ports plus 1x USB 2.0 port or greater
OS: Windows 10 64-bit or newer

  • Experience responsive performance, power and adaptability with the compatible Intel Celeron processor
  • DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
  • Supported 0 RAID levels provide data reliability and fault tolerance
  • HDMI interface connects the top of the line PCs, Blu-ray players, and cutting edge Gaming Controllers
  • ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
GIGABYTE logo

Product Specifications

  • Audio Channels
    7.1
  • Brand Name
    Gigabyte
  • Chipset Manufacturer
    Intel
  • Controller Type
    Serial ATA/600
  • Depth
    8.9"
  • Form Factor
    ATX
  • Gigabit Ethernet
    Yes
  • HDMI
    Yes
  • Intel Optane Memory Ready
    Yes
  • Manufacturer Part Number
    Z390 GAMING X
  • Maximum Memory
    64 GB
  • Memory Form Factor
    DIMM UDIMM
  • Memory Technology
    DDR4 SDRAM
  • Number of Memory Slots
    4
  • Number of PCI Express x1 Slots
    4
  • Number of PCI Express x16 Slots
    2
  • Number of SATA Interfaces
    6
  • Number of Total Expansion Slots
    6
  • Onboard S/PDIF Header
    Yes
  • Onboard Video
    CPU Dependent Video
  • Processor Socket
    Socket H4 LGA-1151
  • Processor Supported
    Celeron Core i3 Core i5 Core i7 Core i9 Pentium
  • Product Line
    Ultra Durable
  • Product Model
    Z390 GAMING X
  • Product Name
    Ultra Durable Z390 GAMING X (Rev. 1.0) Desktop Motherboard
  • Product Type
    Desktop Motherboard
  • RAID Levels
    0 1 10 5
  • RAID Supported
    Yes
  • Total Number of Onboard USB Ports
    4
  • Total Number of PCI Express Slots
    6
  • Total Number of USB Ports
    8
  • Total Processor Supported
    1
  • Width
    12"
