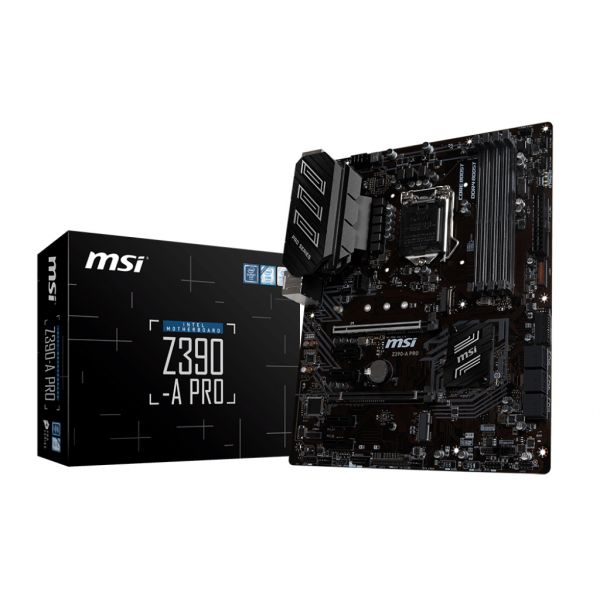

MSI Z390-A PRO Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151 - Intel Optane Memory Ready - ATX

64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - DisplayPort - 6 x SATA Interfaces
Product Number: IGRM5KV429
  • Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
  • Compatible Intel Core i5 processor provides you with the solid performance to watch videos and play games, while its adaptability makes you more productive
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
  • DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
More details
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items below to see if a replacement product is available.

Product Description

MSI Z390-A PRO Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151 - Intel Optane Memory Ready - ATX - Inspired from architectural design with the extended heatsink for having better thermal solution; also Intel CNVi ready, Core Boost, DDR4 Boost, Core Boost, Turbo M.2 and USB 3.1 Gen2 connector

  • Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
  • Compatible Intel Core i5 processor provides you with the solid performance to watch videos and play games, while its adaptability makes you more productive
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
  • DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
  • Set Core Power Free: Core Boost, 8+4 pin CPU power connector, Core Boost, DDR4 Boost
  • RAID supported levels provide data reliability and fault tolerance
  • Extended Heatsink Design: MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.
  • Intel LAN?Premium network solution from Intel for professional and multimedia use. Delivers a secure, stable and fast network connection.
  • Intel Turbo USB 3.1 Gen2: Powered by Intel USB 3.1 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
  • DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
  • Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX desktop motherboard
 Need more information? Ask a Question

Product Specifications

  • Audio Channels
    7.1
  • Brand Name
    MSI
  • Chipset Manufacturer
    Intel
  • Controller Type
    Serial ATA/600
  • Country of Origin
    China
  • DVI
    Yes
  • Depth
    9.6"
  • DisplayPort
    Yes
  • Form Factor
    ATX
  • Gigabit Ethernet
    Yes
  • Intel Optane Memory Ready
    Yes
  • Limited Warranty
    3 Year
  • Manufacturer Part Number
    Z390APRO
  • Maximum Memory
    64 GB
  • Memory Form Factor
    DIMM UDIMM
  • Memory Technology
    DDR4 SDRAM
  • Number of Memory Slots
    4
  • Number of PCI Express x1 Slots
    4
  • Number of PCI Express x16 Slots
    2
  • Number of SATA Interfaces
    6
  • Number of Total Expansion Slots
    6
  • Onboard Video
    CPU Dependent Video
  • Processor Socket
    Socket H4 LGA-1151
  • Processor Supported
    Celeron Core i3 Core i5 Core i7 Core i9 Pentium Gold
  • Product Model
    Z390-A PRO
  • Product Name
    Z390-A PRO Desktop Motherboard
  • Product Series
    PRO
  • Product Type
    Desktop Motherboard
  • RAID Levels
    0 1 10 5
  • RAID Supported
    Yes
  • Total Number of Onboard USB Ports
    8
  • Total Number of PCI Express Slots
    6
  • Total Number of USB Ports
    6
  • Total Processor Supported
    1
  • VGA
    Yes
  • Width
    12"
