Planar PT1945R 19" Class LCD Touchscreen Monitor - 5:4 - 5 ms

Product #: SYNX6296466
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

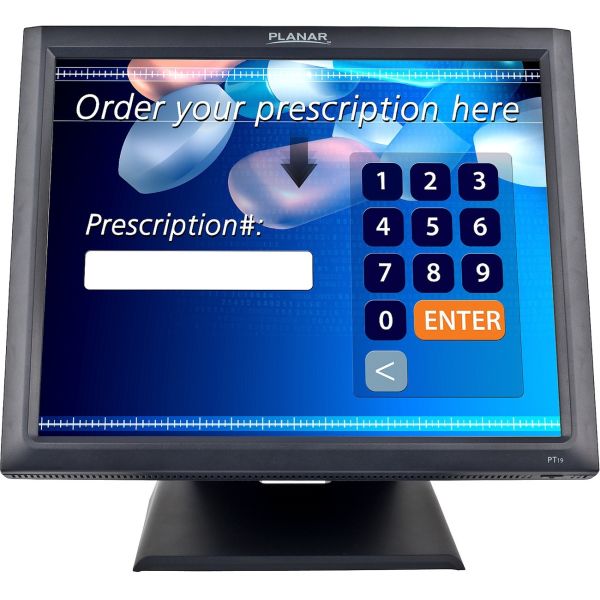

Planar PT1945R 19" Class LCD Touchscreen Monitor - 5:4 - 5 ms
19" Viewable - 5-wire Resistive - 1 Point(s) - 1280 x 1024 - SXGA - 16.7 Million Colors - 250 Nit - Edge LED Backlight - Speakers - HDMI - USB - VGA - DisplayPort - 1 x HDMI In - Black - 3 Year
The Planar PT1945R 19" touch screen Point of Sale (POS) monitor is perfect for use in retail, point-of-sale, government, education, healthcare, and kiosk applications. The upgraded, cost-effective monitor now comes with HDMI and DisplayPort input connectivity.
Planar PT1945R
Easily integrated with a variety of POS, thin client or PC systems, the monitor features 5-wire resistive touch screen with USB touch screen interface, an internal power supply, speakers, and a designed touch enclosure. No drivers are needed for basic touch screen operation, but for advanced features, drivers are quickly loaded using the easy to follow, step-by-step instructions.

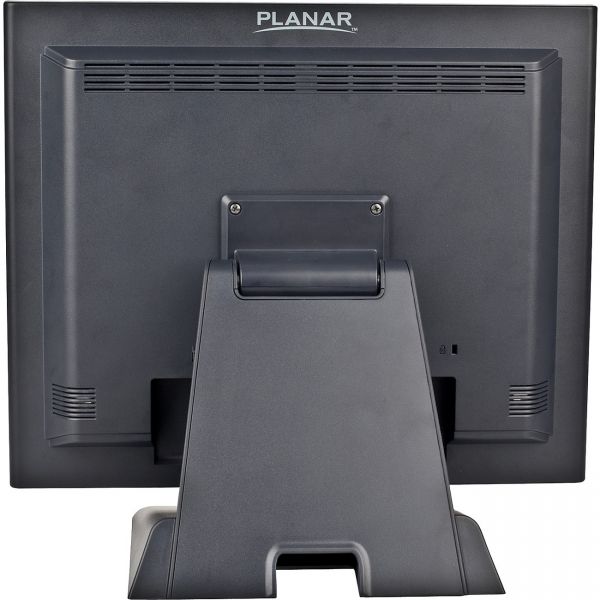

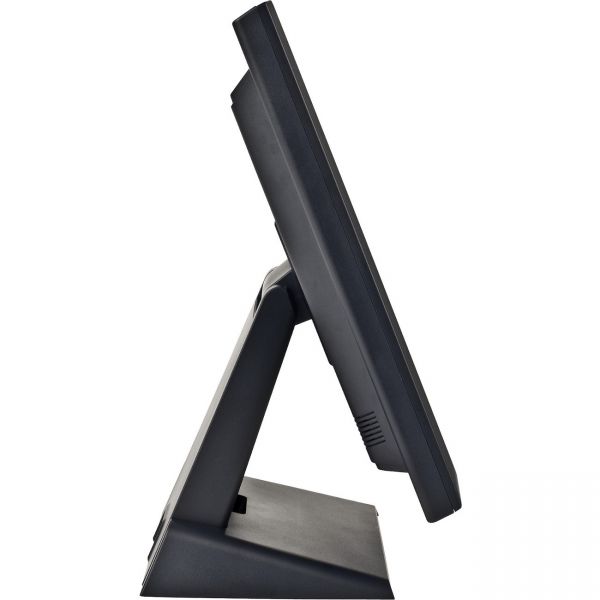

The Planar PT1945R monitor comes standard with a deskstand capable of -5 to 90° tilt range and is compatible with other mounting options using the 100mm VESA standard hole pattern on the back of the monitor.
  • Features 5-wire Resistive touch technology which is made of a glass panel and a film screen, each covered with a thin metallic layer, isolated by a narrow gap
  • The SXGA touchscreen highlights SXGA display with the resolution of up to 1280 x 1024 pixels
  • Edge LED backlighting technology enabled for a bright and sharp display
  • The 250 Nit brightness gives an exceptionally visible display for clear and consistent on-screen pictures

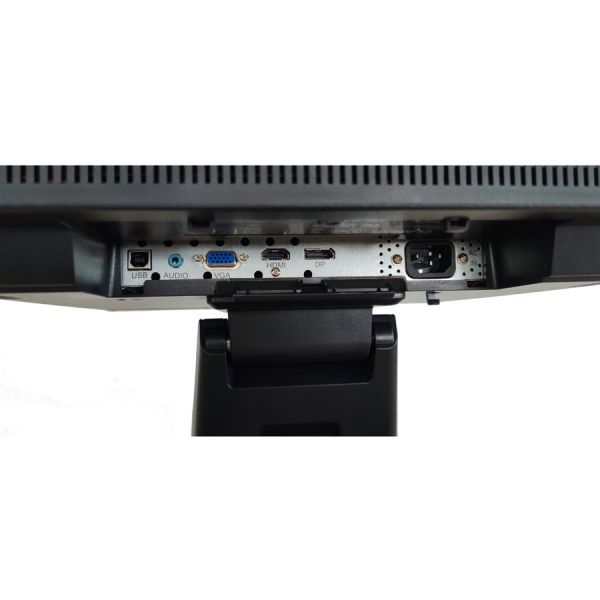

  • HDMI interface allows connectivity to a variety of HD devices including gaming consoles, laptop PCs, Blu-ray players, digital cameras and many others for the ultimate high-definition display
  • VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Guides & Information
Related Articles
Need more information? Ask a Question

Product Specifications

  • Aspect Ratio
    5:4
  • Backlight Technology
    Edge LED
  • Brand Name
    Planar
  • Brightness
    250 Nit
  • Color Supported
    16.7 Million Colors
  • Depth
    2.3"
  • Depth with Stand
    8.60"
  • DisplayPort
    Yes
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
  • Environmentally Friendly
    Yes
  • Features
    Anti-glare Cable Lock Slot On-screen Display (OSD) Security Lock
  • HDMI
    Yes
  • Height
    14"
  • Height with Stand
    15.40"
  • Horizontal Viewing Angle
    170°
  • Limited Warranty
    3 Year
  • Manufacturer Part Number
    997-5971-01
  • Maximum Resolution
    1280 x 1024
  • Native Contrast Ratio
    1,000:1
  • Number of DisplayPorts
    1
  • Number of HDMI Inputs
    1
  • Number of Simultaneous Touchpoints
    1
  • Number of USB Ports
    1
  • Operating Power Consumption
    25 W
  • Package Contents
    19" Touch Screen Point of Sale Monitor Power Cord VGA Cable Audio Cable USB Cable (A to B) HDMI Cable User's Guide Quick Start Guide Cable Cover Screw
  • Product Color
    Black
  • Product Model
    PT1945R
  • Product Name
    19" Touch Screen Point of Sale Monitor
  • Product Type
    LCD Touchscreen Monitor
  • Response Time
    5 ms
  • Screen Mode
    SXGA
  • Screen Size Class
    19"
  • Speakers
    Yes
  • Stand Adjustments
    Tilt
  • Standard Refresh Rate
    75 Hz
  • Touchscreen Type
    5-wire Resistive
  • USB
    Yes
  • VESA Mount Compatible
    Yes
  • VESA Mount Standard
    100 x 100
  • VGA
    Yes
  • Vertical Frequency
    56 Hz to 75 Hz
  • Vertical Viewing Angle
    160°
  • Viewable Screen Size
    19"
  • Weight with Stand (Approximate)
    14.60 lb
  • Width
    17"
  • Width with Stand
    17"
