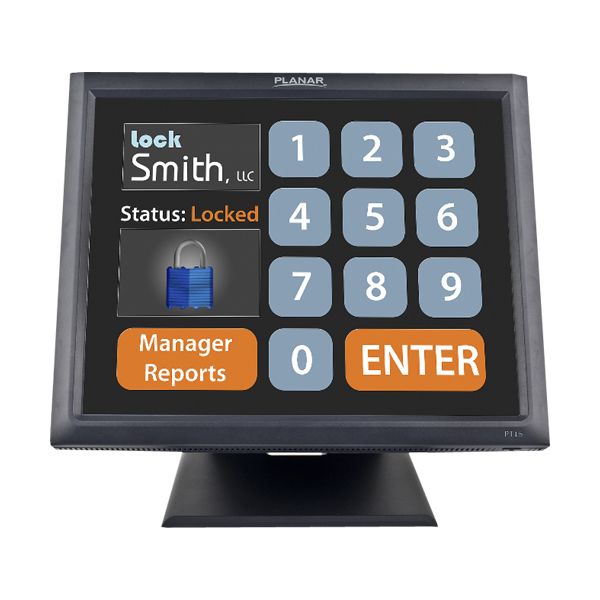

Planar PT1545R 15" LCD Touchscreen Monitor - 8 ms

15" Class - 5-wire Resistive - 1024 x 768 - XGA - Adjustable Display Angle - 16.7 Million Colors - 500:1 - 250 Nit - Speakers - USB - VGA - Black - RoHS - 3 Year
Product Number: SYNX2592352
  • The 500:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • The 250 Nit brightness gives an exceptionally visible display for clear and consistent on-screen pictures
  • Features 5-wire Resistive touch technology which is made of a glass panel and a film screen, each covered with a thin metallic layer, isolated by a narrow gap
More details
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items below to see if a replacement product is available.

Product Description

Planar PT1545R 15" LCD Touchscreen Monitor - 8 ms - Easily integrated with a variety of POS, thin client or PC systems, the cost-effective PT1545R touchscreen features a 5-wire resistive touch screen with dual RS-232/USB interface, an internal power supply and a desk stand with -5 to 90° tilt range. No drivers are needed for basic touchscreen operation, but for advanced features, drivers are quickly and easily loaded.

  • The 500:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • The 250 Nit brightness gives an exceptionally visible display for clear and consistent on-screen pictures
  • Features 5-wire Resistive touch technology which is made of a glass panel and a film screen, each covered with a thin metallic layer, isolated by a narrow gap
 Need more information? Ask a Question

Product Specifications

  • Adjustable Display Angle
    Yes
  • Brand Name
    Planar
  • Brightness
    250 Nit
  • Built-in Devices
    Speaker
  • Certifications & Standards
    UL/c-UL FCC-Class B TUV-T mark CE
  • Color
    Black
  • Color Supported
    16.7 Million Colors
  • Contrast Ratio
    500:1
  • Country of Origin
    China
  • Depth
    8"
  • Environmental Certification
    RoHS
  • Environmentally Friendly
    Yes
  • Height
    12"
  • Horizontal Viewing Angle
    140°
  • Input Voltage
    110 V AC 220 V AC
  • Limited Warranty
    3 Year
  • Manufacturer Part Number
    997-5967-00
  • Maximum Resolution
    1024 x 768
  • Mount Type
    Arm-mountable Wall Mountable
  • Operating Power Consumption
    20 W
  • Package Contents
    PT1545R Touchscreen LCD Monitor Power Cord, VGA Cable RS-232 Cable USB Cable (A to B) Audio-in Cable User's Guide Quick Start Guide
  • Platform Supported
    Mac PC
  • Product Model
    PT1545R
  • Product Name
    PT1545R Touchscreen LCD Monitor
  • Product Type
    LCD Touchscreen Monitor
  • Response Time
    8 ms
  • Screen Mode
    XGA
  • Screen Size Class
    15"
  • Speakers
    Yes
  • Standard Refresh Rate
    75 Hz
  • Standby Power Consumption
    3.99 W
  • Touchscreen
    Yes
  • Touchscreen Type
    5-wire Resistive
  • USB
    Yes
  • Vertical Viewing Angle
    125°
  • VESA Mount Compatible
    Yes
  • VESA Mount Standard
    100 x 100
  • VGA
    Yes
  • Viewable Screen Size
    15"
  • Width
    12.8"
