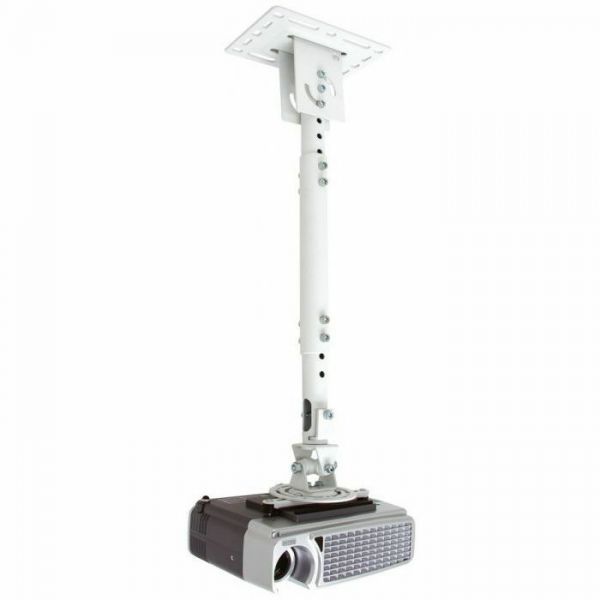

Atdec ceiling projector mount, adjustable drop - Loads up to 33lb - VESA up to 65x200

360° projector rotation - Adjustable drop length 15.7in to 35.5in - Quick release mechanism - Adjustable pitch & role - Advanced cable management - All mounting hardware included
Product Number: SYNX2881536
  • Maximum load up to 33lb
  • Universal mounting hole pattern suits a wide range of projectors
  • Adjustable telescopic pole allows for 19.6in of drop length adjustment
  • Angled ceiling support
More details
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items below to see if a replacement product is available.

Product Description

Atdec ceiling projector mount, adjustable drop - Loads up to 33lb - VESA up to 65x200 - The TH-WH-PJ-CM telescopic projector mount securely supports your projector on a pole and can be extended up to 35.4in. 360° rotation offers unparalleled versatility when choosing room layout, as well as multiple presentation positions. Angled ceilings are accommodated as the pole can be adjusted by up to 45°. Easy installation and internal cable management make this mount an ideal solution for Pro AV applications.

  • Maximum load up to 33lb
  • Universal mounting hole pattern suits a wide range of projectors
  • Adjustable telescopic pole allows for 19.6in of drop length adjustment
  • Angled ceiling support
  • 360° rotation around pole
  • Quick release mechanism
  • All mounting hardware included
  • 10 years warranty
Guides & Information
 Need more information? Ask a Question

Product Specifications

  • Additional Information
    Fast, easy installation Minimum drop of 400mm (15.7") Maximum drop of 900mm (35.4") Quick release mechanism for easy installation or removal for maintenance purposes Allows projector to be mounted on angled ceilings by providing the pole horizontal adjustment of up to 45 degree Internal cable management Pan adjustment to 20° at projector for ease of use Maximum pitch adjustment of +/- 40°, maximum roll adjustment of +/- 20° 360° Rotation
  • Adjustable Height
    Yes
  • Application/Usage
    Projector
  • Assembly Required
    Yes
  • Brand Name
    Atdec
  • Color
    White Silver
  • Device Supported
    Projector
  • Features
    Swivel 360° Rotation Cable Management Pitch Adjustment Quick Release Mechanism Roll Adjustment
  • Height
    4"
  • Length
    17"
  • Limited Warranty
    10 Year
  • Manufacturer Part Number
    TH-WH-PJ-CM
  • Material
    Steel
  • Maximum Load Capacity
    33 lb
  • Package Contents
    1 x Ceiling Mount Assembly 2 x 100mm Extension Brackets 1 x Mounting Plate 2 x 150mm Extension Brackets 2 x 75mm Extension Brackets 2 x 50mm Extension Brackets 1 x Top Ceiling Hanger 1 x Mid Ceiling Hanger 1 x Bottom Ceiling Hanger 1 x Fixing Coupler 4 x M5 x 10mm Socket Button Cap Screw 1 x 6mm Allen Key 4 x Nylon Anchor Plug 4 x 20mm Washer 4 x 10mm Washer 4 x 8mm Washer 4 x M2.5 x 15 Cross Recessed Screws 4 x M3 x 15 Cross Recessed Screws 4 x M3 x 20 Cross Recessed Screws 4 x M4 x 15 Cross Recessed Screws 4 x M4 x 20 Cross Recessed Screws 4 x M4 x 25 Cross Recessed Screws 4 x M5 x 15 Cross Recessed Screws 4 x M5 x 20 Cross Recessed Screws 4 x M5 x 25 Cross Recessed Screws 4 x M6 x 15 Cross Recessed Screws 4 x M6 x 25 Cross Recessed Screws 1 x 3mm Allen Key 4 x 14 Gauge Coach Screw 4 x Large Spacer 4 x Medium Spacer 4 x Small Spacer 8 x Square Nut 4 x Bottom Spacer 8 x M8 x 50mm Socket Head Cap Screw 8 x M8 Nylon Nut 4 x M6 x 20 Cross Recessed Screws
  • Product Model
    TH-WH-PJ-CM
  • Product Name
    TH-WH-PJ-CM Ceiling Pole Projector Mount
  • Product Type
    Ceiling Mount
  • Width
    6"
