Icy Dock EZConvert MB703M2P-B M.2 SATA SSD to 2.5" SATA SSD Converter Adapter

Product Number: IGRM6LG392
$19.71
Free Shipping Orders Over $45+ Estimated Delivery
Favorite
Compare
Request Quote

Product Description

Icy Dock EZConvert MB703M2P-B M.2 SATA SSD to 2.5" SATA SSD Converter Adapter - ICY DOCK's EZConvert MB703M2P-B is a complete solution to convert any M.2 SATA SSD into the exact dimensions and port locations as a standard 2.5" hard drive or SSD (9.5mm height). Designed for compatibility, it accepts all M.2 sizes from 30mm to 80mm in length, mounting them without screws or tools, and allows these drives to be installed anywhere that accepts a bare 2.5" drive, such as a hot-swap bay, 2.5" mounting bracket, or in any of ICY DOCK's 2.5" drive enclosures. MB703M2P-B protects the delicate circuit board of your M.2 SSDs from bumps and drops.
Enable Hot-Swap
Because M.2 SSDs are not designed to be hot-swapped, their connectors are very delicate, typically rated for only 250 insertion/removal cycles. When used with the EZConvert MB703M2P-B, M.2 SATA SSDs can be hot-swapped without putting any wear on the internal connector, instead using ICY DOCK's strong hot-swap connector rated for 10,000 insertion/removal cycles. Hot-swap makes it easy to add, remove, and replace drives without the need to restart the system.
Perfect Compatibility
EZConvert MB703M2P-B accepts any 30mm-80mm M.2 SATA SSD and gives it the exact same dimensions, port locations, and screw-hole locations as a standard 9.5mm 2.5" SSD.

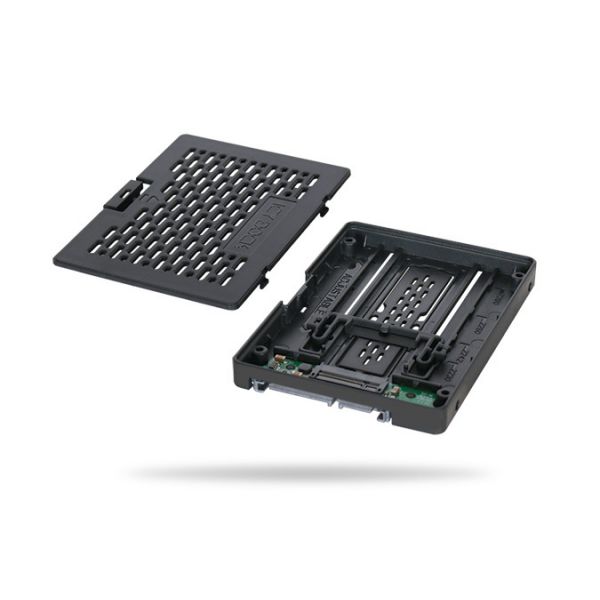

The 1-piece lid has a sturdy EZ-press latch, to stand up to frequent drive swaps. Simply press the latch in to open the lid, revealing the drive bay for easy installation, removal, or drive replacement.
The adjustable M.2 locker slides to accommodate all standard M.2 SATA SSD lengths, including 2230 (30mm), 2242 (42mm), 2260 (60mm), and 2280 (80mm). The locker clips into the SSDs screw hole to secure the drive without the need for screws or tools.
Because the MB703M2P-B uses the standardized 2.5" form factor, it can be installed into any 2.5" backplane or hot-swap bay, such as our flexiDOCK, ExpressCage, or ToughArmor models. This lets you expand the capabilities of your existing 2.5" devices by adding M.2 SATA SSD support to them.
ICY DOCK's EZConvert MB703M2P-B not only allows you to convert M.2 SATA drives into a 2.5" drive form factor, but also, when used in combination with an aftermarket SATA to USB 3.1 adapter cable (not included), you can easily convert the MB703M2P-B into an external M.2 SATA drive to take your data on the go.
Built to Last
MB703M2P-B's body and lid each use a 1-peice design, constructed from a single piece of strong ABS plastic, to strengthen the enclosure and give your drive a physical layer of protection against drops and bumps. One-piece construction is preferred over multiple pieces, as the connection between two pieces creates a weak point that is prone to failure.
Packed with Features
The lid and body have ventilation holes amply placed throughout the enclosure, working with your computer's cooling system to cool the drive and protect it from overheating damage, which can lead to data loss.
ICY DOCK's EZConvert MB703M2P-B was specifically designed to provide maximum cooling efficiency to prevent speed throttling on SATA M.2 drives. Air vent holes sit right underneath the SATA M.2 drive, giving the drive enough air flow while doing intensive reads and writes. Moreover, to allow more air circulation, these air venting holes can be removed physically to reveal a cutout, allowing users to install M.2 drive heatsinks or simply leave it open for an increased cooling effect.
The MB703M2P-B supports the full SATA III bandwidth specifications of up to 6Gbps, letting you take full advantage of the fastest M.2 SATA SSDs available.

Product Specifications

  • Additional Information
    Support Drive Size: 1 x B / B + M key M.2 SATA SSD 2230/2242/2260/2280 Compatible Drive Type : SATA Number of M.2: 1 Drive Bay : 1 x 2.5" SATA drive bay (9.5mm - 15mm) Host Interface : 1 x SATA 7pin Power Input : 1 x SATA 15pin power connector Transfer Rate : Up to 6Gbps (Depending on hard drive speed) Support HDD Capacity : No Limitation Structure / Material : Plastic Support Hot-Swap : Yes SATA Connector Insertion Rate : 10,000 Humidity : 5%~65% RH Operating Temperature : 0°C to 60°C (32°F to 140°F) Storage Temperature : -35°C to 70°C (-31°F to 158°F)
  • Brand Name
    Icy Dock
  • Certifications & Standards
    CE
  • Color
    Black
  • Depth
    4"
  • Environmental Certification
    REACH RoHS
  • Environmentally Friendly
    Yes
  • Height
    0.4"
  • Limited Warranty
    3 Year
  • Manufacturer Part Number
    MB703M2P-B
  • Material
    Acrylonitrile Butadiene Styrene (ABS)
  • Package Contents
    EZConvert MB703M2P-B M.2 SATA SSD to 2.5" SATA SSD Converter Adapter User Manual
  • Product Line
    EZConvert
  • Product Model
    MB703M2P-B
  • Product Name
    EZConvert MB703M2P-B M.2 SATA SSD to 2.5" SATA SSD Converter Adapter
  • Product Type
    M.2 to SATA Adapter
  • Width
    2.8"
