Icy Dock FlexiDOCK MB511SPO-1B Drive Bay Adapter for 5.25" Serial ATA/600 - Slim SATA Host Interface Internal - Black

1 x HDD Supported - 1 x SSD Supported - 1 x 2.5" Bay - Metal, Plastic
Product Number: IGRM6LG388
  • Supports 1x 2.5" SATA SSD / HDD up to 7mm in height.
  • Effortlessly transform bay drives to accommodate HDDs or SSDs, with the drive bay adapter
  • Fits into any 9.5mm ultra-slim optical disk drive bay
  • Metal chassis with partial industrial ABS plastic for optimal protection
More details
$39.21
Free Shipping Orders Over $45+ Estimated Delivery
Favorite
Compare
Request Quote

Product Description

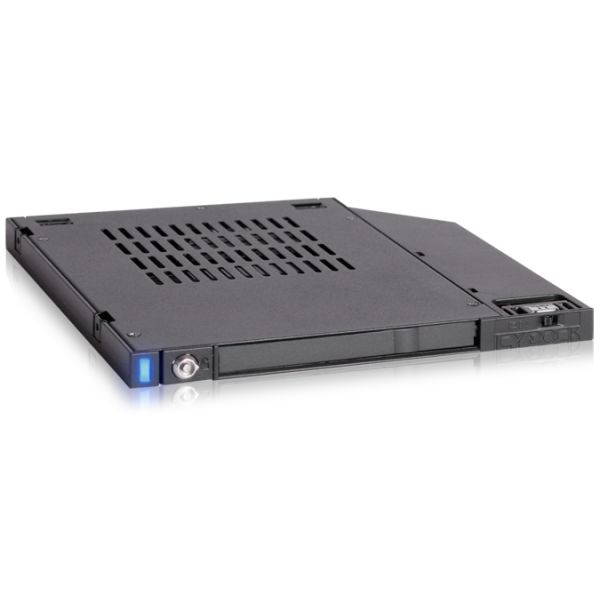

Icy Dock FlexiDOCK MB511SPO-1B Drive Bay Adapter for 5.25" Serial ATA/600 - Slim SATA Host Interface Internal - Black - Introducing the ICY DOCK flexiDOCK MB511SPO-1B, the first ever tray-less 2.5" SATA SSD / HDD docking station enclosure for the 9.5mm Ultra-Slim CD/DVD/Blu-Ray bays commonly available on desktops, laptops, and workstation PCs. flexiDOCK makes it easy to expand the storage capabilities of your system with a second storage device, adding effortless installation and removal of any 7mm height 2.5" SSD or HDD without the hassle of trays or screws. We designed the flexiDOCK to give you all the easy hot-swappable convenience of a docking station, with the durability and security of a fully enclosed mounting rack.
ICY DOCK's MB511SPO-1B uses a rugged full-metal enclosure meeting flammability requirements, ensuring that your drives are protected through at least 10,000 insertion/removal cycles. The enclosure has ventilation holes all around the enclosure for additional heat dissipation, keeping your drives cool. With the power switch, you can shut down your drive without needing to eject it, saving power when the drive is not needed. flexiDOCK is the perfect solution for anyone needing a high-quality, reliable drive docking system for their sensitive data, including video / photo editors and IT professionals. MB511SPO-1B is also compatible with any laptop that uses a 9.5mm optical disk reader, including models from Dell, HP, Lenovo ThinkPad, IBM, Acer, Gateway, Asus, Sony, Samsung, and MSI.
ICY DOCK's flexiDOCK MB511SPO-1B installs into your existing 9.5mm CD / DVD / Blu-Ray bay, converting it into an easy hot-swappable card reader for your 2.5" HDDs and SSDs. It replaces the existing 9.5mm optical disk reader, and has the exact same dimensions, screw hole locations, and port locations, and comes with all necessary screws for installation. MB511SPO-1B is perfect for small-form factor systems that require an additional drive beyond the usual mounting capabilities of the computer. Because of this, the flexiDOCK is ideal for laptops, desktops, server racks, home theater PCs (HTPC), in-vehicle systems and portable systems.
With the flexiDOCK MB511SPO-1B you can consolidate your disk-based media onto an HDD or SSD, which have capacities nearly 500 times greater than a standard DVD.
Easy Hot Swap Docking
ICY DOCK's flexiDOCK MB511SPO-1B is designed to improve your workflow in any application that requires hot-swap by making it quick and easy to swap your drives. Thanks to the unique drive docking design, you can simply press a bare drive into the flexiDOCK and start your tasks. flexiDOCK is completely tray-less, with tool-less drive installation saving the time it takes to screw drives in and out of trays and lowering potential labor costs in the event of drive failure.
Once a drive is inserted into flexiDOCK, an ejection button is revealed. The ejection button is a specially designed two-segmented drive release mechanism that prevents accidental / unwanted drive ejection. To eject a drive, slide the ejection button to the left and push inward to engage the drive release mechanism.
Whether you're performing scheduled backups or working on a media editing project that spans multiple SSDs, flexiDOCK makes it easy to swap your 5mm-7mm height 2.5" SSDs and HDDs without needing to restart your computer. This means drive changes happen in seconds, not minutes, getting you back to work quicker without interrupting your workflow.
Packed with Features
ICY DOCK's flexiDOCK MB511SPO-1B surrounds your drive in a ruggedized metal housing with ample ventilation holes, designed to improve protection and maximize airflow, keeping your drives running cool under the heaviest of loads.

  • Supports 1x 2.5" SATA SSD / HDD up to 7mm in height.
  • Effortlessly transform bay drives to accommodate HDDs or SSDs, with the drive bay adapter
  • Fits into any 9.5mm ultra-slim optical disk drive bay
  • Metal chassis with partial industrial ABS plastic for optimal protection
  • Completely trayless, with tool-less drive installation design that accepts bare drives without trays or caddies
  • Mounts internally, providing a speedy data transfer for faster and smoother read and write functionality
  • Two-segmented drive ejection button with key lock for maximum security and to prevent accident ejections
  • Eagle-hook mechanism locks drives into place and prevents the drive from falling out on systems prone to movement and vibration
  • Dust-cover keeps the housing free of dust when no drive is installed
  • Flush drive insertion design fully protects drives from possible environmental damage
  • Front accessible drive power switch
  • Backed by a full 3-year manufacturer warranty against all defects

Product Specifications

  • Brand Name
    Icy Dock
  • Color
    Black
  • Compatible Drive Bay Width
    5.25"
  • Depth
    5.1"
  • Drive Interface
    Serial ATA/600
  • Environmental Certification
    REACH RoHS
  • Environmentally Friendly
    Yes
  • Form Factor
    Internal
  • Height
    0.4"
  • Host Interface
    Slim SATA
  • Limited Warranty
    3 Year
  • Manufacturer Part Number
    MB511SPO-1B
  • Material
    Metal Plastic
  • Number of 2.5" Bays
    1
  • Number of Hard Drives Installed
    No
  • Number of Hard Drives Supported
    1
  • Number of Solid State Drive Installed
    No
  • Number of Solid State Drive Supported
    1
  • Number of Total Expansion Bays
    1
  • Package Contents
    flexiDOCK MB511SPO-1B 2.5" SATA SSD / HDD Docking for Ultra Slim ODD Bay (9.5mm) 1 x User Manual 4 x Screw
  • Product Line
    FlexiDOCK
  • Product Model
    MB511SPO-1B
  • Product Name
    flexiDOCK MB511SPO-1B 2.5" SATA SSD / HDD Docking for Ultra Slim ODD Bay (9.5mm)
  • Product Type
    Drive Bay Adapter
  • Width
    5"
  • Wireless LAN
    No
