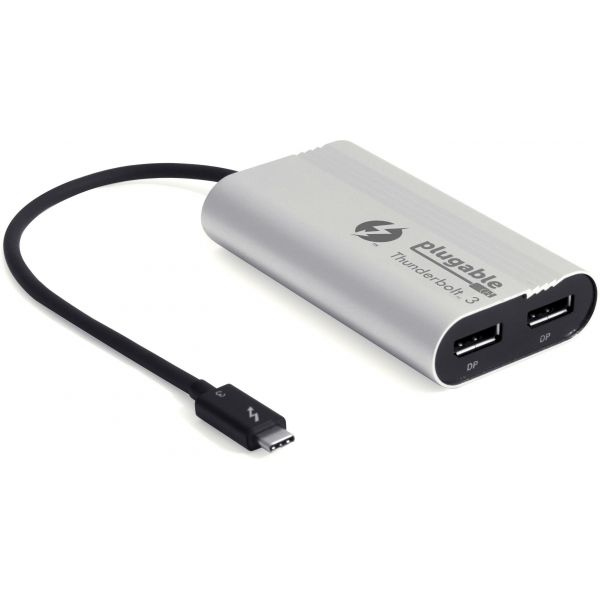

Plugable Thunderbolt 3 Dual Monitor Adapter - USB-C to DP for Mac and Windows

9.84" DisplayPort/USB A/V Cable for iMac, Notebook, Tablet, MacBook, Monitor, MacBook Pro - First End: 1 x Type C Male Thunderbolt 3 - Second End: 2 x DisplayPort Female Digital Audio/Video - 40 Gbit/s - Supports up to 5120 x 2880 - Black - 1 Pack
Product Number: IGRM2GP897
  • Supports two 4K DisplayPort monitors via Thunderbolt 3
  • Enjoy the feast of movies with both video and sound device supported
  • Resolutions up to 4096 x 2160 at 60Hz per monitor
  • With USB port, enjoy the plug-and-play facility
More details
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items below to see if a replacement product is available.

Product Description

Plugable Thunderbolt 3 Dual Monitor Adapter - USB-C to DP for Mac and Windows - Supports up to two additional independent 4K displays (or a single 5k display) with 60Hz refresh rates. Thunderbolt 3-attached displays tap directly into your system's graphics processor to enable high-performance output without utilizing additional system resources.

Not all Thunderbolt 3 systems are compatible with dual display graphics adapters.

Compatible Systems

For both graphics adapter outputs to function, system manufacturer must have routed all DisplayPort lines to the Thunderbolt 3 port(s). This is an engineering decision made by your system manufacturer. Currently only Apple, Dell and HP Thunderbolt 3 systems meet this requirement but more compatible Thunderbolt 3 systems are expected in the future.

Tested/validated with:
Dell XPS 13 9350 & XPS 15 9560
Apple MacBook Pro 2016 and iMac 2017

Requires up-to-date system BIOS, Thunderbolt 3 drivers and firmware installed on host system.

Non-compatible Systems

Will not function when attached to a non-Thunderbolt 3 USB-C port

As mentioned above, most current non-Apple, Dell or HP Thunderbolt 3 systems are not fully compatible due to a limited number of DisplayPort lines routed to the Thunderbolt 3 port.

Usage with non-DisplayPort Displays

Conversion to HDMI/DVI /VGA can only be done with active adapters (not inexpensive DP++ passive adapters).

In the Box

1x Plugable TBT3-DP2X w/ built-in 10 inch (25 cm) Thunderbolt 3 USB-C cable and quick-install guide.

  • Supports two 4K DisplayPort monitors via Thunderbolt 3
  • Enjoy the feast of movies with both video and sound device supported
  • Resolutions up to 4096 x 2160 at 60Hz per monitor
  • With USB port, enjoy the plug-and-play facility
  • For compatible Thunderbolt 3 macOS and Windows systems
  • Lightweight for easy portability
  • Portable aluminum design
  • Fully compatible with iMac
 Need more information? Ask a Question

Product Specifications

  • Brand Name
    Plugable
  • Cable Length
    9.84"
  • Cable Type
    DisplayPort/USB
  • Color
    Black
  • Connector on First End
    1 x Type C Male Thunderbolt 3
  • Connector on Second End
    2 x DisplayPort Female Digital Audio/Video
  • Country of Origin
    China
  • Data Transfer Rate
    40 Gbit/s
  • Device Supported
    iMac MacBook MacBook Pro Monitor Notebook Tablet
  • Features
    Active Lightweight
  • Limited Warranty
    1 Year
  • Manufacturer Part Number
    TBT3-DP2X-83
  • Package Contents
    Thunderbolt 3 Dual Monitor Adapter - USB-C to DP for Mac and Windows Quick-Install Guide
  • Product Name
    Thunderbolt 3 Dual Monitor Adapter - USB-C to DP for Mac and Windows
  • Product Type
    A/V Cable
