Vertiv Avocent Cybex SC800 Secure Desktop KVM, Single Head Monitor, 2 Port, NIAP V4.0 Certified, TAA Compliant, Common Criteria PP3.0 (SC820DPH-400)

Product #: SYNX5935432
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

Vertiv Avocent Cybex SC800 Secure Desktop KVM, Single Head Monitor, 2 Port, NIAP V4.0 Certified, TAA Compliant, Common Criteria PP3.0 (SC820DPH-400)
Secure Desktop KVM Switches | Secure KVM Switch | Single Head | NIAP Certified | Secure Keyboard | 2 to 8 Port, Secure Isolated Channels | Running up to UHD 4K at 60Hz | 3-Year Full Coverage Factory Warranty - Optional Extended Warranty Available

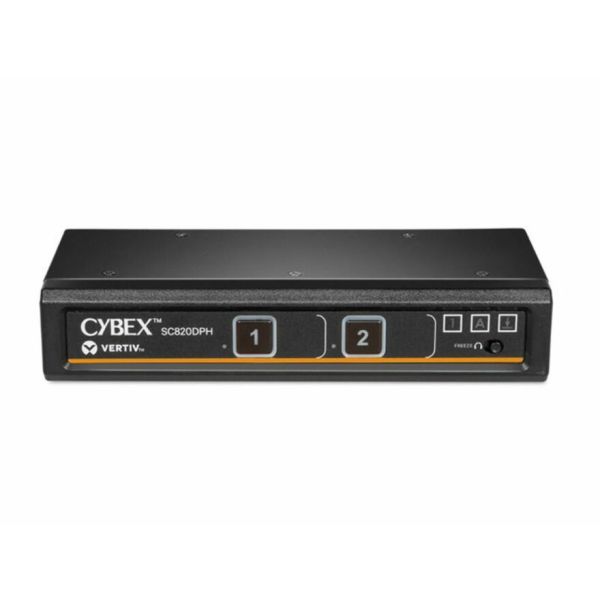

The Vertiv Avocent Cybex SC820DPH-400 secure desktop KVM switch provides secure connectivity across multiple resources. It lets users switch between computers with different security levels while preventing data leaks. Designed for security-conscious organizations, the SC820DPH-400 isolates each connected system, enforcing unidirectional data flow to safeguard sensitive information. It supports a maximum resolution of 3840 x 2160 at 60 Hz on a single display, delivering crisp, clear visuals. The two universal video ports (DisplayPort and HDMI) allow easy connection of up to two systems, while a 3.5mm audio jack supports alerts and notifications. Certified to the latest NIAP Common Criteria Protection Profile for Peripheral Sharing Switch (version 4.0), the SC820DPH-400 also features active intrusion detection and tamper-evident labels to alert users of unauthorized access. With a universal power supply and 4K support, it offers both security and performance in a streamlined solution.
More from the Manufacturer
  • NIAP 4.0 Certified: Security: Secure 2-port KVM with always-on anti-tampering, NIAP 4.0 certified.
  • Enhanced Situational Awareness: Equipped with customizable indicators that display active channels.
  • Versatile Video Support: Supports DP, HDMI, and DVI-I up to 3840 x 2160 resolution for HD visuals.
  • Zero Delay Switching: Instant mouse and keyboard switching with emulation for lag-free transitions.
  • Peripheral Isolation: Combines keyboard, mouse, and display into one setup for a clutter-free space.
  • Use this KVM Switchbox and eliminate the need for manually switching cables between sources
  • Get reliable connectivity between 2 computers and 1 local users
  • 3840 x 2160 resolution for high-quality video delivery
  • The Built-in USB port enables easy connection with USB-compatible devices
  • Designed to be used as a desktop
Guides & Information
Related Articles
Need more information? Ask a Question

Product Specifications

  • Brand Name
    Vertiv AVOCENT
  • Certifications & Standards
    NIAP 4.0 Certified
  • Connectivity Technology
    Wired
  • Country of Origin
    United States
  • DVI
    Yes
  • Depth
    2.4"
  • DisplayPort
    Yes
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
  • Features
    Tamper Resistant Intrusion Detection
  • Form Factor
    Desktop Rack-mountable
  • Graphic Mode
    4K
  • HDMI
    Yes
  • Height
    1.7"
  • Input Current
    1.50 A
  • Input Voltage Range
    100VAC-240VAC
  • KVM Technology
    Digital & Analog
  • Limited Warranty
    3 Year
  • Management Port
    No
  • Manufacturer Part Number
    SC820DPH-400
  • Maximum Operating Distance
    10 ft
  • Maximum Video Resolution
    3840 x 2160
  • Network (RJ-45)
    No
  • Number of Computers Supported
    2
  • Number of DVI Ports
    0
  • Number of DisplayPorts
    3
  • Number of HDMI Ports
    1
  • Number of Local Users Supported
    1
  • Number of Network (RJ-45) Ports
    0
  • Number of PS/2 Ports
    2
  • Number of Remote Users Supported
    0
  • Number of USB Ports
    4
  • Number of VGA Ports
    0
  • PS/2 Port
    No
  • Package Contents
    Cybex SC800 Secure Desktop KVM, Single Head Monitor, 2 Port, NIAP V4.0 Certified, TAA Compliant, Common Criteria PP3.0 (SC820DPH-400)Power Supply
  • Product Line
    Cybex
  • Product Model
    SC820
  • Product Name
    Cybex SC800 Secure Desktop KVM, Single Head Monitor, 2 Port, NIAP V4.0 Certified, TAA Compliant, Common Criteria PP3.0 (SC820DPH-400)
  • Product Series
    800
  • Product Type
    KVM Switchbox
  • Rack Height
    1U
  • USB
    Yes
  • VGA
    No
  • Width
    7"
