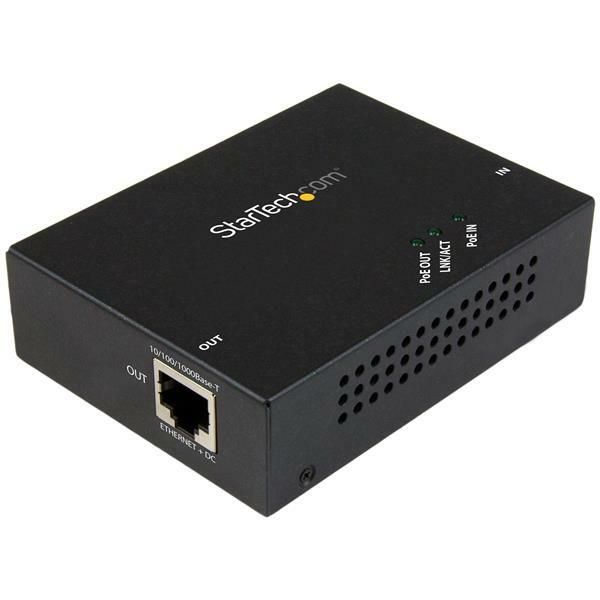

StarTech.com 1 Port Gigabit PoE+ Extender - 802.3at and 802.3af - 100 m (330 ft) - Power over Ethernet Extender - PoE Repeater Network Extender

Extend your PoE connection 100m or daisy chain up to four extenders for longer distance - 1 Port Gigabit PoE+ Extender 802.3at & 802.3af - 330ft - Power over Ethernet Extender - Network Extender - Compact and Mountable - 24W - Daisy chain up to 500m
Product Number: SYNX4216567
  • Deploy and access your Gigabit PoE-powered devices (PD) further away
  • Extend your PoE PDs over longer distances by daisy-chaining four extenders up to 500m (1640ft) total range (reduced power output at each connection)
  • Compact, wall-mountable, and rugged metal housing for convenience and reliability
  • 2kV ESD and surge protection
More details
$138.17
Ships Free - This items ships free with your order
Delivered by Fri 4/26 Mon 4/29 - This is an estimated delivery timeline
Non Returnable - This is a non returnable item

Product Description

StarTech.com 1 Port Gigabit PoE+ Extender - 802.3at and 802.3af - 100 m (330 ft) - Power over Ethernet Extender - PoE Repeater Network Extender - This Gigabit PoE+ extender spans your Power over Ethernet (PoE) device over longer distances, letting you double the 100m limitations of a traditional PoE infrastructure.
Now you can connect your Gigabit PoE device up to a maximum of 200m away, so it's easy to install a remote IP camera or access point. Plus the extender can be daisy-chained for more scalability.
Unrestricted PoE+ range and convenience
Need more distance? This convenient PoE+ repeater maximizes range and flexibility by extending your PoE connection by an extra 100m (330ft), while providing 24-watt power output to compatible devices.
Simply connect the extender to your power sourcing equipment (PSE) and your PoE-powered device (PD) and you're all set. The extender is compliant with the 802.3at/af standard, so it will work with existing PSE, such as a StarTech.com PoE+ switch (IES81000POE).
Daisy chain for longer distance and flexibility
Still need more distance? If an extra 100m isn't enough, this full-featured PoE extender offers daisy chain capability.
You can easily connect four extenders together, letting you install your PoE+ PD up to 500m (1640ft) away. It's perfect for business, education, and retail environments (output wattage is dependent on the number of daisy-chained extenders used).
Convenient installation options and durable construction
Get up and running quickly. This Gigabit PoE+ extender can be positioned right where you need it, with a wall-mountable design that requires no external power adapter.
You can enjoy reliable performance with little worry of downtime or failure, the extender features a rugged metal housing with built-in ESD and surge protection.
The POEEXT1GAT is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Applications
Ideal for Wi-Fi access points, IP phones, surveillance cameras, and kiosks where a power connection is not available
Enable remote installation of PoE+ devices over longer distance than conventional PoE range capabilities
Perfect for SOHO, SMB, system integrators, and IT administrators
More from the Manufacturer

  • Deploy and access your Gigabit PoE-powered devices (PD) further away
  • Extend your PoE PDs over longer distances by daisy-chaining four extenders up to 500m (1640ft) total range (reduced power output at each connection)
  • Compact, wall-mountable, and rugged metal housing for convenience and reliability
  • 2kV ESD and surge protection
  • Plug-and-play setup with no power adapter required
  • IEEE 802.3at 30W input to IEEE 802.3at/af 24W output
  • 52V to 56V output voltage
  • Automatically detects your connected PD to prevent damage if incorrectly installed
Related Articles
 Need more information? Ask a Question
Read More

Product Specifications

  • Additional Information
    Color: Black Enclosure Type: Steel Input Voltage: 52 ~ 56 DC Power Consumption: 3.2 W Max Connector Type(s): 2 - RJ-45 Female MTBF: 50,000 Hours Compatible Networks: 10/100/1000 Mbps Flow Control: Half-duplex back-pressure, IEEE 802.3x pause frame for full-duplex Maximum Cable Length: 328 ft [100 m]
  • Brand Name
    StarTech.com
  • Certifications & Standards
    IEEE 802.3af IEEE 802.3at IEEE 802.3 IEEE 802.3u IEEE 802.3ab
  • Compatibility
    Compatible Products: Wi-Fi Access Points IP Phones Surveillance Cameras Kiosks
  • Environmentally Friendly
    Yes
  • Form Factor
    Wall Mountable
  • Height
    1"
  • Input Ports
    1 x Gigabit Ethernet
  • Length
    3.7"
  • Limited Warranty
    2 Year
  • Manufacturer Part Number
    POEEXT1GAT
  • Maximum Output Power
    24 W
  • Maximum Output Voltage
    56 V DC
  • Minimum Output Voltage
    52 V DC
  • Output Ports
    1 x Gigabit PoE+
  • Package Contents
    1-Port Gigabit PoE+ Extender - 802.3at and 802.3af - 100 m (330 ft) 1 x Instruction Manual
  • Product Color
    Black
  • Product Name
    1-Port Gigabit PoE+ Extender - 802.3at and 802.3af - 100 m (330 ft)
  • Product Type
    PoE Extender
  • Protection Type
    ESD Protection Surge Protection
  • Width
    2.7"
