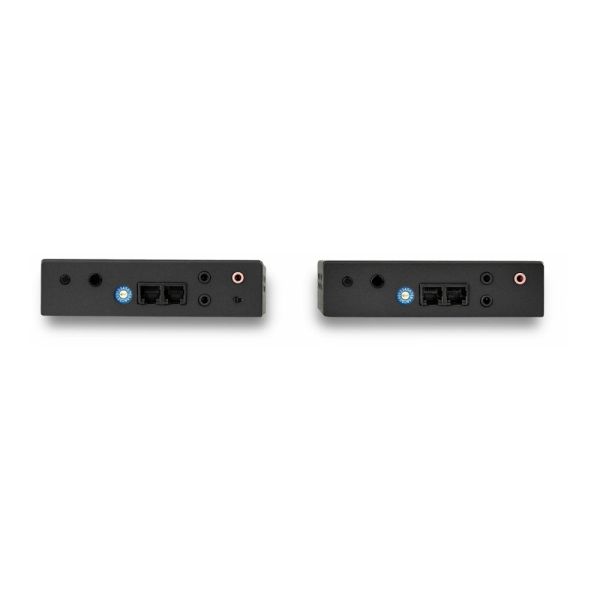

StarTech.com HDMI over IP Extender Kit with Video Wall Support - Extends HDMI signal and RS232 control to one or multiple displays - ST12MHDLAN2K
Product #:
ODFN4422164
+3View All
Product Description
StarTech.com HDMI over IP Extender Kit with Video Wall Support - Extends HDMI signal and RS232 control to one or multiple displays - ST12MHDLAN2K
HDMI over IP Extender Kit - Video wall support - HDMI transmitter & receiver kit extends HDMI signal & RS232 control - HDMI over Ethernet extender supports resolutions up to 1080p - HDMI over Cat5 Cat6 extender w/ mobile app to manage digital signage
This HDMI over IP extender kit distributes video to a remote location, over your local area network (LAN) and Cat5e or Cat6 Ethernet cabling. By combining this kit with additional receivers (sold separately) and an Ethernet switch (sold separately) you can distribute an HDMI source to multiple locations and create video walls using several remote displays and receivers in the same location.
You can also use multiple transmitters on the same network to distribute different video sources or connect the transmitter directly to a receiver at up to 330 ft. (100 m), in a point-to-point setup. Remote control of serial devices is supported through RS-232 extension.
Resolutions up to 1080p, with Audio
With support for video resolutions up to 1080p (1920 x 1080 at 60Hz), the transmitter also supports digital and analog audio to the receiver and analog audio from the receiver to the transmitter.
Mobile Control Through a Free App
The kit includes an easy-to-use online app to manage your IP video distribution.
The app is available on iOS for an iPhone or iPad, and Android for a smartphone or tablet.
Download the StarTech.com Video Control software to manage your IP video distribution.
NOTE: Your router must support IGMP snooping. Please refer to your network switch or router documentation to ensure IGMP snooping is supported and enabled.
Hassle-Free Installations
The HDMI transmitter/receiver kit includes optional shelf-mounting hardware. It uses Cat5e or Cat6 cables and works with existing network infrastructures, eliminating the expense of running proprietary cables.
ST12MHDLAN2K is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
More from the Manufacturer
You can also use multiple transmitters on the same network to distribute different video sources or connect the transmitter directly to a receiver at up to 330 ft. (100 m), in a point-to-point setup. Remote control of serial devices is supported through RS-232 extension.
Resolutions up to 1080p, with Audio
With support for video resolutions up to 1080p (1920 x 1080 at 60Hz), the transmitter also supports digital and analog audio to the receiver and analog audio from the receiver to the transmitter.
Mobile Control Through a Free App
The kit includes an easy-to-use online app to manage your IP video distribution.
The app is available on iOS for an iPhone or iPad, and Android for a smartphone or tablet.
Download the StarTech.com Video Control software to manage your IP video distribution.
NOTE: Your router must support IGMP snooping. Please refer to your network switch or router documentation to ensure IGMP snooping is supported and enabled.
Hassle-Free Installations
The HDMI transmitter/receiver kit includes optional shelf-mounting hardware. It uses Cat5e or Cat6 cables and works with existing network infrastructures, eliminating the expense of running proprietary cables.
ST12MHDLAN2K is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
More from the Manufacturer
- Long-distance transmission. Capable of maintaining signal integrity over distances up to 100 m, this HDMI extender ensures high-quality performance even in large installations.
- Comprehensive status indicators. Equipped with power, link OK, and status indicators, monitoring the device's operating condition is straightforward and efficient.
- Versatile connectivity options. This extender kit supports video, audio, infrared, and serial data transmission, making it an all-in-one solution for various AV setups.
- Efficient power consumption. Designed to operate with a power consumption of 10 W, this extender kit offers energy-efficient performance without compromising on quality.
- Robust environmental tolerance. With an operating humidity range of 0 to 80% and temperature limits from 0°C to 40°C, this device is suitable for a variety of environmental conditions.
Loading...
Product Specifications
-
Additional Warranty Information2-Year Limited
-
Brand NameStarTech.com
-
ColorBlack
-
Connectivity TechnologyWired
-
Country of OriginXX
-
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
-
Environmentally FriendlyYes
-
Form FactorRack-mountable
-
Graphics ModesFull HD
-
HDMI InYes
-
HDMI OutYes
-
Limited Warranty2 Year
-
ManufacturerSTARTECH.COM
-
Manufacturer Part NumberST12MHDLAN2K
-
Maximum Operating Distance328.08 ft
-
Maximum Video Resolution1920 x 1080
-
Media Type SupportedTwisted Pair
-
Network (RJ-45)Yes
-
Number of HDMI Inputs1
-
Number of HDMI Outputs1
-
Number of Input Devices Supported1
-
Number of Network (RJ-45) Ports2
-
Number of Output Devices Supported1
-
Package Contents1 x HDMI Transmitter 1 x HDMI Receiver 1 x CAT5 Cable 2 x RJ-11 to RSx232 Adapters 2 x RJ-11 Cables 1 x IR Blaster 1 x IR Receiver 2 x Universal Power Adapters (NA/JP, EU, UK, ANZ) 1 x Hardware Kit 8 x Foot Pads 1 x User Manual
-
Product NameHDMI over IP Extender Kit with Video Wall Support - 1080p
-
Product TypeCable Extender
-
Receiver Weight (Approximate)2.60 oz
-
RefurbishedN
-
TAA CompliantYes
-
Transmitter Weight (Approximate)2.60 oz
-
Twisted Pair Cable StandardCategory 6
