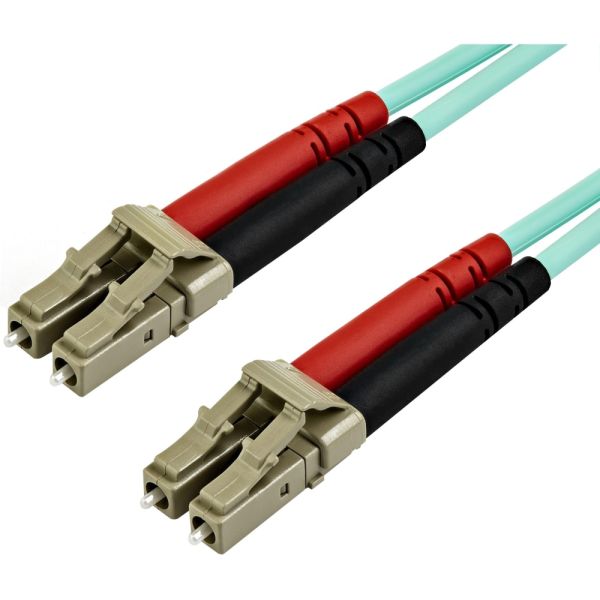

StarTech.com 7m OM3 LC to LC Multimode Duplex Fiber Optic Patch Cable - Aqua - 50/125 - LSZH Fiber Optic Cable - 10Gb (A50FBLCLC7)
Product #:
ODFN6052238
+1View All
Product Description
StarTech.com 7m OM3 LC to LC Multimode Duplex Fiber Optic Patch Cable - Aqua - 50/125 - LSZH Fiber Optic Cable - 10Gb (A50FBLCLC7)
7m (22ft) OM3 Multimode LC/LC-UPC Fiber Cable; 1/10/40/100 Gbps Full Duplex; 50/125um Core w/ Aramid Sheath; Bandwidth: 2000MHz·km at 850nm w/ VCSEL source; Outer Diameter: 2.9mm; Jacket Material: LSZH; Temp Range: -20 to 60°C (-4 to 140°F)
This OM3 LC to LC Multimode Duplex Fiber Optic Patch cable features 50/125 micron fiber and supports high-bandwidth data transmission over a 10 Gigabit Ethernet connection.
Built for Performance
With laser-optimized multimode fiber (LOMMF), the patch cable is ideal for connecting 850 nm Vertical Cavity Surface Emitting Laser (VCSEL) and LED sources. The high-speed connectivity on the aqua fiber-optic cable provides a high-bandwidth solution for your data centers or high-density applications.
Reliable Connection
Each OM3 fiber cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.
High-Quality Construction
Housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, this fiber-optic cable ensures minimal smoke, toxicity and corrosion when exposed to high sources of heat, or in the event of a fire. It's the best choice for a wide range of environments, including industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
A50FBLCLC7 is backed by a StarTech.com lifetime warranty and free lifetime technical support.
More from the Manufacturer
Built for Performance
With laser-optimized multimode fiber (LOMMF), the patch cable is ideal for connecting 850 nm Vertical Cavity Surface Emitting Laser (VCSEL) and LED sources. The high-speed connectivity on the aqua fiber-optic cable provides a high-bandwidth solution for your data centers or high-density applications.
Reliable Connection
Each OM3 fiber cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.
High-Quality Construction
Housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, this fiber-optic cable ensures minimal smoke, toxicity and corrosion when exposed to high sources of heat, or in the event of a fire. It's the best choice for a wide range of environments, including industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
A50FBLCLC7 is backed by a StarTech.com lifetime warranty and free lifetime technical support.
More from the Manufacturer
- SPECS: 7m (23ft); Color: Aqua (OM3); LC/LC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: ≥2000MHz·km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life
- QUALITY CONSTRUCTION: 50/125µm fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/LC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB
- RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes in case of fire; TIA/EIA compliant fiber core; Attenuation value under 2.3dB/km meets or exceeds industry standards
- WIDE COMPATIBILITY: OM3 LC/LC multimode cable supports 1/10/40/100 Gbps networks; Backward compatible with OM3; For high-density network applications such as SANs, data servers, fiber switches, SFP+, QSFP+, and QSFP28 transceivers
- OM3 FIBER CABLE: OM3 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)
Loading...
Product Specifications
-
Additional Warranty InformationFull Lifetime
-
Brand NameStarTech.com
-
Cable CharacteristicPatch Cable
-
Cable Length22.97 ft
-
Cable TypeFiber Optic Fiber Optic
-
ColorAqua
-
Connector Type on First EndLC Network - Male
-
Connector Type on Second EndLC Network - Male
-
Cord Length22-31/32 ft
-
Country of OriginCN
-
Data Transfer Rate1342177280
-
Device SupportedNetwork Device
-
FeaturesHalogen Free Flame Retardant Corrosion Resistant
-
Fiber Optic Cable Core/Cladding Specification50/125 µm
-
Fiber Optic ModeMulti
-
Limited WarrantyLifetime
-
ManufacturerSTARTECH.COM
-
Manufacturer Part NumberA50FBLCLC7
-
Product LineStarTech.com
-
Product NameFiber Optic Duplex Patch Network Cable
-
Product TypeCable Connector
-
RefurbishedN
-
Shipping Height0.59"
-
Shipping Weight (Approximate)95.2543977
-
Shipping Width8.66"
