StarTech.com 1-port PCI Express RS232 Serial Adapter Card - PCIe Serial DB9 Controller Card 16550 UART - Low Profile - Windows/Linux

1 port PCI Express RS232 serial controller card w/16550 UART/ASIX MCS9922CV-AA - Bi-directional speeds 921.6Kbps/port | 256 byte FIFO | Pin 9 pwr out 5v/12v/none - Expansion card w/low profile (Std bracket incl) - Win/Linux
Product Number: SYNX2767436
  • One high speed RS232 serial port with data transfer rate up to 460.8 Kbps
  • Ships with half-height/low profile mounting bracket, includes standard bracket
  • Selectable power output on pin 9 for the serial port
  • Native single-chip, single lane PCI Express
More details
$44.87
Free Shipping - This item ships free on orders over $45
Delivered by Fri 4/26 Mon 4/29 - This is an estimated delivery timeline
Non Returnable - This is a non returnable item

Product Description

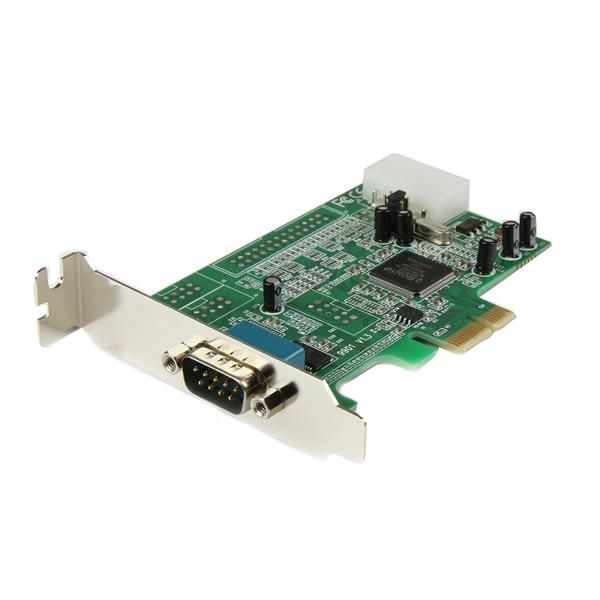

StarTech.com 1-port PCI Express RS232 Serial Adapter Card - PCIe Serial DB9 Controller Card 16550 UART - Low Profile - Windows/Linux - The PEX1S553LP PCI Express Serial Card turns a PCI Express slot into an RS232 (DB9) serial connection.
The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards.
The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows and Linux Kernel 2.6.11 to 4.11.x, and ships with a low profile/half-height bracket installed, but includes an optional full profile bracket that lets you add a serial port to virtually any computer (regardless of the case form factor).
This product is a replacement for our PEX1S552LP card.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer

  • One high speed RS232 serial port with data transfer rate up to 460.8 Kbps
  • Ships with half-height/low profile mounting bracket, includes standard bracket
  • Selectable power output on pin 9 for the serial port
  • Native single-chip, single lane PCI Express
  • Single chip design optimizes speed and reliability
  • Compliant with PCI Express base specifications revision 1.1a
  • Automated out-of-band flow control using CTS/RTS and DSR/DTR
  • Automated in-band software flow control using programmable Xon/Xoff in both directions
  • 256 Byte FIFO
Guides & Information
Related Articles
 Need more information? Ask a Question
Read More

Product Specifications

  • Additional Information
    Native single-Chip, single lane PCI Express; 48% less cpu load, and increased performance. Pre-configured for low profile/half-height systems but includes a full profile bracket for versatility. Easy to install and use with full step-by-step instructions saving time and hassle. Windows 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), XP Embedded, POS Ready 2009, Embedded System 2009, CE 5.0/6.0, 2000, 98SE, 95, DOS Windows Server 2012, 2008 R2, 2003 Mac OS 10.4 and later (tested up to 10.10) Linux kernel 2.6.x
  • Brand Name
    StarTech.com
  • Card Height
    Low-profile
  • Country of Origin
    Taiwan
  • Data Transfer Rate
    460kB/s
  • Environmentally Friendly
    Yes
  • Form Factor
    Plug-in Card
  • Height
    0.8"
  • Host Interface
    PCI Express x1
  • Length
    4.1"
  • Limited Warranty
    2 Year
  • Manufacturer Part Number
    PEX1S553LP
  • Package Contents
    Full Profile Bracket Driver CD Instruction Manual 1 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART
  • Platform Supported
    PC Linux Mac
  • Product Model
    PEX1S553LP
  • Product Name
    1 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART
  • Product Type
    Serial Adapter
  • UART Type
    16550
  • Width
    3.1"
