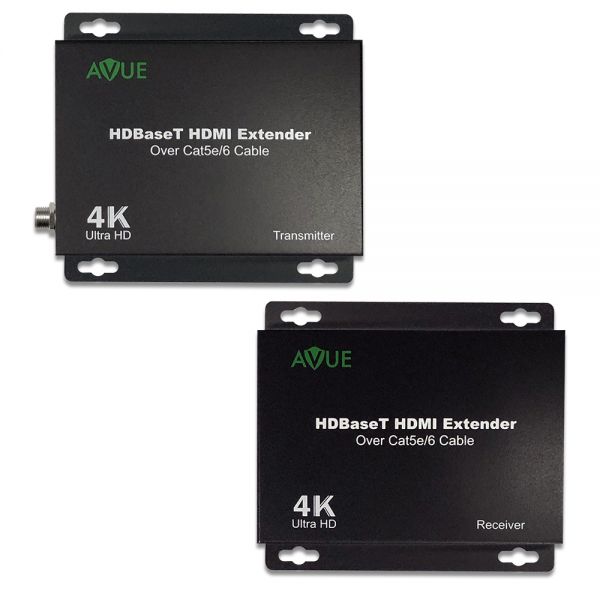

Avue HDMI-EX250, AVUE 4K HDBaseT HDMI Extender, up to 250ft. for 1080P/ 150ft. for 4K

1 Input Device - 1 Output Device - 250 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - Rack-mountable
Product Number: IGRM6DD252
$150.14
Free Shipping Estimated Delivery
Favorite
Compare
Request Quote

Product Description

Avue HDMI-EX250, AVUE 4K HDBaseT HDMI Extender, up to 250ft. for 1080P/ 150ft. for 4K - AVUE HDMI-EX250 is an HDMI extender using a single CAT5e/6/7 cable for up to 250 ft. for 1080P and 150ft. for 4K between the Sender TX and Receiver RX unit. Full HD support 1080P@6Hz@48b/Pixel, and 4Kx2K;
UTP/STP cable termination follows the standard of IEEE-568B. Transmission distance reaches up to 250 ft. under the video format of 1080P and 4K up to 150 ft.
POC (RX powered by TX) HDCP2.2/1.4 compliant. Supports Full HD 1080p@60Hz@48b/pixels, 3D and 4Kx2K with LED indicators to show the power status and ESD protection inside. Mounting ears supplied.
FEATURES
Supports Full HD 1080p@60Hz@48b/pixels, 3D and 4Kx2K
Over single Cat5e/6 up to 250ft. for 1080P/ 150 for 4K
POC (RX powered by TX)/ HDCP2.2/1.4 complaint/ESD Protection
Transfer bidirectional infrared control signal together w/ HDMI signal
Video Format Supported DTV/HDTV; 4K/1080P/1080i/720P/576P/480P/576i/480i
Supported Audio Format: Support DTS-HD, Dolby-HD
Input Video Signal 0.5-1.0 volts p-p
Input DDC Signal 5 volts p-p (TTL)
Poc Power: From TX to RX over Cat5/6 cable

Guides & Information

Product Specifications

  • Brand Name
    Avue
  • Connectivity Technology
    Wired
  • Form Factor
    Rack-mountable
  • Graphics Modes
    4K
  • HDMI In
    Yes
  • HDMI Out
    Yes
  • Manufacturer Part Number
    HDMI-EX250
  • Maximum Operating Distance
    250 ft
  • Network (RJ-45)
    Yes
  • Number of HDMI Inputs
    1
  • Number of HDMI Outputs
    1
  • Number of Input Devices Supported
    1
  • Number of Network (RJ-45) Ports
    1
  • Number of Output Devices Supported
    1
  • Package Contents
    1 x Sender TX Unit 1 x Receiver RX Unit 1 x 12VDC Power Adapters (RX can be powered from TX) 2 x IR TX Unit 2 x IR RX Unit 2 x Phoenix plugs for RS232 Cable Termination User's Manual
  • Product Model
    HDMI-EX250
  • Product Name
    HDMI-EX250, AVUE 4K HDBaseT HDMI Extender, up to 250ft. for 1080P/ 150ft. for 4K
  • Product Type
    Video Extender Transmitter/Receiver
  • Receiver Depth
    0.98"
  • Receiver Height
    4.13"
  • Receiver Weight (Approximate)
    1.54 lb
  • Receiver Width
    2.80"
  • Transmitter Depth
    0.98"
  • Transmitter Height
    4.13"
  • Transmitter Weight (Approximate)
    1.54 lb
  • Transmitter Width
    2.80"
