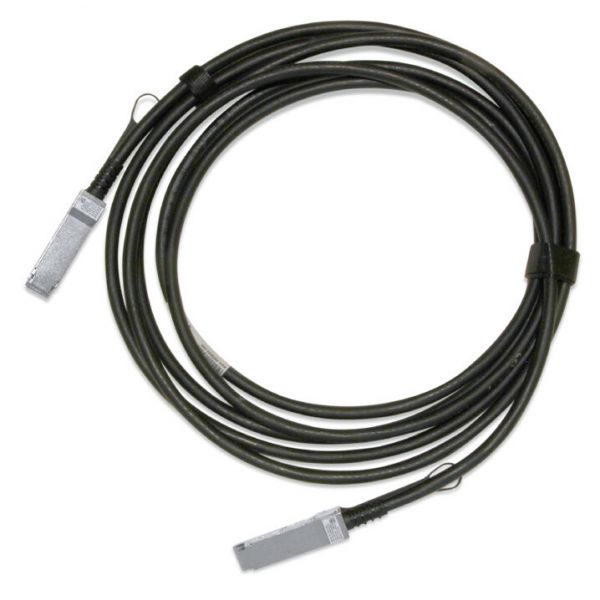

Mellanox Passive Copper Cable, ETH 100GbE, 100Gb/s, QSFP28, 0.5m, Black, 30AWG, CA-N

1.64 ft QSFP28 Network Cable for Network Device - First End: 1 x QSFP28 Network - Second End: 1 x QSFP28 Network - 100 Gbit/s - 30 AWG - Black
Product Number: SYNX5357840
  • Up to 100GbE data rate
  • Experience a simpler way to connect devices with the entire business network
  • SFF-8665 compliant QSFP28
  • Features QSFP28 cable type
More details
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items below to see if a replacement product is available.

Product Description

Mellanox Passive Copper Cable, ETH 100GbE, 100Gb/s, QSFP28, 0.5m, Black, 30AWG, CA-N - Mellanox MCP1600-C0xxxxxx direct attach copper (DAC) passive cable assemblies are high speed, costeffective alternatives to fiber optics in 100Gb/s Ethernet applications.
Mellanox QSFP28 passive copper cable contains four high-speed copper pairs, each operating at data rates of up to 25GbE. Each QSFP28 connector includes an EEPROM providing product information which can be read by the host system.
Mellanox's unique quality, passive, copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
MCP1600 cables up to 2m support IEEE 802.3bj CA-25G-N (Cable Assembly No-FEC) with low latency. Cables from 3m to 5m support IEEE 802.3bj CA-25G-L (Cable Assembly Long) with RS-FEC (Reed Solomon Forward Error Correction) enabled. For 2.5m and 3m cables there are two versions supporting either CA-25G-N or CA-25G-L.
Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability

  • Up to 100GbE data rate
  • Experience a simpler way to connect devices with the entire business network
  • SFF-8665 compliant QSFP28
  • Features QSFP28 cable type
  • Operating case temperature 0-70°C
  • Features Passive
  • Single 3.3V supply voltage
  • With 1 x QSFP28 Network connector, it is compatible with a network device
  • Bit Error Rate (BER) better than 1E-15 with Mellanox systems
  • Hot pluggable
  • RoHS compliant
  • LSZH (Low Smoke Zero Halogen) jacket
  • LF (Lead Free) HF (Halogen Free) PCB
Mellanox logo
Related Articles
 Need more information? Ask a Question

Product Specifications

  • Brand Name
    Mellanox
  • Cable Length
    1.64 ft
  • Cable Type
    QSFP28
  • Color
    Black
  • Connector on First End
    1 x QSFP28 Network
  • Connector on Second End
    1 x QSFP28 Network
  • Data Transfer Rate
    100 Gbit/s
  • Device Supported
    Network Device
  • Environmental Certification
    RoHS
  • Environmentally Friendly
    Yes
  • Features
    Halogen Free Lead-free Passive
  • Limited Warranty
    1 Year
  • Manufacturer Part Number
    MCP1600-C00AE30N
  • Material
    Copper Low Smoke Zero Halogen - Jacket
  • Product Line
    LinkX
  • Product Name
    Passive Copper Cable, ETH 100GbE, 100Gb/s, QSFP28, 0.5m, Black, 30AWG, CA-N
  • Product Type
    Network Cable
