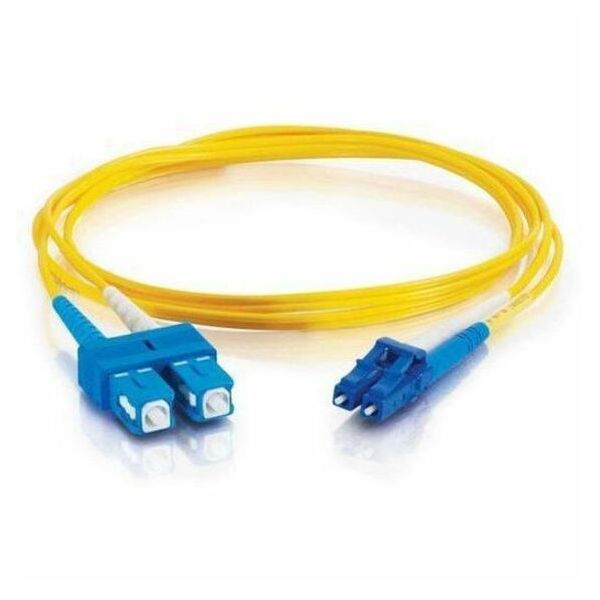

1m LC-SC 9/125 OS1 Duplex Singlemode PVC Fiber Optic Cable - Yellow

Product #: SYNX1765233
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

1m LC-SC 9/125 OS1 Duplex Singlemode PVC Fiber Optic Cable - Yellow
1m LC-SC 9/125 Duplex Single Mode OS2 Fiber Cable - Yellow - 3ft
Cost-effective solution that provides high bandwidth and transmission rates over longer distances. With LC to SC termination, this high quality fiber optic patch cable is specifically designed for gigabit ethernet applications. The patented injection molding process provides each connection greater durability in resisting pulls, strains and impacts from cabling installs.
Each cable is 100% optically inspected and tested for insertion loss before you receive it. A pull-proof jacket design surrounds the popular 9/125 Single-mode fiber, immune to electrical interference.
  • Pull-proof PVC jacket provides immunity to electrical interference
  • Connector 1: (1) LC Male Connector 2: (1) SC Male
  • Lifetime Warranty
  • Network cable provides secure access to networked data, ensuring swift and dependable connectivity for consistent system performance
  • Features fiber optic cable type to deliver high-bandwidth data transmission with minimal signal loss, ensuring optimal performance in network setups
  • Molded feature designed for convenience and ease of use, ensuring smooth operation and improved functionality across supported devices
  • Features SC Network - Male connector, permitting you to establish a secure link with a network device for dependable functionality
Related Articles
Need more information? Ask a Question

Product Specifications

  • Additional Information
    Buffer material: PVC Jacket OD: 3.0 mm Attenuation @1310 nm: 1.0 dB/km Attenuation @1550 nm: 0.75 dB/km Maximum tensile load: 100 N/cm Loaded min. bend radius: 5 cm Unloaded min. bend radius: 3 cm Crush resistance: 750 N/cm Impact resistance: 1000 cycles Flex resistance: 5000 cycles Buffer OD: 900 µm
  • Brand Name
    C2G
  • Cable Characteristic
    Patch Cable
  • Cable Length
    3.28 ft
  • Cable Type
    Fiber Optic
  • Connector Type on First End
    LC Network - Male
  • Connector Type on Second End
    SC Network - Male
  • Connector on First End
    2 x LC Male
  • Connector on First End Details
    2 x LC Network - Male
  • Connector on Second End
    2 x SC Male
  • Connector on Second End Details
    2 x SC Network - Male
  • Device Supported
    Network Device
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
  • Environmentally Friendly
    Yes
  • Features
    Crush Resistant Flex Resistant Impact Resistant Molded Pull Resistant Connector Strain Resistant
  • Fiber Optic Cable Core/Cladding Specification
    9/125 µm
  • Fiber Optic Mode
    Single-mode
  • Jacket Type
    Plenum
  • Limited Warranty
    Lifetime
  • Manufacturer Part Number
    29190
  • Product Color
    Yellow
  • Product Name
    Duplex Fiber Patch Cable
  • Product Type
    Network Cable
