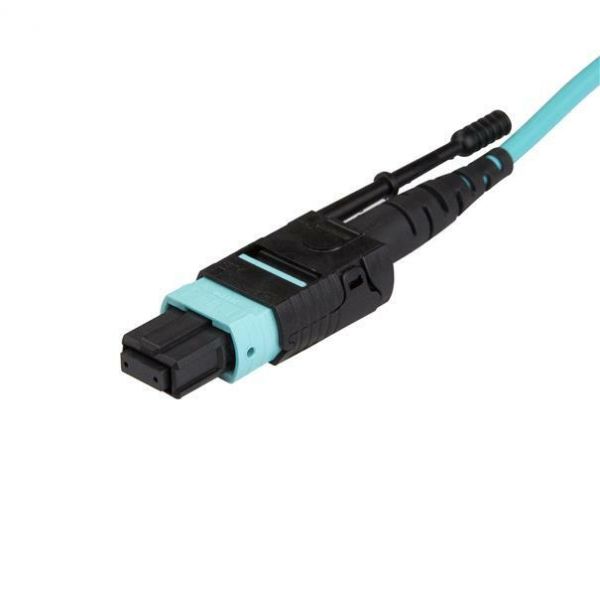

StarTech.com 2m (6ft) MTP(F)/PC OM3 Multimode Fiber Optic Cable, 12F Type-A, OFNP, 50/125µm LOMMF, 40G Networks - MPO Fiber Patch Cord

2m (6.6ft) MTP(F)/PC to MTP(F)/PC OM3 Fiber Cable; 40 Gbps; 50/125µm Core; Bandwidth: 2000MHz·km at 850nm w/ VCSEL source; Outer Diameter: 3.0mm; OFNP-rated Jacket; Temp Range: -10 to 70°C (14 to 158°F)
Product Number: SYNX5262938
  • OM3 FIBER CABLE: MTP/MPO Plenum-Rated OM3 Multimode Fiber Cable delivers up to 40 Gbps; This 12-fiber cable supports different networking devices at varying speeds; Ideal for high density connections to servers, switches, and Storage Area Networks (SANs)
  • QUALITY CONSTRUCTION: OFNP jacket emits low-smoke and fumes if combusted; 50/125?m fiber core/cladding is immune to EMI; MTP Push-Pull Tabs with Flexible Extensions facilitates convenient installation and removal
  • RATINGS AND RELIABILITY: Individually tested for signal integrity; Test report included with each cable; Rated for plenum and in-wall installations; 12-fiber MTP/MPO connectors with PC polished ends keeps insertion loss below 0.5dB
  • COMPATIBILITY: OM3 Multimode cable with MTP connectors supports 40 Gbps for high-density network applications such as SANs, data servers, and QSFP+ transceivers
More details
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

StarTech.com 2m (6ft) MTP(F)/PC OM3 Multimode Fiber Optic Cable, 12F Type-A, OFNP, 50/125µm LOMMF, 40G Networks - MPO Fiber Patch Cord - This MPO/MTP fiber optic cable houses 12 fibers and lets you interface between different networking devices of varying speeds. For example, you can set up a one-to-one connection between two 40Gbps switches or servers. Alternatively, you can connect a 40Gbps switch and break out the 40Gbps into six duplex 10Gbps LC connections on a patch panel or network cassette, which then fans out to individual 10Gbps devices.
The MTP connector provides 12 times the density of an SC connector and saves circuit card and rack space. Plus, the push-and-pull tabs optimize accessibility by letting you install or remove the connectors with one hand without needing additional tools.
The MTP to MTP cable is housed in a plenum-rated jacket and is ideal for installations where CMP fire rating is required.
Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag.
The MPO12PL2M from StarTech.com is backed by a lifetime warranty.
More from the Manufacturer

  • OM3 FIBER CABLE: MTP/MPO Plenum-Rated OM3 Multimode Fiber Cable delivers up to 40 Gbps; This 12-fiber cable supports different networking devices at varying speeds; Ideal for high density connections to servers, switches, and Storage Area Networks (SANs)
  • QUALITY CONSTRUCTION: OFNP jacket emits low-smoke and fumes if combusted; 50/125?m fiber core/cladding is immune to EMI; MTP Push-Pull Tabs with Flexible Extensions facilitates convenient installation and removal
  • RATINGS AND RELIABILITY: Individually tested for signal integrity; Test report included with each cable; Rated for plenum and in-wall installations; 12-fiber MTP/MPO connectors with PC polished ends keeps insertion loss below 0.5dB
  • COMPATIBILITY: OM3 Multimode cable with MTP connectors supports 40 Gbps for high-density network applications such as SANs, data servers, and QSFP+ transceivers
  • SPECS: 2m (6.6ft); Color: Aqua (OM3); 40 Gbps; MTP(F)/PC to MTP(F)/PC; 12-Fiber Type-A Straight Pinout; 850nm or 1300nm VCSEL; Modal Bandwidth: ?2000MHz?km at 850nm; Cable OD: 3.0mm; Insertion Loss: ?0.5dB, Return Loss: ?20dB; Backed for Life
  • Allows you to access all of the networked data, swiftly and securely
  • Features fiber optic cable type to better accommodate your precise power supply requirements with maximum charging productivity
  • Fully compatible with media converters
Guides & Information
Related Articles
 Need more information? Ask a Question
Read More

Product Specifications

  • Brand Name
    StarTech.com
  • Cable Length
    6.56 ft
  • Cable Type
    Fiber Optic
  • Connector Gender on First End
    Female
  • Connector Gender on Second End
    Female
  • Connector Type on First End
    MTP/MPO Network - Female
  • Connector Type on Second End
    MTP/MPO Network - Female
  • Connector on First End Details
    1 x MTP/MPO Network - Female
  • Connector on Second End Details
    1 x MTP/MPO Network - Female
  • Core/Cladding Diameter
    50/125 µm
  • Country of Origin
    China
  • Data Transfer Rate
    40 Gbit/s
  • Device Supported
    Hub Media Converter Network Device Patch Panel Router Server Switch
  • Environmentally Friendly
    Yes
  • Fiber Optic Mode
    Multi-mode
  • Jacket Type
    OFNP Plenum
  • Limited Warranty
    Lifetime
  • Manufacturer Part Number
    MPO12PL2M
  • Product Color
    Aqua
  • Product Name
    Fiber Optic Network Cable
  • Product Type
    Network Cable
