Tripp Lite by Eaton NetCommander 16-Port Cat5 KVM over IP Switch - 19 in. LCD 2 Remote + 1 Local User 1U Rack-Mount

3 Computer(s) - 19" LCD - 1366 x 768 - 2 x Network (RJ-45)PS/2 Port - 1 x USB - Keyboard - TouchPad - 120 V AC, 230 V AC Input Voltage - 1U High - PC, Linux - Black - TAA Compliant
Product Number: SYNX4935449
  • 19 in. LCD supports video resolutions up to 1366 x 768
  • Cat5e/6 cabling connects computers/servers up to 100 ft. away
  • Simultaneous support for 3 users-1 local, 2 remote
  • Supports IPv4 and IPv6
More details
$2,297.64
Ships Free - This items ships free with your order
Delivered by Mon 5/6 Mon 5/6 - This is an estimated delivery timeline
Non Returnable - This is a non returnable item

Product Description

Tripp Lite by Eaton NetCommander 16-Port Cat5 KVM over IP Switch - 19 in. LCD 2 Remote + 1 Local User 1U Rack-Mount - Tripp Lite's B070-016-19-IP2 NetCommander 16-Port Cat5 1U Rack-Mount Console KVM Switch includes a full keyboard, 19-inch LCD screen and touchpad in a 1U rack-mount console. It connects up to 16 computers and/or servers and allows you to control them locally or remotely via LAN, WAN or web browser.Connect computers/servers up to 100 feet away using Cat5e/6 cabling and a compatible Tripp Lite B078-Series server interface unit (B078-101-USB2 required for Fast Virtual Media speeds up to 12 Mbps). Dual 10/100 LAN ports ensure uninterrupted remote access in case one port should fail. A local user and two remote users can log on simultaneously and switch between the 16 ports using an on-screen display, hotkeys or remote toolbar. Multi-level password protection prohibits unauthorized access.The LCD supports video resolutions up to 1366 x 768. Dual serial ports allow control of serial devices, such as IP PDUs, firewalls and routers. You can assign individual ports to an IP PDU port to power on/off the server connected to that port. The heavy-duty steel housing slides neatly into the rack when not in use. Free NetCommander-AXS management software is available to access and control your Tripp Lite NetCommander IP KVM switches (B070 and B072 Series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDUs, and manage KVM settings. This software can be found at the Technical Support link in the right-hand column.
Features
Includes 16-Port KVM Switch, 19 in. LCD, Keyboard and Touchpad
Mounts in 1U of space in EIA-standard 19 in. rack
Connects up to 16 computers/servers up to 100 ft. away via Cat5e/6 cabling and Tripp Lite B078 Series SIUs
Computers with DisplayPort or HDMI connectors require Tripp Lite VGA adapters, such as P134-06N-VGA-V2 or P131-06N
Fast Virtual Media KVM system: U.S. Patent #9,417,720
BIOS-level control of any server brand and model
IP Remote Access for Fewer Trips to the Server Room
Java-based application allows 24/7 remote access from anywhere via web browser over secure IP connection
Non-browser client that can bypass browser-related Java security prompts is available
Up to 3 users (1 local, 2 remote) can sign in simultaneously
Up to 5 users can share a single session
Supports both IPv4 and IPv6
Dual 10/100 Mbps LAN ports for uninterrupted remote access in case one port should fail
Simplifies IT Tasks
Users can switch between ports via on-screen display, hotkeys or remote toolbar
Dual RJ45 serial ports for connecting IP devices, such as PDUs, firewalls and routers
Assign individual ports to an IP PDU port to power on/off the server connected to that port
Virtual Media allows.iso file to be mounted to target server and accessed directly
Supports RADIUS and LDAP/S authentication
Log tracks events on your installation
Large 19 in. LCD Screen
Supports video resolutions up to 1366 x 768; 1920 x 1080 remotely
DDC emulation allows for optimal output to LCD
Advanced Security Features
Multi-level password protection-create administrator accounts with full access and user accounts with limited access
128-bit AES and HTTPS encryption for highest security standards

  • 19 in. LCD supports video resolutions up to 1366 x 768
  • Cat5e/6 cabling connects computers/servers up to 100 ft. away
  • Simultaneous support for 3 users-1 local, 2 remote
  • Supports IPv4 and IPv6
  • Mounts in 1U of space in EIA-standard 19 in. rack
Tripp Lite by Eaton logo
Guides & Information
Related Articles
 Need more information? Ask a Question

Product Specifications

  • Brand Name
    Tripp Lite by Eaton
  • Certifications & Standards
    UL 60950-1 (USA) CAN/CSA (Canada) FCC Part 15 Class A CE IEC 60950-1
  • Country of Origin
    Taiwan
  • Depth
    69.2"
  • Device Type
    LCD Rack Console
  • Display Screen Type
    LCD
  • Environmentally Friendly
    Yes
  • Height
    4.3"
  • Input Voltage
    120 V AC 230 V AC
  • KVM Technology
    Digital
  • Keyboard
    Yes
  • Limited Warranty
    1 Year
  • Manufacturer Part Number
    B070-016-19-IP2
  • Network (RJ-45)
    Yes
  • Number of Computers Supported
    3
  • Number of Network (RJ-45) Ports
    2
  • Number of USB Ports
    1
  • PS/2 Port
    Yes
  • Package Contents

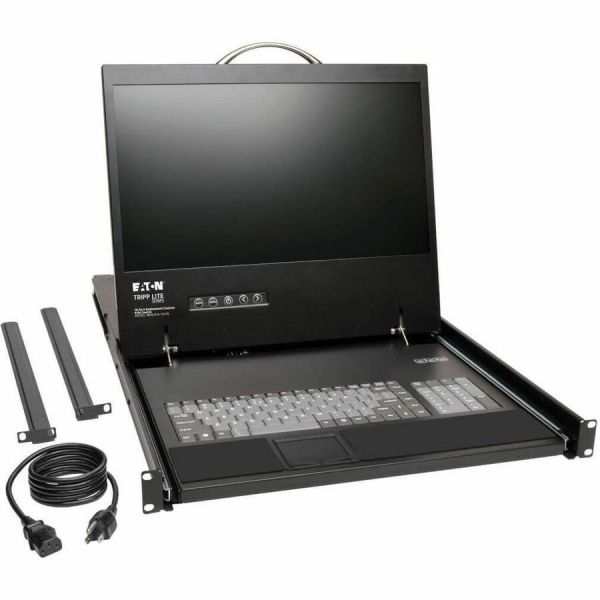

    B070-016-19-IP2 NetCommander 16-Port Cat5 1U Rack-Mount Console KVM Switch C13 to NEMA 5-15P Power Cord, 6 ft. Rack-Mounting Hardware Quick Start Guide
  • Platform Supported
    Linux PC
  • Pointing Device Type
    TouchPad
  • Product Color
    Black
  • Product Line
    NetCommander
  • Product Model
    B070-016-19-IP2
  • Product Name
    B070-016-19-IP2 NetCommander 16-Port Cat5 1U Rack-Mount Console KVM Switch
  • Product Type
    LCD Rack Console
  • Rack Height
    1U
  • Screen Resolution
    1366 x 768
  • Screen Size
    19"
  • USB
    Yes
  • Width
    47.7"
