Vertiv Cybex SC800 Secure KVM| 4 Port Universal DP/H Single Display| CAC PP4.0
Product #:
SYNX5935436
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description

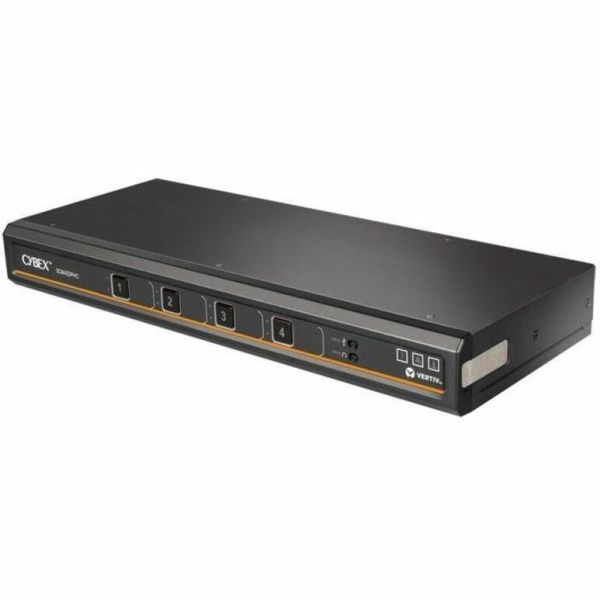

Vertiv Cybex SC800 Secure KVM| 4 Port Universal DP/H Single Display| CAC PP4.0
Secure Desktop KVM Switches | Secure KVM Switch | Single Head | NIAP Certified | Secure Keyboard | 2 to 8 Port, Secure Isolated Channels | Running up to UHD 4K at 60Hz | 3-Year Full Coverage Factory Warranty - Optional Extended Warranty Available
The Vertiv Avocent Cybex SC845DPH-400 secure desktop KVM switch provides secure connectivity across multiple resources. It lets users switch between computers with different security levels while preventing data leaks. Designed for security-conscious organizations, the SC845DPH-400 isolates each connected system, enforcing unidirectional data flow to safeguard sensitive information. It supports a maximum resolution of 3840 x 2160 at 60 Hz on a single display, delivering crisp, clear visuals. The four universal video ports (DisplayPort and HDMI) allow easy connection of up to two systems, while a 3.5mm audio jack supports alerts and notifications. Certified to the latest NIAP Common Criteria Protection Profile for Peripheral Sharing Switch (version 4.0), the SC845DPH-400 also features active intrusion detection and tamper-evident labels to alert users of unauthorized access. With a universal power supply and 4K support, it offers both security and performance in a streamlined solution.
More from the Manufacturer
More from the Manufacturer
- NIAP 4.0 Certified: Security: Secure 4-port KVM with always-on anti-tampering, NIAP 4.0 certified.
- Enhanced Situational Awareness: Equipped with customizable indicators that display active channels.
- Versatile Video Support: Supports DP, HDMI, and DVI-I up to 3840 x 2160 resolution for HD visuals.
- Zero Delay Switching: Instant mouse and keyboard switching with emulation for lag-free transitions.
- Peripheral Isolation: Combines keyboard, mouse, and display into one setup for a clutter-free space.
- Use this KVM Switchbox and eliminate the need for manually switching cables between sources
- Let you connect 4 computers to 1 local users
- Enjoy watching any class of content on 3840 x 2160 resolution
- USB port for easy connectivity
- Designed to be used as a desktop device
Product Specifications
-
Brand NameVertiv AVOCENT
-
Certifications & StandardsNIAP 4.0 Certified
-
Connectivity TechnologyWired
-
Country of OriginUnited States
-
DVINo
-
Depth5"
-
DisplayPortYes
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
-
FeaturesTamper Resistant Intrusion Detection
-
Form FactorDesktop Rack-mountable
-
Graphic Mode4K
-
HDMIYes
-
Height1.7"
-
Input Voltage Range100VAC-240VAC
-
KVM TechnologyDigital & Analog
-
Limited Warranty3 Year
-
Management PortNo
-
Manufacturer Part NumberSC845DPH-400
-
Maximum Operating Distance10 ft
-
Maximum Video Resolution3840 x 2160
-
Network (RJ-45)No
-
Number of Computers Supported4
-
Number of DVI Ports0
-
Number of DisplayPorts4
-
Number of HDMI Ports4
-
Number of Local Users Supported1
-
Number of Network (RJ-45) Ports0
-
Number of PS/2 Ports4
-
Number of Remote Users Supported0
-
Number of USB Ports3
-
Number of VGA Ports0
-
PS/2 PortYes
-
Package ContentsCybex SC800 Secure Desktop KVM, Single Head Monitor, 4 Port, Common Access Card (CAC), NIAP Version 4.0, TAA Compliant (SC845DPH-400)Power Supply
-
Product LineCybex
-
Product ModelSC845
-
Product NameCybex SC800 Secure Desktop KVM, Single Head Monitor, 4 Port, Common Access Card (CAC), NIAP Version 4.0, TAA Compliant (SC845DPH-400)
-
Product Series800
-
Product TypeKVM Switchbox
-
Rack Height1U
-
USBYes
-
VGANo
-
Width13.7"
