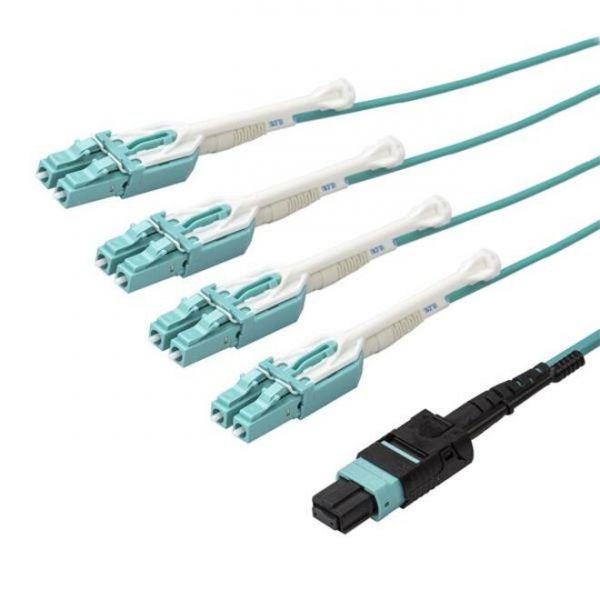

StarTech.com 1m (3ft) MTP(F)/PC to 4x LC/PC Duplex Breakout OM3 Multimode Fiber Optic Cable, OFNP, 40G, 8F Type-A

1m (3.3ft) MTP(F)/PC to 4x LC/PC Duplex Breakout OM3 Multimode Fiber Optic Cable; OFNP Plenum; 8F Type-A; 50/125µm Core; Bandwidth: 2000MHz·km at 850nm w/ VCSEL source; Outer Diameter: 3.0mm; Temp Range: -10 to 70°C (14 to 158°F)
Product Number: SYNX5262942
  • OM3 FIBER CABLE: MTP(F)/PC to 4x LC/PC Duplex Breakout Multimode Fiber Cable features a single 40 Gbps connection to four LC duplex connectors; Ideal for high density connections between servers, switches, QSFP+ and SFP+ transceivers
  • QUALITY CONSTRUCTION: OFNP jacket emits low-smoke and fumes if combusted; 50/125?m fiber core/cladding is immune to EMI; MTP Push-Pull Tabs with Flexible Extensions facilitates convenient installation and removal
  • RATINGS AND RELIABILITY: Individually tested for signal integrity; Test report included with each cable; Rated for plenum and in-wall installations; MTP/MPO and LC connectors with PC polished ends maintains low insertion loss
  • COMPATIBILITY: OM3 MTP/MPO multimode cable supports 40 Gbps for high-density network applications such as SANs, data servers, and QSFP+ transceivers; Connect from a 40GBase-SR4 QSFP+ module to four LC SFP+ transceivers
More details
$140.51
Ships Free - This items ships free with your order
Delivered by Wed 5/1 Thu 5/2 - This is an estimated delivery timeline
Non Returnable - This is a non returnable item

Product Description

StarTech.com 1m (3ft) MTP(F)/PC to 4x LC/PC Duplex Breakout OM3 Multimode Fiber Optic Cable, OFNP, 40G, 8F Type-A - This MPO/MTP to 4x LC breakout cable lets you fan out a single 40Gbps connection from a 40GBase-SR4 QSFP+ transceiver to four 10Gbps LC SFP+ transceivers.
The push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand, without using additional tools. Plus, the slim uniboot design of the LC connectors saves space and improves cable management.
The MPO cable is housed in a plenum-rated jacket and is ideal for installations where CMP fire rating is required.
Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag.
The MPO8LCPL1M from StarTech.com is backed by a lifetime warranty.
More from the Manufacturer

  • OM3 FIBER CABLE: MTP(F)/PC to 4x LC/PC Duplex Breakout Multimode Fiber Cable features a single 40 Gbps connection to four LC duplex connectors; Ideal for high density connections between servers, switches, QSFP+ and SFP+ transceivers
  • QUALITY CONSTRUCTION: OFNP jacket emits low-smoke and fumes if combusted; 50/125?m fiber core/cladding is immune to EMI; MTP Push-Pull Tabs with Flexible Extensions facilitates convenient installation and removal
  • RATINGS AND RELIABILITY: Individually tested for signal integrity; Test report included with each cable; Rated for plenum and in-wall installations; MTP/MPO and LC connectors with PC polished ends maintains low insertion loss
  • COMPATIBILITY: OM3 MTP/MPO multimode cable supports 40 Gbps for high-density network applications such as SANs, data servers, and QSFP+ transceivers; Connect from a 40GBase-SR4 QSFP+ module to four LC SFP+ transceivers
  • SPECS: 1m (3.3ft); Color: Aqua (OM3); 40 Gbps; MTP(F)/PC to 4x Duplex LC Breakout; 850nm or 1300nm VCSEL; Modal Bandwidth: ?2000MHz?km at 850nm; Cable OD: 3.0mm (MTP), 2.0mm (LC); Insertion Loss: ?0.5dB (MTP), ?0.2dB (LC)
  • Allows you to access all of the networked data, swiftly and securely
  • Features Fiber Optic cable type to better accommodate your precise requirements with maximum productivity
  • Uniboot Connector feature for your convenience and ease of usage
  • Fully compatible with network devices
  • Experience a simpler way to connect devices with the entire business network
  • Features Fiber Optic cable type for optimal performance and better dependability
  • Uniboot Connector feature for better usability and increased efficiency
Guides & Information
Related Articles
 Need more information? Ask a Question
Read More

Product Specifications

  • Brand Name
    StarTech.com
  • Cable Characteristic
    Patch Cable
  • Cable Length
    3.28 ft
  • Cable Type
    Fiber Optic
  • Connector Gender on First End
    Female
  • Connector Gender on Second End
    Male
  • Connector Type on First End
    MTP/MPO Network - Female
  • Connector Type on Second End
    LC Network - Male
  • Connector on First End Details
    1 x MTP/MPO Network - Female
  • Connector on Second End Details
    8 x LC Network - Male
  • Core/Cladding Diameter
    50/125 µm
  • Country of Origin
    China
  • Data Transfer Rate
    40 Gbit/s
  • Device Supported
    Hub Media Converter Network Device Patch Panel Router Switch
  • Environmentally Friendly
    Yes
  • Features
    Uniboot Connector Push-Pull Tab
  • Fiber Optic Mode
    Multi-mode
  • Jacket Type
    CMP Plenum OFNP
  • Limited Warranty
    Lifetime
  • Manufacturer Part Number
    MPO8LCPL1M
  • Product Color
    Aqua
  • Product Name
    Fiber Optic Patch Duplex Network Cable
  • Product Type
    Network Cable
