StarTech.com USB-C Triple Monitor Docking Station - Triple 4K HDMI/DP USB-C Dock - 5x USB Hub - GbE - 100W PD - Universal / Multi Monitor
+3View All
Product Description
StarTech.com USB-C Triple Monitor Docking Station - Triple 4K HDMI/DP USB-C Dock - 5x USB Hub - GbE - 100W PD - Universal / Multi Monitor
Triple Monitor 4K Universal Laptop Docking Station - Connect two HDMI and/or DisplayPort monitors via DisplayLink and a 3rd HDMI monitor via DP 1.2 Alt Mode - 3x USB-A/2x USB-C Hub; 100W PD; GbE; 3.5mm Audio - 3.3ft/1m USBC cable - Win/macOS/Chrome
This USB-C Triple 4K Monitor Docking Station enables wide workstation flexibility, featuring compatibility with USB-C, or Thunderbolt 3/Thunderbolt 4 laptops, and supporting multiple combinations of Ultra HD 4K DisplayPort and HDMI monitors.

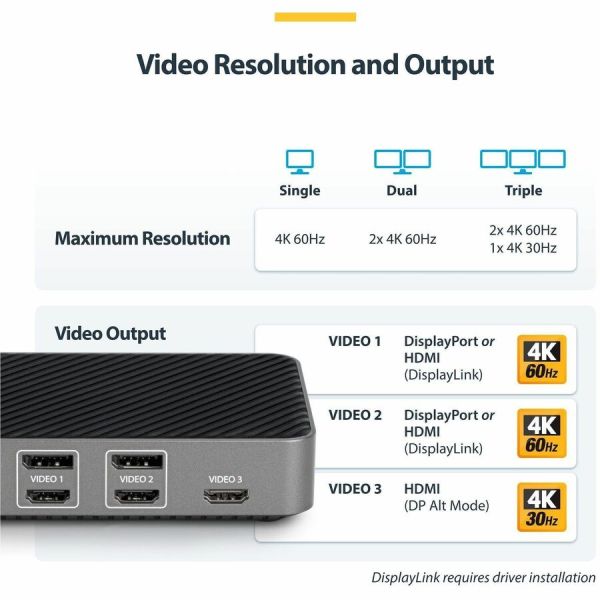

Enhance Productivity with Triple-4K Video
This triple-4K docking station uses a combination of its integrated DisplayLink graphics controller and your computer's DP Alt Mode enabled USB-C port to provide three independent 4K displays.
Connect any combination of HDMI and/or DisplayPort monitors to Video Ports 1 and 2 (DisplayLink); at resolutions up to 4K at 60Hz. Connect an HDMI monitor to Video Port 3 (DP Alt-Mode), at resolutions up to 4K at 30Hz. This high-resolution video performance is ideal for detailed graphics applications, enhancing your productivity by expanding the display capabilities of your laptop.

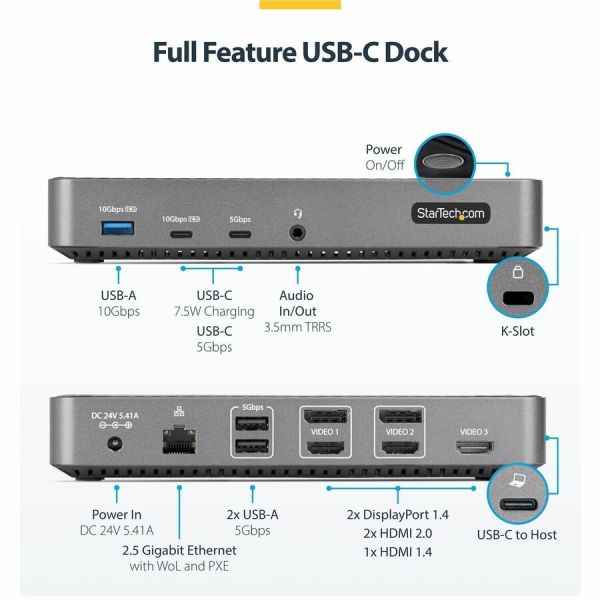

Full-Featured Docking Station
Connect the docking station to your computer's USB 3.2 Gen 2 (10Gbps) Type-C port to provide a wide range of port connectivity, options and features. The docking station features:
2x USB-A and 1x USB-C (USB 3.2 Gen 1 5Gbps) ports for USB peripheral devices.
1x USB-A and 1x USB-C (USB 3.2 Gen 2 10Gbps) port that supports BC 1.2 with 7.5W (1.5A) for charging tablets and smartphones.
1x Gigabit Ethernet port with WoL (Wake-on-LAN) for a wired Local Area Network (LAN) connection.
1x 3.5mm 4-position TRRS Audio Jack for a 3.5mm headset.
100W USB Power Delivery
The USB-C docking station supports 100W USB Power Delivery with the included power adapter. This allows you to charge the connected host device, as well as the devices connected to the BC 1.2 USB charging ports.
For added protection to connected USB devices, the BC 1.2 enabled USB charging ports feature Overcurrent Protection (OCP). OCP prevents USB peripherals from drawing more power than is safely allocated for the port.
Easy Deployment
Connect the dock to your host computer, using the included 3.3ft (1m) USB-C cable. The docking station supports all major operating systems, including Windows, macOS, ChromeOS, and Ubuntu. This dock was designed for seamless integration with any compatible USB-C equipped device within your organization, including Lenovo X1/Thinkpad P Series, Dell Latitudes/Precision/XPS 15, HP Envy, Surface Laptop 3, and M1 Pro/Max/M2 MacBooks. The dock features a side-facing K-Slot for added security in shared workspaces (e.g., BYOD hoteling/hot-desking).
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
Advanced Windows Layout Utility: Setup and save custom windows layouts.
Mac Address Pass-Through Utility: Improve network security.
USB Event Monitoring Utility: Track and log connected USB devices.
Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
This product is backed for 3-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.

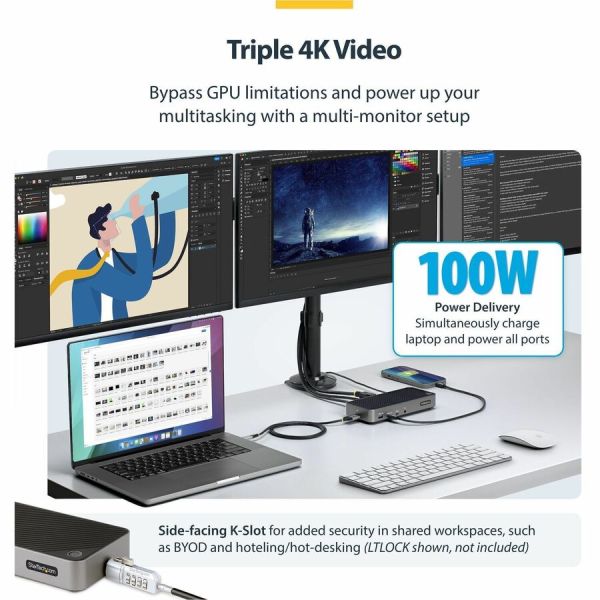

Enhance Productivity with Triple-4K Video
This triple-4K docking station uses a combination of its integrated DisplayLink graphics controller and your computer's DP Alt Mode enabled USB-C port to provide three independent 4K displays.
Connect any combination of HDMI and/or DisplayPort monitors to Video Ports 1 and 2 (DisplayLink); at resolutions up to 4K at 60Hz. Connect an HDMI monitor to Video Port 3 (DP Alt-Mode), at resolutions up to 4K at 30Hz. This high-resolution video performance is ideal for detailed graphics applications, enhancing your productivity by expanding the display capabilities of your laptop.
Full-Featured Docking Station
Connect the docking station to your computer's USB 3.2 Gen 2 (10Gbps) Type-C port to provide a wide range of port connectivity, options and features. The docking station features:
2x USB-A and 1x USB-C (USB 3.2 Gen 1 5Gbps) ports for USB peripheral devices.
1x USB-A and 1x USB-C (USB 3.2 Gen 2 10Gbps) port that supports BC 1.2 with 7.5W (1.5A) for charging tablets and smartphones.
1x Gigabit Ethernet port with WoL (Wake-on-LAN) for a wired Local Area Network (LAN) connection.
1x 3.5mm 4-position TRRS Audio Jack for a 3.5mm headset.
100W USB Power Delivery
The USB-C docking station supports 100W USB Power Delivery with the included power adapter. This allows you to charge the connected host device, as well as the devices connected to the BC 1.2 USB charging ports.
For added protection to connected USB devices, the BC 1.2 enabled USB charging ports feature Overcurrent Protection (OCP). OCP prevents USB peripherals from drawing more power than is safely allocated for the port.
Easy Deployment
Connect the dock to your host computer, using the included 3.3ft (1m) USB-C cable. The docking station supports all major operating systems, including Windows, macOS, ChromeOS, and Ubuntu. This dock was designed for seamless integration with any compatible USB-C equipped device within your organization, including Lenovo X1/Thinkpad P Series, Dell Latitudes/Precision/XPS 15, HP Envy, Surface Laptop 3, and M1 Pro/Max/M2 MacBooks. The dock features a side-facing K-Slot for added security in shared workspaces (e.g., BYOD hoteling/hot-desking).
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
Advanced Windows Layout Utility: Setup and save custom windows layouts.
Mac Address Pass-Through Utility: Improve network security.
USB Event Monitoring Utility: Track and log connected USB devices.
Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
This product is backed for 3-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.
- UNIVERSAL USB-C DOCK: High-performance dock works with all major operating systems such as Windows, MacOS, ChromeOS and Ubuntu; Ideal for mixed-device fleets and laptop refresh cycles, simplifying standardization, and user onboarding across departments
- GPU AGNOSTIC: Bypass GPU limitations for multi-monitor setups, maximize ROI, and future-proof your IT infrastructure with a dock that ensures compatibility across all hardware platforms, including Intel, Apple Silicon, AMD, and Snapdragon X Copilot+ PCs
- TRIPLE 4K DISPLAYS FOR EXPANDED PRODUCTIVITY: Connect up to three 4K monitors through a single USB C port; This dock supports two 4K 60Hz monitors via DisplayLink (HDMI 2.0 or DisplayPort 1.2) and a third 4K 30Hz HDMI display through DP 1.2 Alt Mode
- 100W POWER DELIVERY: Docking station includes a fully spec'd power adapter to charge the host laptop while supplying power across all ports; Downstream USB and USB-C ports deliver up to 7.5W (1.5A) for mobile or battery-powered devices
- THE IT PRO'S CHOICE: Our docking stations are rigorously tested in our Innovation Lab to ensure enterprise-grade reliability and cross-platform compatibility; Built to support large-scale deployments, Windows 11 upgrades, and the shift to AI-enabled PCs
- Wired connectivity technology is highly feasible, offers maximum usability
- USB 3.2 (Gen 2) Type C host interface Offers a more refined structure and safer to use connectivity
- Docking Station provides a dependable and fast charging solution for your notebook with maximum productivity
- Gigabit Ethernet Ethernet technology for a reliable, convenient way of communication and connectivity
- Power Adapter power source type for your docking station provides optimal performance with maximum usability
- The HDMI supports digital audio/video output to a wide assortment of HD gadgets
- 5 USB ports allows powerful and efficient transfer of data with maximum productivity
Loading...
Product Specifications
-
Brand NameStarTech.com
-
CompatibilityDesigned for seamless integration with any compatible USB-C equipped device within your organization, including Lenovo X1/Thinkpad P Series, Dell Latitudes/Precision/XPS 15, HP Envy, Surface Laptop 3, and M1 Pro/Max MacBooks.
-
Connectivity TechnologyWired
-
Country of OriginChina
-
Device SupportedNotebook Monitor Tablet Workstation
-
DisplayPortYes
-
DisplayPort Version1.4
-
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)
-
Environmentally FriendlyYes
-
Ethernet TechnologyGigabit Ethernet
-
HDMIYes
-
HDMI Version2.0
-
Height1.20"
-
Host InterfaceUSB 3.2 (Gen 2) Type C
-
Kensington Security SlotYes
-
Limited Warranty3 Year
-
Manufacturer Part Number116N-USBC-DOCK
-
Network (RJ-45)Yes
-
Number of DisplayPorts2
-
Number of Displays Supported3
-
Number of HDMI Ports3
-
Number of USB 3.2 Gen 1 Type-A Ports1
-
Number of USB 3.2 Gen 2 Type-A Ports1
-
Number of USB Type-A Ports3
-
Number of USB Type-C Ports2
-
Operating System SupportedAndroid macOS Mac OS X 10.11 El Capitan Mac OS X 10.15 Catalina Windows 10 Windows 11 Windows 7 Windows 8 Windows 8.1 Mac OS X 10.12 Sierra Mac OS X 10.14 Mojave macOS Big Sur macOS Monterey Ubuntu ChromeOS
-
Package Contents1 x 3 ft [1 m] USB-C Host Cable 1 x Power Adapter (North America) 1 x Quick-Start Guide Docking Station
-
Power Source TypePower Adapter
-
Power Supply InputInput Voltage: 100 - 240 AC
-
Product ColorSpace Gray
-
Product NameDocking Station
-
Product TypeDocking Station
-
Screen Mode Supported2K 4K
-
Supported Resolutions3840 x 2160 4096 x 2160
-
ThunderboltYes
-
Total Number of USB Ports5
-
USB Type-AYes
-
Width3.30"
