StarTech.com 2-Port 10Gbps USB-A & USB-C PCIe Card Adapter - USB 3.1 Gen 2 PCI Express Expansion Ad - PEXUSB311AC3
Product #:
ODFN3738786
Pinch to zoom
Loading...
Product Description

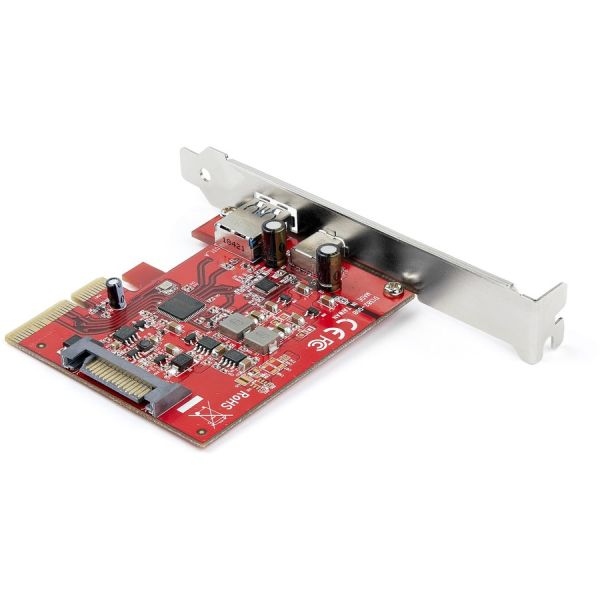

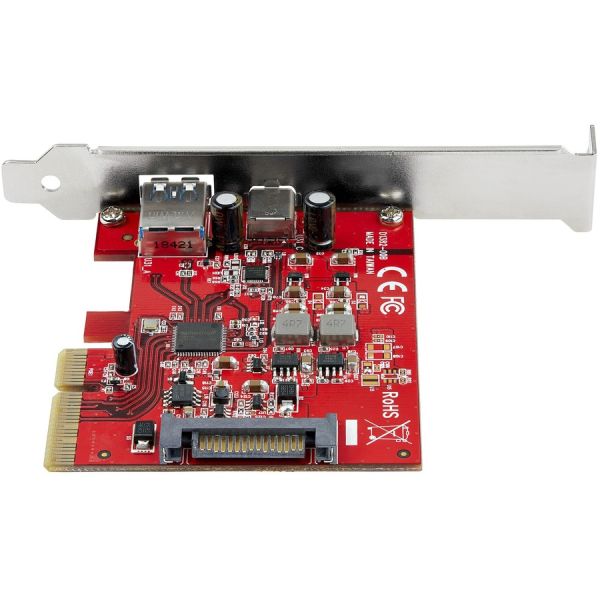

StarTech.com 2-Port 10Gbps USB-A & USB-C PCIe Card Adapter - USB 3.1 Gen 2 PCI Express Expansion Ad - PEXUSB311AC3
USB-A USB-C PCI Express card w/Multiple INs maintains max speed w/mixed speed devices - 2-Port 10Gbps Expansion Host Controller Card 1xUSB-C and 1xUSB-A - PCIe 3.0 x4 Add-on Card Adapter w/ UASP - Windows/Linux/macOS - Incl. full/low-profile bracket
This USB 3.2 Gen 2 card lets you add one USB-C port and one USB-A port to your computer, through a PCI Express slot. It enables you to upgrade your current system by adding two USB 3.2 Gen 2 ports to your computer and giving you access to data transfer speeds up to 10Gbps per port. USB 3.2 Gen 2 (also known as USB 3.1) PCIe Add-On card supports Multiple INs, maintains optimal bandwidth even when mixed speed devices are connected.
Plus, by adding one USB-C and one USB-A port to your PC, you can easily connect legacy, modern, and future USB devices, regardless of the USB connector type.
By adding 10Gbps USB ports to your computer, you can harness the speed of USB 3.2 Gen 2 and rest assured you're ready for both current and future high-bandwidth USB-A and USB-C devices.
With higher data throughput support, this USB 3.2 PCIe card is a necessity for external drives, drive enclosures, and many other USB 3.2 peripherals. Plus, the expansion card with SATA power enables supplemental power to the USB ports (when motherboard power is insufficient) providing up to 5V 3A/15W via the USB-C port and 5V 0.9A/4.5W via the USB-A port. The card is ideal for use with high performance external storage solutions.
Connecting older peripherals isn't a problem. This versatile dual-port USB 3.2 card is backward compatible with legacy USB 3.2 Gen 1/2.0 devices that use the common USB Type-A port, so you can eliminate the added expense and aggravation of purchasing new devices. You can also connect older devices on the USB Type-C port using a variety of USB-C cables and adapters.
The USB 3.2 card is compatible with a broad range of Windows, macOS and Linux operating systems. Plus, the high-quality card includes both standard-profile and low-profile brackets, making it easy to install in full or small form-factor PCs and servers.
The card supports USB data transfer speeds of 10Gbps. But, you can experience transfer speeds up to 70% faster than conventional USB, when connected to a computer that also supports UASP. With UASP you can utilize the full potential of a SATA III SSD or HDD. UASP is supported in Windows 8, macOS (10.8 or above), and Linux.
In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.2 Gen 2 at peak performance.
At the same peak in testing, UASP also shows an 80% reduction in required processor resources.
The PEXUSB311AC3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
More from the Manufacturer
Plus, by adding one USB-C and one USB-A port to your PC, you can easily connect legacy, modern, and future USB devices, regardless of the USB connector type.
By adding 10Gbps USB ports to your computer, you can harness the speed of USB 3.2 Gen 2 and rest assured you're ready for both current and future high-bandwidth USB-A and USB-C devices.
With higher data throughput support, this USB 3.2 PCIe card is a necessity for external drives, drive enclosures, and many other USB 3.2 peripherals. Plus, the expansion card with SATA power enables supplemental power to the USB ports (when motherboard power is insufficient) providing up to 5V 3A/15W via the USB-C port and 5V 0.9A/4.5W via the USB-A port. The card is ideal for use with high performance external storage solutions.
Connecting older peripherals isn't a problem. This versatile dual-port USB 3.2 card is backward compatible with legacy USB 3.2 Gen 1/2.0 devices that use the common USB Type-A port, so you can eliminate the added expense and aggravation of purchasing new devices. You can also connect older devices on the USB Type-C port using a variety of USB-C cables and adapters.
The USB 3.2 card is compatible with a broad range of Windows, macOS and Linux operating systems. Plus, the high-quality card includes both standard-profile and low-profile brackets, making it easy to install in full or small form-factor PCs and servers.
The card supports USB data transfer speeds of 10Gbps. But, you can experience transfer speeds up to 70% faster than conventional USB, when connected to a computer that also supports UASP. With UASP you can utilize the full potential of a SATA III SSD or HDD. UASP is supported in Windows 8, macOS (10.8 or above), and Linux.
In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.2 Gen 2 at peak performance.
At the same peak in testing, UASP also shows an 80% reduction in required processor resources.
The PEXUSB311AC3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
More from the Manufacturer
- THE STARTECH.COM ADVANTAGE: StarTech.com offers a 2-year warranty & free lifetime 24 hour support on this dual port USB-A & USB-C PCI Express Host Controller card w/ full & low profile bracket incl.
- POWER: Expansion card w/ SATA power supplies supplemental power to the USB ports (when motherboard power is insufficient) providing up to 5V 3A/15W via the USB-C port & 5V 0.9A/4.5W via the USB-A port
- MAX PERFORMANCE WITH USB DEVICES: 2-port USB-A & USB-C PCIe card adapter supports USB Attached SCSI Protocol (UASP) optimizing USB performance w/ external storage devices like SSDs, HDDs, NVMe drives
- COMPATIBILITY: Installs in full or low-profile PCIe 3.0 x4 desktop/server slot (lower performance w/PCI-e 2.0); Windows/Linux/macOS auto driver install (Windows 8 & up); Works with USB 3.2/3.1/3.0/2.0
- HIGH PERFORMANCE: USB 3.1 Gen 2 or USB 3.2 Gen 2x1 PCIe Add-On card supports Multiple INs, maintains max bandwidth even when mixed speed devices are connected; 10Gbps per port; 1x USB-A & 1x USB-C | Upgraded version of our popular card PEXUSB311AC2
Product Specifications
-
Additional InformationOS Compatibility: Windows 7, 8, 8.1, 10, 11 Windows Server 2008 R2, 2012, 2016, 2019 Linux 3.5 and up - LTS Versions only macOS 13.0, 12.0, 11.0, 10.15, 10.14, 10.13
-
Additional Warranty Information2-Year Limited
-
Brand NameStarTech.com
-
Cord Length4/10 ft
-
Country of OriginCN
-
Depth4-7/10 in.
-
Dimensions7/10 in. X 3-2/10 in. X 4-7/10 in.
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Waste Electrical and Electronic Equipment Directive (WEEE)
-
Environmentally FriendlyYes
-
Form FactorPlug-in Card
-
Height7/10 in.
-
Host InterfacePCI Express x4
-
Length4.7"
-
Limited Warranty2 Year
-
ManufacturerSTARTECH.COM
-
Manufacturer Part NumberPEXUSB311AC3
-
Number of SATA Ports1
-
Operating System SupportedWindows 7; Windows 8; Windows 8.1; Windows 10; Windows 11; Windows Server 2008 R2; Windows Server 2012; Windows Server 2016; Windows Server 2019; Windows Server 2022; Linux 3.5; Mac OS X 10.13 High Sierra; Mac OS X 10.14 Mojave; Mac OS X 10.15 Catalina; Mac OS X 11.0 Big Sur; Mac OS X 12.0 Monterey; Mac OS X 13.0 Ventura
-

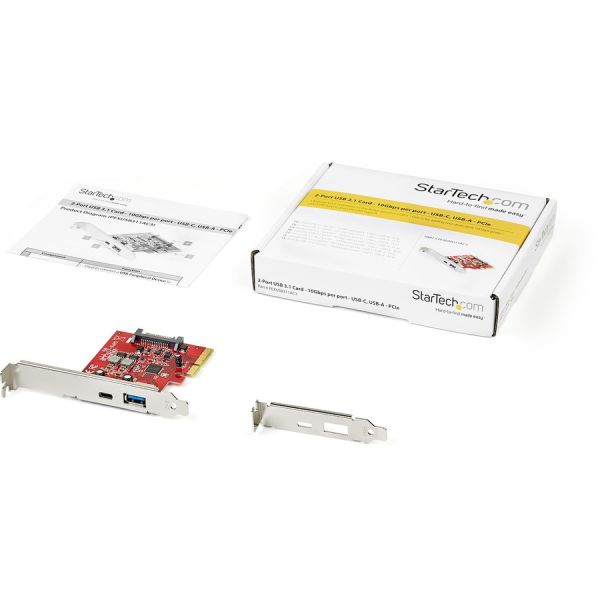

Package ContentsUSB Adapter 1 x Low Profile Bracket 1 x Quick Start Guide
-
Platform SupportedPC Mac Linux
-
Product NameUSB Adapter
-
Product TypeUSB Hub
-
RefurbishedN
-
Total Number of USB Ports2
-
UASP SupportYes
-
Width3-2/10 in.
