StarTech.com Thunderbolt 4 Dock, 96W Power Delivery, Single 8K / Dual Monitor 4K 60Hz, 3x TB4/USB4 ports, 4x USB-A, SD, GbE, 0.8m cable

Certified Thunderbolt 4 docking station 96W PD - Works w/TB4 laptops and TB3 MacBooks (11.0+) - Single 8K or dual 4K60Hz on TB4/USB4 laptops | Single 4K60Hz/5K/6K on M1 MacBooks | Dual 4K60Hz/5K on TB3 Intel/TB4 MacBooks - 3x TB4/USB4/4x USB-A/SD/GbE
Product Number: SYNX6466185
  • HIGH-PERFORMANCE THUNDERBOLT 4 CERTIFIED DOCK: Easy Driverless setup; 3x downstream Thunderbolt 4 (40Gbps) ports; 4x USB-A ports (3x 10Gbps/1x BC 1.2 fast charge); SD card reader; GbE; 2.6ft TB4 cable; Front host port; Kensington-style security slots;
  • CERTIFIED 96W POWER DELIVERY: Includes fully spec'd power adapter to simultaneously charge laptop (96W PD) & power to all ports; Downstream TB4 / TB3 / USB4 ports support 15W (3A) charging; 1x BC 1.2 USB-A port with 7.5W (1.5A) for charging mobile devices
  • COMPATIBILITY: Windows, macOS & Ubuntu; Up to single 8K30Hz/6K60Hz/5K60Hz or dual monitors at 4K60Hz; Works w/all Thunderbolt 3/4 laptops; Dual display on Apple M1/M2/M3 Max & Pro MacBooks; Single Display on Apple M1/M2/M3 MacBooks & iPad Pro M1 and later
  • 3x THUNDERBOLT 4 PORTS: The dock features three downstream Thunderbolt 4 ports for connecting TB4, TB3, USB4 or USB peripherals; The TB4 ports can be used for connecting up to two external displays supporting dual 4K 60Hz or a single 5K/6K/8K monitor
More details
$290.17
Ships Free - This items ships free with your order
Delivered by Tue 5/7 Tue 5/7 - This is an estimated delivery timeline
Non Returnable - This is a non returnable item

Product Description

StarTech.com Thunderbolt 4 Dock, 96W Power Delivery, Single 8K / Dual Monitor 4K 60Hz, 3x TB4/USB4 ports, 4x USB-A, SD, GbE, 0.8m cable - This Thunderbolt 4 Certified docking station lets you use a single Thunderbolt 4, Thunderbolt 3 or USB4 port to add high-performance connectivity and charge your Thunderbolt 4 or USB4 Windows laptop, or your Thunderbolt 3 M1 or Intel MacBook (macOS 11 Big Sur or higher).

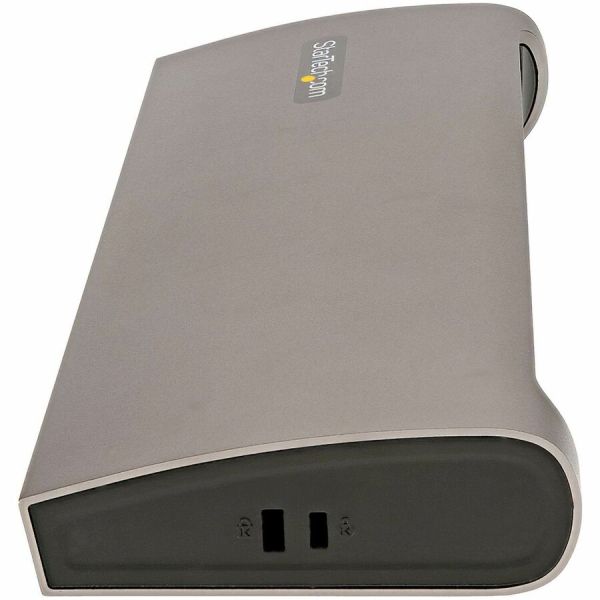

For easy deployment the dock includes a 2.6 ft. (0.8 m) Thunderbolt 4 cable that connects to the front-facing host port, and features Kensington-style security slots.
High-Performance Port Connectivity

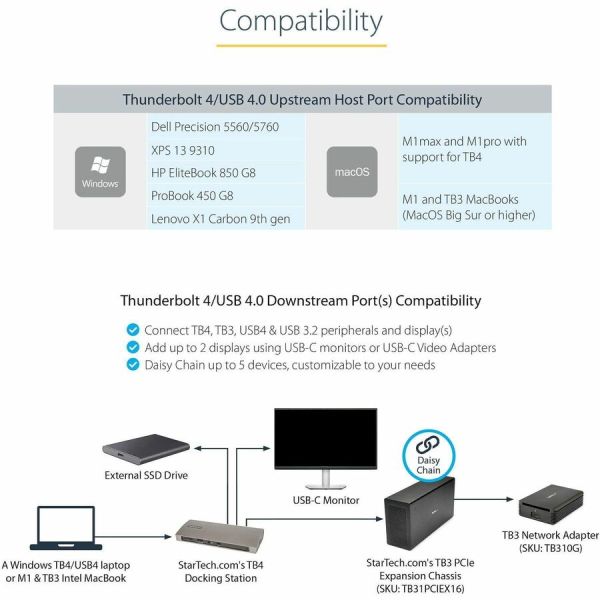

The docking station utilizes the high throughput available to your computer's Thunderbolt 4, Thunderbolt 3, or USB4 port to provide a wide range of port connectivity to suit a variety of applications, including daisy chaining up to five devices from the TB4/USB4 ports.

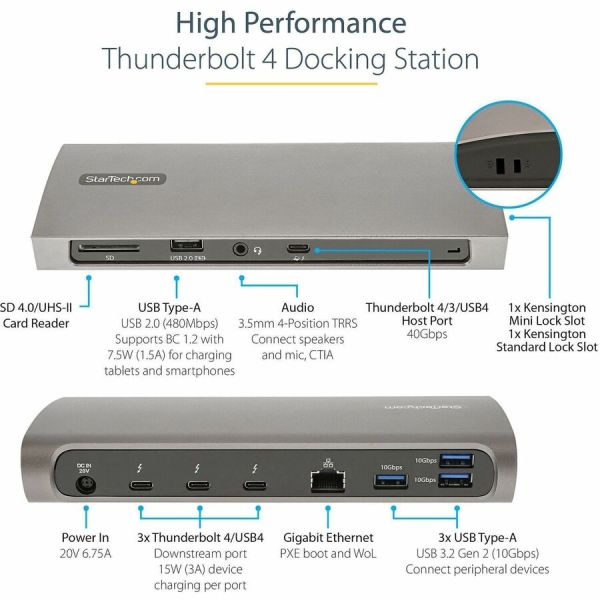

The dock features:
3x downstream Thunderbolt 4/USB4 ports to flexibility connect Thunderbolt 4, Thunderbolt 3, and USB peripheral devices and display(s), with the added benefit of 15W (3A) device charging per each port.
3x USB 3.2 Gen 2 (10Gbps) Type-A portsto connect USB peripheral devices.
1x USB 2.0 (480Mbps) Type-A port that supports BC 1.2 with 7.5W (1.5A) for charging tablets and smartphones, or connecting USB Human Interface Device(s) (HID), such as a USB transceiver, to minimize signal interference.
1x Gigabit Ethernet port with PXE boot and WoL to connect to a wired Local Area Network (LAN).
1x Secure Digital (SD) 4.0/UHS-II card reader to externally access SD, SDHC and SDXC memory cards.
1x 3.5mm 4-position TRRS Audio Jack to connect a 3.5mm headset.
High-Resolution Display Connectivity

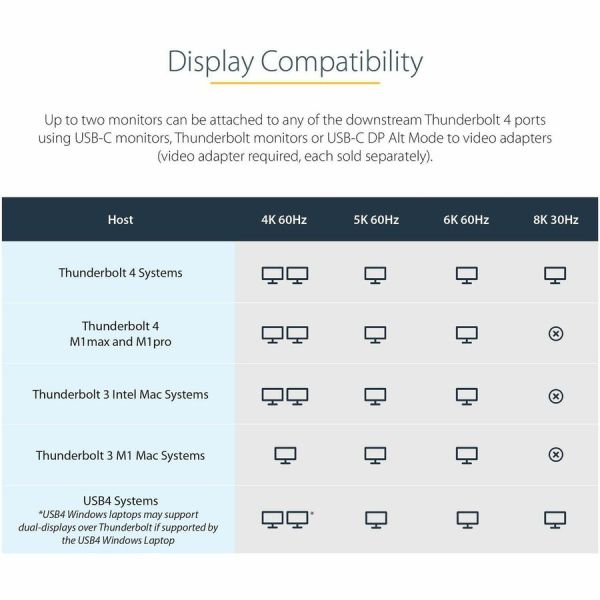

Up to two monitors can be attached to any of the downstream Thunderbolt 4 ports using USB-C monitors, Thunderbolt monitors or USB-C DP Alt Mode to video adapters (video adapter required, each sold separately).
On Thunderbolt 4 Windows laptops the dock can support dual monitors with resolutions up to 4K 60Hz, or a single monitor with resolutions up to 8K/6K/5K/4K 60Hz.
On M1 Thunderbolt 3 MacBooks the dock can support a single monitor with resolutions up to 6K/5K/4K 60Hz.
On Intel Thunderbolt 3 MacBooks the dock can support dual monitors with resolutions up to 4K 60Hz, or a single monitor with resolutions up to 5K/4K 60Hz.
On USB4 Windows laptops the dock can support a single monitor with resolutions up to 8K/6K/5K/4K 60Hz.

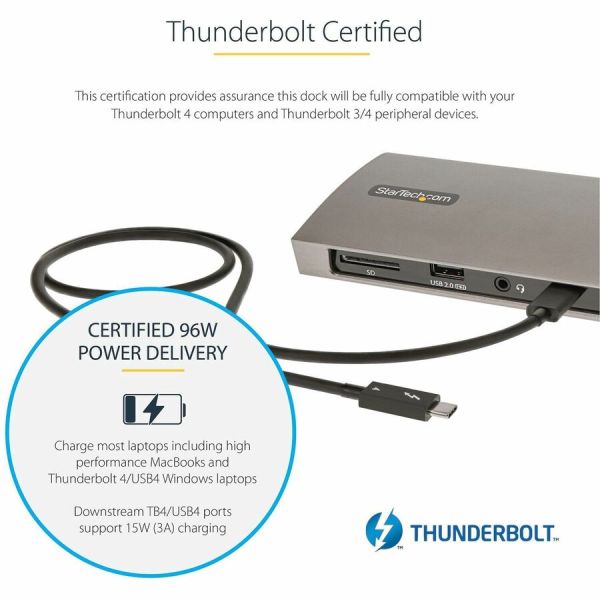

96W USB Power Delivery Certified
The Thunderbolt 4 docking station includes a 135W power adapter and supports 96W USB power delivery. This enables the dock to charge your MacBooks and Thunderbolt 4 and USB4 Windows laptops. Plus, the added power provides downstream TB4/USB4 ports with 15W (3A) for device charging, and enables one of the USB-A ports to support BC 1.2, for charging tablets and smartphones.
More from the Manufacturer

  • HIGH-PERFORMANCE THUNDERBOLT 4 CERTIFIED DOCK: Easy Driverless setup; 3x downstream Thunderbolt 4 (40Gbps) ports; 4x USB-A ports (3x 10Gbps/1x BC 1.2 fast charge); SD card reader; GbE; 2.6ft TB4 cable; Front host port; Kensington-style security slots;
  • CERTIFIED 96W POWER DELIVERY: Includes fully spec'd power adapter to simultaneously charge laptop (96W PD) & power to all ports; Downstream TB4 / TB3 / USB4 ports support 15W (3A) charging; 1x BC 1.2 USB-A port with 7.5W (1.5A) for charging mobile devices
  • COMPATIBILITY: Windows, macOS & Ubuntu; Up to single 8K30Hz/6K60Hz/5K60Hz or dual monitors at 4K60Hz; Works w/all Thunderbolt 3/4 laptops; Dual display on Apple M1/M2/M3 Max & Pro MacBooks; Single Display on Apple M1/M2/M3 MacBooks & iPad Pro M1 and later
  • 3x THUNDERBOLT 4 PORTS: The dock features three downstream Thunderbolt 4 ports for connecting TB4, TB3, USB4 or USB peripherals; The TB4 ports can be used for connecting up to two external displays supporting dual 4K 60Hz or a single 5K/6K/8K monitor
  • OUR ADVANTAGE: Included connectivity tools for IT Pros and IT help-desk support teams with Network MAC Address Pass-Through for network security, WiFi Auto Switching for improved network performance, USB Event Monitoring, and Windows Layout
Guides & Information
Related Articles
 Need more information? Ask a Question
Read More

Product Specifications

  • Brand Name
    StarTech.com
  • Compatibility
    Intel Evo Tiger Lake (11th gen) Lenovo X1 Carbon 9th Gen Apple M1 & TB3 MacBooks (11.0 & up) Dell Notebooks: Precision 5560 Precision 5760 XPS 13 9310 HP Notebooks: EliteBook 850 G8 ProBook 450 G8
  • Connectivity Technology
    Wired
  • Country of Origin
    Thailand
  • Device Supported
    Notebook/Tablet PC/Desktop PC/Smartphone/Monitor
  • DisplayPort
    No
  • Ethernet Technology
    Gigabit Ethernet
  • HDMI
    No
  • Height
    1.10"
  • Host Interface
    Thunderbolt
  • Kensington Security Slot
    Yes
  • Limited Warranty
    3 Year
  • Manufacturer Part Number
    TB4CDOCK
  • Maximum Power Supply Wattage
    100 W
  • Memory Card Reader
    Yes
  • Memory Card Supported
    microSD microSDHC microSDXC MultiMediaCard (MMC) SD SDHC SDXC
  • Network (RJ-45)
    Yes
  • Number of Displays Supported
    2
  • Number of USB 2.0 Ports
    1
  • Number of USB 3.2 Gen 2 Type-A Ports
    3
  • Number of USB Type-A Ports
    4
  • Operating System Supported
    macOS Windows

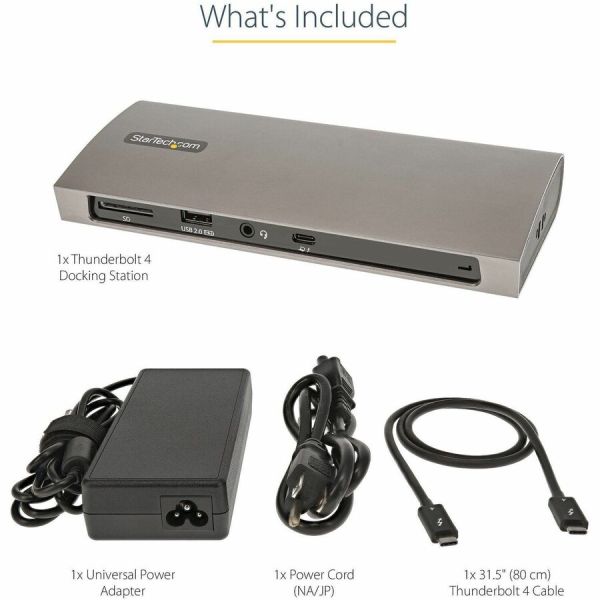

  • Package Contents
    Docking Station Thunderbolt 4 Cable Universal Power Adapter (NA/JP) Quick-Start Guide
  • Product Color
    Black Gray
  • Product Name
    Docking Station
  • Product Type
    Docking Station
  • Screen Mode Supported
    8K
  • Supported Resolutions
    3840 x 2160 5120 x 2880 7680 x 4320
  • Thunderbolt
    Yes
  • USB Type-A
    Yes
  • Width
    7.60"
