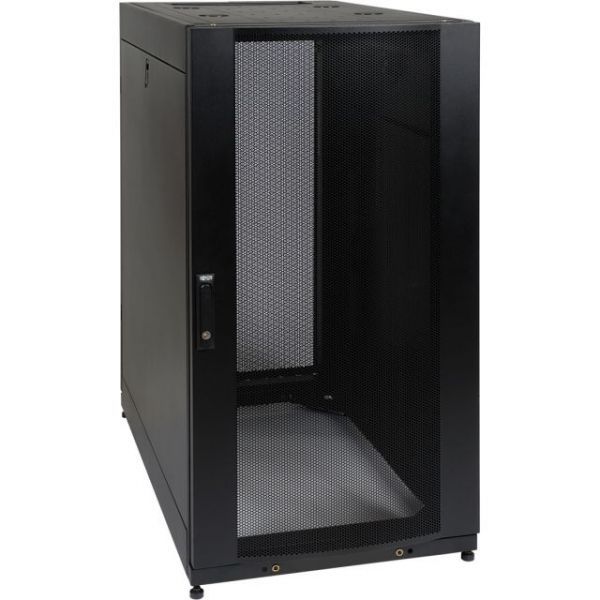

Tripp Lite by Eaton 25U SmartRack Standard-Depth Half-Height Server Rack Enclosure Doors and Side Panels

19" 25U
Product Number: SYNX1113171
  • Ships fully assembled
  • Secures 25U of 19 in. rack equipment up to 37" depth (1050mm) deep
  • 4 interior vertical posts with non-threaded square hole openings
  • 3000 lbs (1360.8 kgs) stationary / 2250 lbs (1020.6 kgs) rolling load capacity
More details
$984.53
Loading...
Ships Free - This items ships free with your order
Delivered by Fri 4/5 Mon 4/8 - This is an estimated delivery timeline
Non Returnable - This is a non returnable item
Loading...

Product Description

Tripp Lite by Eaton 25U SmartRack Standard-Depth Half-Height Server Rack Enclosure Doors and Side Panels - Tripp Lite's SR25UB premium SmartRack Enclosure Cabinet is packed with features designed to simplify rack equipment installations and rack equipment maintenance: top and bottom cable routing ports, perforated door and side panels to promote efficient airflow, adjustable vertical mounting rails and more. And as part of the SmartRack family, the SR25UB is compatible with Tripp Lite's extensive range of rackmount accessories, enabling you to customize your solution to meet any requirement. The SR25UB ships fully assembled for quick installation and comes with a 5-year warranty.
The SR25UB has 25U of capacity and is compatible with all standard 19-inch rack equipment. The front and rear pairs of vertical rails feature square mounting holes and are numbered by rack space for easy reference. The rails are adjustable in quarter-inch increments to accommodate equipment depths from 4 to 37 inches. Adjustment is quick and convenient: simply unscrew the rails, slide them to the desired depth and restore the screws. The rails feature square mounting holes and are capable of supporting up to 3000 lbs (1360.8 kgs) of equipment with included installation hardware (2250 lbs (1020.6 kgs) rolling capacity).
With a locking, reversible front door and locking, removable side panels, SR25UB provides safe, secure installation for all equipment. This prevents unauthorized access to installed equipment while making it easy for authorized personnel to perform inspections, maintenance and equipment replacement. The enclosure meets all requirements toward PCI DSS compliance.
The top and bottom panels of the SR25UB are furnished with vents designed to help remove warm air from the enclosure and draw in cool air by convection. They also support installation of standard user-supplied case fans (Tripp Lite SRFANROOF). The top and bottom panels are also provided with ports for cable routing.
To simplify deployment, the SR25UB comes with casters that enable it to be maneuvered into to desired location, and then secured in place by adjusting the unit's levelers. Note: the casters are intended for minor position adjustments within the final installation area only and are not designed for moving the enclosure over long distances.

More from the Manufacturer

  • Ships fully assembled
  • Secures 25U of 19 in. rack equipment up to 37" depth (1050mm) deep
  • 4 interior vertical posts with non-threaded square hole openings
  • 3000 lbs (1360.8 kgs) stationary / 2250 lbs (1020.6 kgs) rolling load capacity
  • Locking, removable, reversible front and rear doors
  • Locking, removable side panels
  • Includes equipment mounting hardware
  • 5-year limited warranty
Read More

Product Specifications

  • Additional Information
    Ship fully assembled Textured powder coat finish Massive front to rear ventilation capacity Casters and levelers Roll through 7 foot doorways Open bottom for cable access Top cable access openings
  • Brand Name
    Tripp Lite by Eaton
  • Compatibility
    Compatibility with air management accessories
  • Country of Origin
    China
  • Depth
    43"
  • Height
    49"
  • Limited Warranty
    5 Year
  • Manufacturer Part Number
    SR25UB
  • Maximum Weight Capacity
    3000 lb
  • Product Line
    SmartRack
  • Product Model
    SR25UB
  • Product Name
    SR25UB Rack Enclosure Server Cabinet - 25U - 19"
  • Product Type
    Rack Cabinet
  • Rack Height
    25U
  • Rack Width
    19"
  • Width
    23.6"
