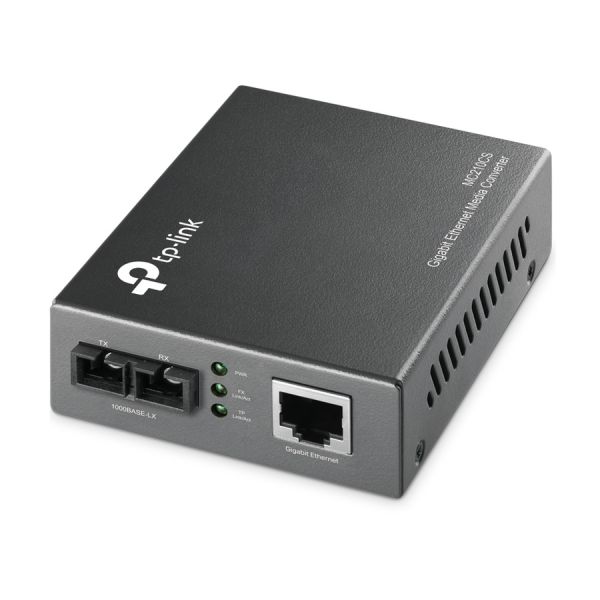

TP-LINK MC210CS - Gigabit SFP to RJ45 Fiber Media Converter - Fiber to Ethernet Converter

Grey - 10/100/1000Mbps RJ45 Port to 1000Base-LX Single-Mode Fiber
Product Number: SYNX3298592
  • Designed to convert 1000BASE-LX fiber to 1000Base-T copper media or vice versa.
  • Works at 1000Mbps in Full-Duplex mode for both TX port and FX port.
  • Supports auto MDI/MDIX for TX port and provides switch configuration of Force/Auto transfer mode for FX port.
  • Extends fiber distance up to 12.4 miles (20km).
More details
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

TP-LINK MC210CS - Gigabit SFP to RJ45 Fiber Media Converter - Fiber to Ethernet Converter - The MC210CS is a media converter designed to convert 1000BASE-FX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-FX standards, the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. It works at 1310nm on both transmitting and receiving data.

  • Designed to convert 1000BASE-LX fiber to 1000Base-T copper media or vice versa.
  • Works at 1000Mbps in Full-Duplex mode for both TX port and FX port.
  • Supports auto MDI/MDIX for TX port and provides switch configuration of Force/Auto transfer mode for FX port.
  • Extends fiber distance up to 12.4 miles (20km).
  • Easy-to-view LED indicators provide status to monitor network activity easily.
  • External power supply. Wave Length: 1310nm. Max Power Consumption: 1.8W.
  • Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
  • With Optical Fiber cable, get the desired data transfer rate up to a required distance
  • With 1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable
  • No hassle of internal installation, install externally
Guides & Information
Related Articles
 Need more information? Ask a Question

Product Specifications

  • Additional Information
    Wavelength: 1310 nm Provides switch configuration of Force /Auto transfer mode for FX port
  • Brand Name
    Tp-Link
  • Country of Origin
    China
  • Depth
    2.9"
  • Environmentally Friendly
    Yes
  • Ethernet Technology
    Gigabit Ethernet
  • Fiber Mode Supported
    Single-mode
  • Form Factor
    External
  • Height
    1.1"
  • Limited Warranty
    2 Year
  • Manufacturer Part Number
    MC210CS
  • Maximum Distance Supported
    9.32 Mile
  • Media Type Supported
    Optical Fiber
  • Network (RJ-45)
    Yes
  • Network Technology
    1000Base-FX 1000Base-T
  • Number of Network (RJ-45) Ports
    1
  • Number of SC Ports
    1
  • Package Contents
    MC210CS Gigabit Ethernet Media Converter Power Adapter Installation Guide
  • Power Consumption
    1.80 W
  • Power Source
    Power Adapter
  • Product Model
    MC210CS
  • Product Name
    MC210CS Gigabit Ethernet Media Converter
  • Product Type
    Transceiver/Media Converter
  • Total Number of Ports
    2
  • Width
    3.7"
