Mellanox ConnectX-6 VPI 100Gigabit Ethernet Card

PCI Express 3.0 x16 - 1 Port(s) - Optical Fiber
Product Number: SYNX5796005
  • Industry-leading throughput, low CPU utilization and high message rate
  • 101 Gigabit Ethernet card will undoubtedly ease bandwidth and management constraints on service provider networks
  • Highest performance and most intelligent fabric for compute and storage infrastructures
  • This 16000 MB/s bandwidth PCI Express 3.0 x16 adapter ensures easy connectivity and plug-in form-factor for affordable and reliable Ethernet network
More details
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items below to see if a replacement product is available.

Product Description

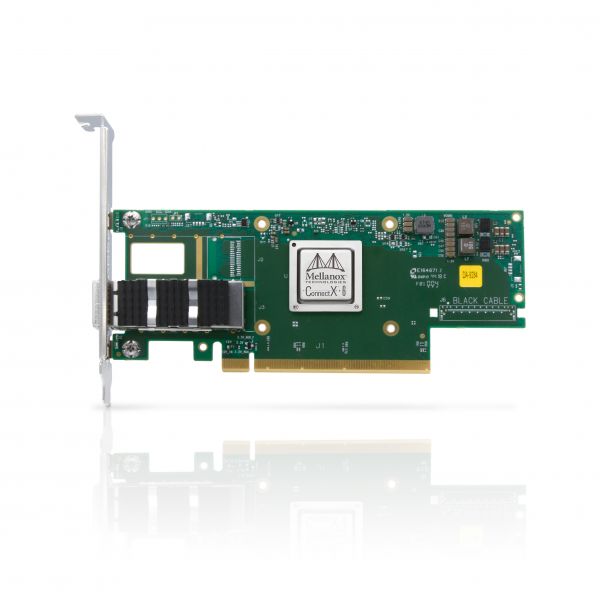

Mellanox ConnectX-6 VPI 100Gigabit Ethernet Card - Mellanox MCX653105A-ECAT-SP (Single Pack) ConnectX-6 VPI Adapter Card HDR100 EDR IB and 100GbE Single-Port QSFP56 PCIe3.0/4.0 x16 Tall Bracket
Mellanox MCX653105A-ECAT-SP (Single Pack MCX653105A-ECAT available through distribution.) ConnectX-6 VPI Adapter Card HDR100 EDR IB and 100GbE Single-Port QSFP56 PCIe3.0/4.0 x16 Tall Bracket.
World's first 200Gb/s HDR InfiniBand and Ethernet network adapter card, offering industry-leading performance, smart offloads and In-Network Computing, leading to the highest return on investment for High-Performance Computing, Cloud, Web 2.0, Storage and Machine Learning applications.
ConnectX-Virtual Protocol Interconnect (VPI) is a groundbreaking addition to the Mellanox ConnectX series of industry-leading adapter cards. Providing two ports of 200Gb/s for InfiniBand and Ethernet connectivity, sub-600ns latency and 215 million messages per second, ConnectX-6 VPI enables the highest performance and most flexible solution aimed at meeting the continually growing demands of data center applications.
In addition to all the existing innovative features of past versions, ConnectX-6 offers a number of enhancements to further improve performance and scalability.
ConnectX-6 VPI supports HDR, HDR100, EDR, FDR, QDR, DDR and SDR InfiniBand speeds as well as 200, 100, 50, 40, 25, and 10Gb/s Ethernet speeds.

  • Industry-leading throughput, low CPU utilization and high message rate
  • 101 Gigabit Ethernet card will undoubtedly ease bandwidth and management constraints on service provider networks
  • Highest performance and most intelligent fabric for compute and storage infrastructures
  • This 16000 MB/s bandwidth PCI Express 3.0 x16 adapter ensures easy connectivity and plug-in form-factor for affordable and reliable Ethernet network
  • Cutting-edge performance in virtualized networks including Network Function Virtualization (NFV)
  • This single port 100gigabit ethernet card enables you to connect your computer system to your existing network
  • Mellanox Host Chaining technology for economical rack design
  • Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between servers and network components
  • Smart interconnect for x86, Power, Arm, GPU and FPGA-based compute and storage platforms
  • With the 100GBase-X technology get up to 40Gbps data transfer rate over the supported network cable
  • Flexible programmable pipeline for new network flows
  • Cutting-edge performance in virtualized networks, e.g., NFV
  • Efficient service chaining enablement
  • Increased I/O consolidation efficiencies, reducing data center costs & complexity
Mellanox logo
 Need more information? Ask a Question

Product Specifications

  • Brand Name
    Mellanox
  • Environmental Certification
    China RoHS PFOS REACH RoHS Taiwan RoHS
  • Environmentally Friendly
    Yes
  • Expansion Slot Type
    QSFP56
  • Form Factor
    Standup
  • Host Interface
    PCI Express 3.0 x16
  • Limited Warranty
    1 Year
  • Manufacturer Part Number
    MCX653105A-ECAT-SP
  • Media Type Supported
    Optical Fiber
  • Network Technology
    100GBase-X 10GBase-X 25GBase-X 40GBase-X 50GBase-X
  • Product Line
    ConnectX-6 VPI
  • Product Name
    ConnectX-6 VPI 100Gigabit Ethernet Card
  • Product Type
    100Gigabit Ethernet Card
  • Total Number of Ports
    1
