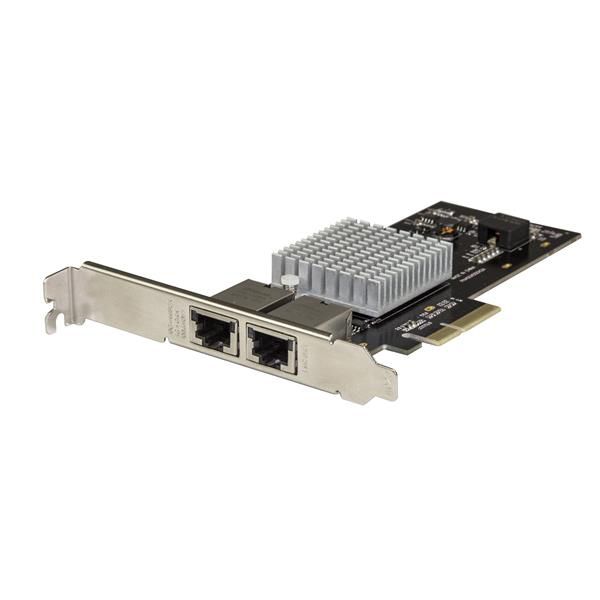

StarTech.com Dual Port Network Card - 2-port PCI Express 10GBase-T / NBASE-T Ethernet Network Interface Card - 5 speed NIC Card - Intel X550

PCI Express 3.0 x4 - 2 Port(s) - 2 - Twisted Pair
Product Number: SYNX5014184
  • 2-port 10GBase-T/NBASE-T network card supporting five network speeds: 10G, 5G, 2.5G 1G and 100Mbps
  • 10Gigabit Ethernet card offers the flexibility and scalability to make infrastructure run as efficiently and productively as possible with 10Gigabit data transfer rate
  • To accelerate IT services, increase data center efficiency and double your bandwidth without doubling your costs and complexity use this 10Gigabit Ethernet
  • Reliable performance with Intel X550 chipset
More details
$301.16
Free 2-Day Shipping Estimated Delivery
Favorite
Compare
Request Quote

Product Description

StarTech.com Dual Port Network Card - 2-port PCI Express 10GBase-T / NBASE-T Ethernet Network Interface Card - 5 speed NIC Card - Intel X550 - This dual-port network card offers versatile and cost-efficient network connectivity, by increasing the available network bandwidth without having to replace your existing cabling infrastructure. The 5-speed network card lets you add two 10G/NBASE-T RJ45 ports to your server or desktop computer and access your network at multiple speeds: 10G, 5G, 2.5G, 1G, and 100Mbps.

Cost-effective, multimode network connectivity

Compatible with a broad range of operating systems, this versatile dual-port NIC is ideal for many business applications that require upgrades to servers or workstations. Fully compliant with 10GBASE-T and NBASE-T specifications, the network card is a cost-effective way to enhance your server or computer capabilities by adding two powerful 10-Gigabit Ethernet ports. (10G network speeds require Cat6a cable. All other speeds require Cat5e cable.)

Connect to NBASE-T equipment

The network card supports advanced NBASE-T technology, compatible with the latest multi-gigabit Ethernet switches and routers, such as new Cisco campus switches (including Catalyst 4500E, 3850 and 3560-CX). The card enables you to connect to NBASE-T based equipment at network speeds of 2.5Gbps or 5Gbps, over your existing Cat5e infrastructure, without having to upgrade to more expensive Cat6a.

NBASE-T technology accelerates the speed of twisted pair Cat5e copper cabling over a distance of up to 100 meters. The Ethernet network card also supports 10Gbps network speeds if using Cat6a cabling, and 1Gbps network speeds if using Cat5e (or better) cabling.

The Ethernet ports are based on the Intel X550 chipset, designed to deliver the power, performance, and enhanced capabilities you need for reliable network connections to your server or computer. The network card also supports advanced features including 9K jumbo frames and 802.1q VLAN tagging.

Easy installation

With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped with a standard-profile bracket for installation in a full-sized chassis and includes a low-profile/half-height bracket for installation in small form-factor computers.

The ST10GPEXNDPI dual-port network card is backed by a StarTech.com 2-year warranty and free lifetime technical support.

  • 2-port 10GBase-T/NBASE-T network card supporting five network speeds: 10G, 5G, 2.5G 1G and 100Mbps
  • 10Gigabit Ethernet card offers the flexibility and scalability to make infrastructure run as efficiently and productively as possible with 10Gigabit data transfer rate
  • To accelerate IT services, increase data center efficiency and double your bandwidth without doubling your costs and complexity use this 10Gigabit Ethernet
  • Reliable performance with Intel X550 chipset
  • PCI Express 3.0 x4 interface provides enhanced bandwidth for the quick access of data by the operating system and applications
  • IEEE 802.3az compliant energy-efficient chipset
  • For high bandwidth connectivity, add this efficient dual port 10gigabit ethernet card to your server or workstation
  • This dual port 10gigabit ethernet card lets you add two network ports using a single expansion slot to a client, server or workstation
  • Virtualization (Microsoft Hyper-V) and iSCSI support
  • Supports cost-efficient twisted pair cables for speedy data transfer up to 100 meters
  • PXE support
  • With the 10GBase-T technology get up to 10Gbps data transfer rate over the twisted pair cable
  • PCIe 3.0 x4 interface

Product Specifications

  • Brand Name
    StarTech.com
  • Depth
    5.9"
  • Environmental Certification
    RoHS WEEE
  • Environmentally Friendly
    Yes
  • Form Factor
    Plug-in Card
  • Height
    0.7"
  • Host Interface
    PCI Express 3.0 x4
  • Limited Warranty
    2 Year
  • Media Type Supported
    Twisted Pair
  • Network Technology
    10GBase-T
  • Number of Network (RJ-45) Ports
    2
  • Package Contents
    2-Port PCIe 10GBase-T / NBASE-T Ethernet Network Card - with Intel X550 Chip 1 x Low-Profile Bracket 1 x Quick-Start Guide
  • Product Name
    2-Port PCIe 10GBase-T / NBASE-T Ethernet Network Card - with Intel X550 Chip
  • Product Type
    10Gigabit Ethernet Card
  • System Requirements
    Windows 7, 8, 8.1, 10 Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019 (Windows Drivers are supported in 64-bit only) Linux 3.x to 4.11 LTS Versions only
  • Total Number of Ports
    2
  • Width
    4.7"
