StarTech.com 2 Port RS232 Serial Adapter Card with 16950 UART - PCIe to Serial Adapter - Supports transfer rates up to 921.4Kbps - Windows and Linux Compatible - RS232 Serial Port PCI Express Card with a features a low-profile or full-profile bracket - Su

2-port PCI Express RS232 serial controller card w/16950 UART/ASIX AX99100 - Bi-directional speeds 921.6Kbps/port | 256 byte FIFO | 9th data bit - Pin 9 pwr out 5v/12v/none w/up to 2A total - Expansion card w/low profile bracket (Std incl) - Win/Linux
Product Number: SYNX5536585
  • 2 PORT SERIAL CARD: Serial controller card w/16950 UART based on ASIX AX99100, allows 2x DB9 ports w/bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer & 9th data bit
  • OPTIONAL CONFIGURABLE POWER: PCI Express RS232 serial adapter card provides choice of 12v, 5v, or none through pin 9 w/up to 2A total; Each of the 2 ports are individually configurable
  • LOW PROFILE BRACKETS PRE-INSTALLED: PCIe multiport serial card comes w/ a low profile bracket preinstalled & a full profile bracket is incl for versatile install; supports Windows XP and up & Linux
  • VERSATILE APPLICATIONS: For standard/low profile desktop/servers w/ uses in point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanner, oscilloscope
More details
$49.52
Free Shipping Estimated Delivery  Tue 10/26  Wed 10/27   (7 business days)
Non Returnable See our return policy for more information
Favorite
Compare
Request Quote

Product Description

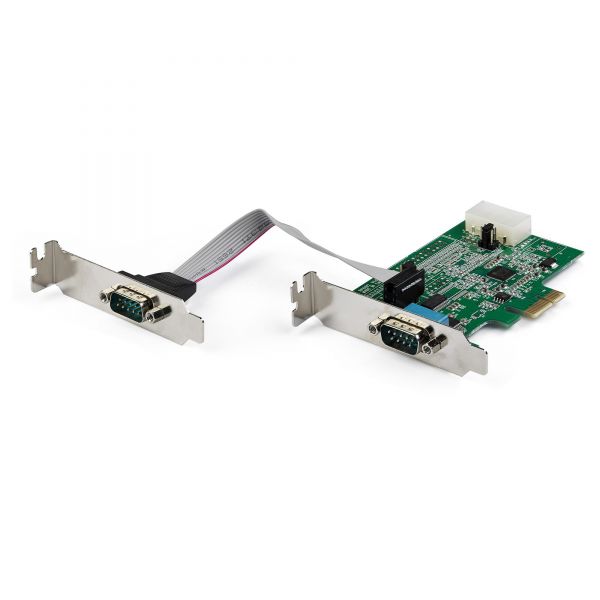

StarTech.com 2 Port RS232 Serial Adapter Card with 16950 UART - PCIe to Serial Adapter - Supports transfer rates up to 921.4Kbps - Windows and Linux Compatible - RS232 Serial Port PCI Express Card with a features a low-profile or full-profile bracket - Su - This RS232 Serial Adapter Card lets you add two RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.4Kbps. Maximum Compatibility
With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor. Experience Optimal Technology
This PCIe to serial adapter supports the following features:
Compatible with industry standard 16950 UART
Supports max baud rate of up-to 921.4Kbps
Provides 5/12V power output on Pin 9 when external power is connected
256-byte depth FIFO per transmitter and receiver
Supports 9, 8, 7, 6, 5 data bits
Asix AX99100 chipset
PCI Express 1.1 compliant
PEX2S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.

  • 2 PORT SERIAL CARD: Serial controller card w/16950 UART based on ASIX AX99100, allows 2x DB9 ports w/bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer & 9th data bit
  • OPTIONAL CONFIGURABLE POWER: PCI Express RS232 serial adapter card provides choice of 12v, 5v, or none through pin 9 w/up to 2A total; Each of the 2 ports are individually configurable
  • LOW PROFILE BRACKETS PRE-INSTALLED: PCIe multiport serial card comes w/ a low profile bracket preinstalled & a full profile bracket is incl for versatile install; supports Windows XP and up & Linux
  • VERSATILE APPLICATIONS: For standard/low profile desktop/servers w/ uses in point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanner, oscilloscope
  • STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; PCIe RS232 Serial expansion card is backed for life by StarTech.com, incl. free 24/5 North America based multi-lingual tech support
Guides & Information
Related Articles
 Need more information? Ask a Question

Product Specifications

  • Brand Name
    StarTech.com
  • Card Height
    Low-profile
  • Country of Origin
    Taiwan
  • Environmental Certification
    REACH RoHS WEEE
  • Environmentally Friendly
    Yes
  • Form Factor
    Plug-in Card
  • Host Interface
    PCI Express
  • Limited Warranty
    Lifetime
  • Manufacturer Part Number
    PEX2S953LP
  • Package Contents
    2-Port RS232 Serial Adapter Card with 16950 UART 1 x Full-Profile Bracket 1 x User Manual
  • Platform Supported
    Linux PC
  • Product Name
    2-Port RS232 Serial Adapter Card with 16950 UART
  • Product Type
    Serial Adapter
