StarTech.com 4 Port PCI SATA RAID Controller Adapter Card

Up to 150MBps - 4 x 7-pin SATA Female Serial ATA/150 - Serial ATA Internal - View Complete Details

Product Number: SYNX1109902

0 star rating00 review|Write a Review

Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items below to see if a replacement product is available.

Accessories

Loading

You May Also Like

More like this

Product Details

Not
Returnable
Not Returnable

Due to its limited shelf life or other concerns, we do not accept returns on this product unless it is damaged, defective or incorrect due to an error on our part.

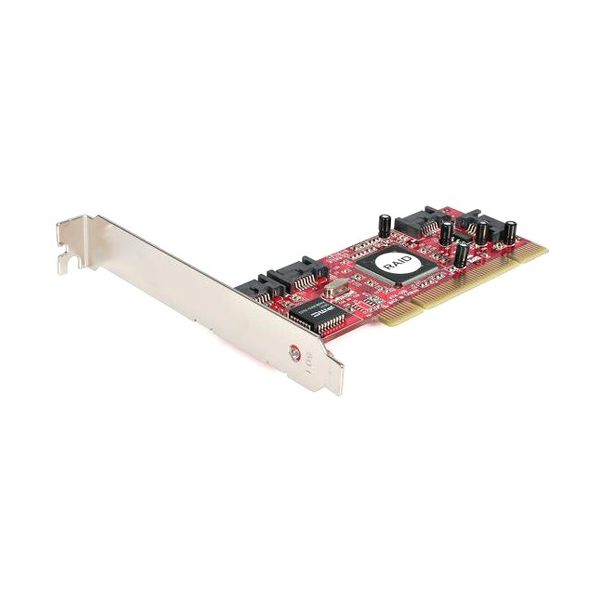

StarTech.com 4 Port PCI SATA RAID Controller Adapter Card - Add 4 SATA ports to your PC through a PCI expansion slot, with support for high-performance RAID array installation. The PCISATA4R1 4 Port PCI SATA RAID Controller lets you add four internal SATA 1.0 (1.5 Gbps) ports to your PC through a single PCI expansion slot, while offering support for several RAID modes or a simple JBOD (Just a Bunch of Disks) configuration.

The PCI SATA card provides increased performance and capacity with RAID 0 (Striping), or a redundant copy of your hard drive with RAID 1 (Mirroring). Configuring in RAID 10 (a.k.a. RAID 0+1) lets you leverage both by creating a mirrored copy of your striped disk set. Plus, the SATA RAID card supports RAID 1+S (Mirror + Spare), which uses a third installed drive to automatically replace a failed drive and rebuild the mirrored set - even if it is the boot drive that failed.

For the ability to fit most standard computer cases, the card ships with a standard profile bracket installed and includes a low profile bracket for adapting to slimline or small form factor systems.

Note: While the PCISATA4R1 card supports any size hard drive in JBOD mode, the max supported drive size when in RAID mode is 2 TB (per port).

Backed by a StarTech.com lifetime warranty and free lifetime technical support.
