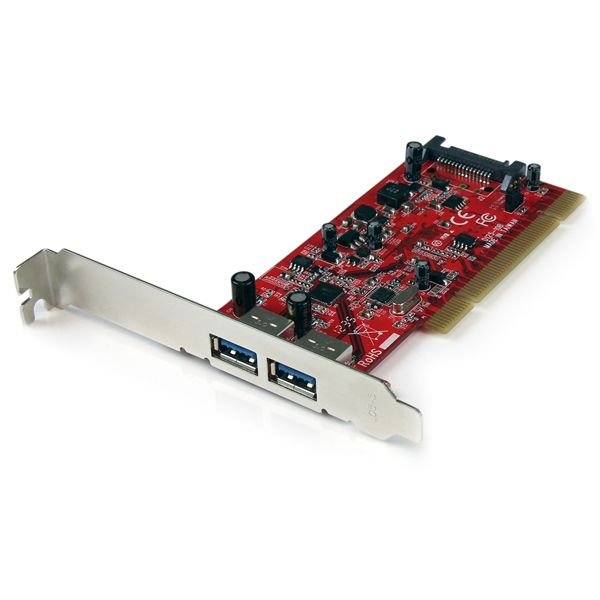

StarTech.com 2 Port PCI SuperSpeed USB 3.0 Adapter Card with SATA Power - 5Gbps
- 2 external Super Speed USB 3.2 Gen 1 (5Gbps) ports
- Provides up to 900mA of power over USB 3.2 Gen 1
- Backward compatible with USB 2.0/1.x devices
- Compliant with USB 3.2 Gen 1 base specification 1.0 and xHCI specification 0.95
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description
StarTech.com 2 Port PCI SuperSpeed USB 3.0 Adapter Card with SATA Power - 5Gbps - The PCIUSB3S22 2-Port PCI to USB 3.2 Gen 1 Card enables you to connect USB 3.2 Gen 1 peripherals to a PC through a legacy PCI host bus, which doubles the data transfer speeds when used with USB 3.2 Gen 1 peripherals than would be possible with a USB 2.0 host connection - up to 1.3 Gbps (PCI bus limit).
The card features an optional SATA power connection, which enables each port to supply up to 900mA of power to USB 3.2 Gen 1 bus-powered devices.
By supporting a legacy (PCI) host connection, the card adds updated peripheral connectivity, without having to upgrade to a PCIe-equipped motherboard or rely on the backward compatibility of USB 3.2 Gen 1 peripherals.
Guaranteed to provide reliable performance, the PCIUSB3S22 PCI USB 3.2 Gen 1 card is backed by lifetime warranty and free lifetime technical support.
More from the Manufacturer
- 2 external Super Speed USB 3.2 Gen 1 (5Gbps) ports
- Provides up to 900mA of power over USB 3.2 Gen 1
- Backward compatible with USB 2.0/1.x devices
- Compliant with USB 3.2 Gen 1 base specification 1.0 and xHCI specification 0.95
- Compliant with PCI Specification 3.0
- Includes a Low Profile/Half-Height installation bracket
- 2 external Super Speed USB 3.0 ports
- Provides up to 900mA of power over USB 3.0
- Compliant with USB 3.0 base specification 1.0 and xHCI specification 0.95
Product Specifications
-
Brand NameStarTech.com
-
Country of OriginTaiwan
-
Data Transfer Rate5 GB/s
-
Environmental CertificationRoHS REACH WEEE
-
Environmentally FriendlyYes
-
Form FactorPlug-in Card
-
Height2.2"
-
Host InterfacePCI-X
-
Length4.8"
-
Limited WarrantyLifetime
-
Manufacturer Part NumberPCIUSB3S22
-
Number of USB 3.2 Ports2
-
Operating System SupportedWindows 10 Windows 11 Windows 7 Windows 8 Windows 8.1 Windows Server 2003 Windows Server 2008 R2 Windows Server 2012 Windows Server 2016 Windows Server 2019 Windows Vista Windows XP
-
Package Contents1x Low Profile Bracket 1x Driver CD 1x Instruction Manual 2 Port PCI SuperSpeed (5Gbps) USB 3.0 Adapter Card with SATA Power
-
Platform SupportedPC
-
Product ColorRed
-
Product Name2 Port PCI SuperSpeed (5Gbps) USB 3.0 Adapter Card with SATA Power
-
Product TypeUSB Adapter
-
Thickness400 mil
-
Total Number of USB Ports2
-
Width0.4"
