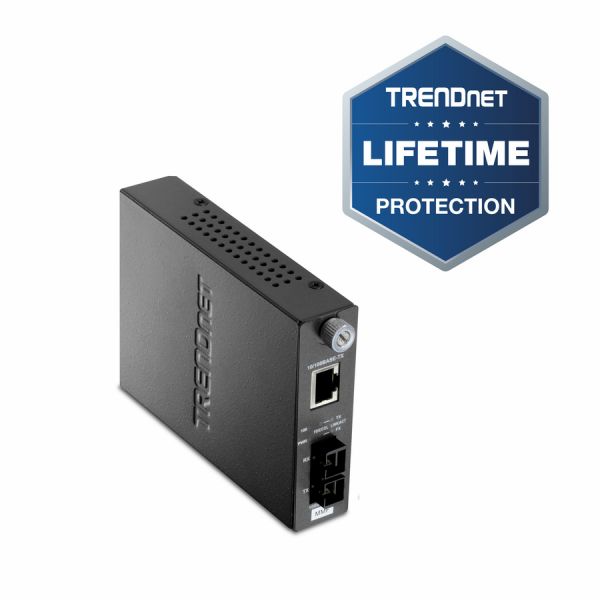

TRENDnet 100Base-TX to 100Base-FX Multi Mode SC Fiber Media Converter (2 Km, 1.2 Miles), Fiber to Ethernet Converter, RJ-45 Port, Fiber Port, Wall Mountable, Lifetime Protection, Black, TFC-110MSC

10/100Base-TX to 100Base-FX SC-type Fiber Converter
Product Number: SYNX3690057
  • MT-RJ type multi-mode fiber port connects over distances of up to 2km (1.2miles)
  • Expand your network capabilities with this 2 transceiver/media converter
  • 10/100Base-TX port supports Auto-Negotiation, Auto-MDIX and Full-Duplex mode
  • Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between networks and different devices
More details
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

TRENDnet 100Base-TX to 100Base-FX Multi Mode SC Fiber Media Converter (2 Km, 1.2 Miles), Fiber to Ethernet Converter, RJ-45 Port, Fiber Port, Wall Mountable, Lifetime Protection, Black, TFC-110MSC -
MT-RJ type multi-mode fiber port connects over distances of up to 2km (1.2miles)
10/100Base-TX port supports Auto-Negotiation, Auto-MDIX and Full-Duplex mode
Functions as a stand alone converter or with the TFC-1600 fiber chassis
Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX / 100Base-FX standards
Lifetime TRENDnet Manufacturer's Warranty
The TFC-110MSC Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Multi Mode SC-Type fiber converter spanning distances up to 2km (1.2 miles). Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX fiber port (SC-Type).

Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX / 100Base-FX standards
1 x 10/100Base-TX auto-negotiation RJ-45 port
Auto-negotiation 10/100Mbps connection speed and Half/Full-duplex mode on TX port
Auto MDIX for 10/100Base-TX port
1 x 100Mbps fiber port with multi-mode SC-type connector
Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
Dip-switch for full and half duplex selection on fiber port
Wall mountable
Optional 19" system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters
Lifetime TRENDnet Manufacturer's Warranty

PACKAGE CONTENTS
TFC-110MSC
Multi-Language Quick Installation Guide
Power Adapter (5V, 1A)
More from the Manufacturer

  • MT-RJ type multi-mode fiber port connects over distances of up to 2km (1.2miles)
  • Expand your network capabilities with this 2 transceiver/media converter
  • 10/100Base-TX port supports Auto-Negotiation, Auto-MDIX and Full-Duplex mode
  • Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between networks and different devices
  • Functions as a stand alone converter or with the TFC-1600 fiber chassis
  • With 100Base-FX technology get up to 100Mbps data transfer rate over twisted pair cable
  • Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX / 100Base-FX standards
  • The Wall Mountable provides convenient installation
  • Lifetime TRENDnet Manufacturer's Warranty
Guides & Information
Related Articles
 Need more information? Ask a Question
Read More

Product Specifications

  • Additional Information
    Half- / Full-Duplex mode selector on Fiber port Optional 19" system chassis with redundant power supply, holds up to 16 TFC series Media Converters
  • Brand Name
    TRENDnet
  • Certifications & Standards
    FCC CE VCCI IEEE802.3 10Base-T IEEE 802.3u 100Base-TX and 100Base-FX
  • Country of Origin
    Taiwan
  • Depth
    7"
  • Ethernet Technology
    Fast Ethernet
  • Fiber Mode Supported
    Multi-mode
  • Form Factor
    Wall Mountable
  • Height
    2"
  • Input Voltage
    7.5 V DC
  • Limited Warranty
    3 Year Lifetime
  • Manufacturer Part Number
    TFC-110MSC
  • Maximum Distance Supported
    1.24 Mile
  • Media Type Supported
    Twisted Pair Optical Fiber
  • Network (RJ-45)
    Yes
  • Network Technology
    10/100Base-TX 100Base-FX
  • Number of Network (RJ-45) Ports
    1
  • Number of SC Ports
    1
  • Power Consumption
    7.20 W
  • Product Condition
    New
  • Product Model
    TFC-110MSC
  • Product Name
    10/100Base-TX to 100Base-FX SC-type Fiber Converter
  • Product Series
    TFC110
  • Product Type
    Transceiver/Media Converter
  • Total Number of Ports
    2
  • Width
    6"
