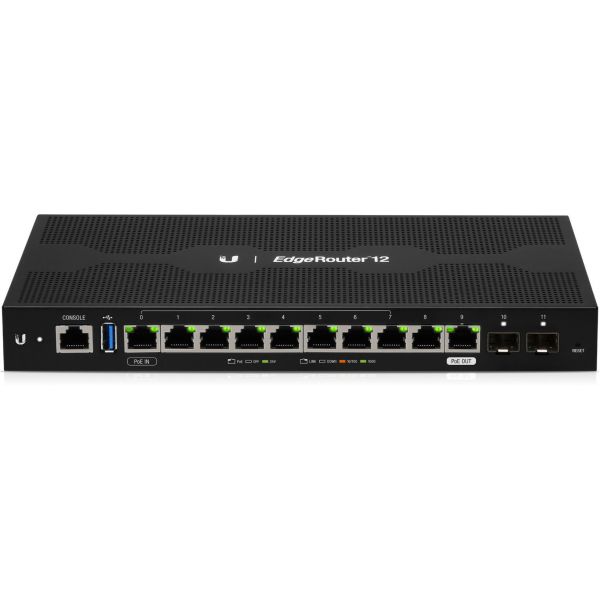

Ubiquiti EdgeRouter ER-12 Router

10 Ports - PoE Ports - Management Port - 2 Slots - Gigabit Ethernet - 1U - Desktop, Rack-mountable
Product Number: IGRM5UN443
  • (10) Gigabit RJ45 routing ports
  • Offers high performance and reliable connectivity to the Internet and other offices
  • 24V PoE input on port 0
  • Management capability provides control over the router's setup and configuration
More details
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items below to see if a replacement product is available.

Product Description

Ubiquiti EdgeRouter ER-12 Router - Advanced Routing Technology for the Masses

Ubiquiti Networks introduces three new routers for the EdgeMAX platform:

EdgeRouter 4
EdgeRouter 6P
EdgeRouter 12 They join the array of cost-effective Gigabit routers:

3-Port EdgeRouter Lite
5-Port EdgeRouter PoE
8-Port EdgeRouter
8-Port EdgeRouter Pro High Performance

The EdgeRouter 4, 6P, and 12 are each capable of routing up to 3.4 million packets per second.

The EdgeRouter and EdgeRouter Pro route up to 2 million+ packets per second, and the EdgeRouter Lite and EdgeRouter PoE route up to 1 million packets per second.

PoE Flexibility

The EdgeRouter 6P and PoE include configurable PoE ports to power airMAX products, and the EdgeRouter 12 has a PoE input port and a PoE passthrough port.

Fiber Connectivity

For fiber uplinking, the EdgeRouter 4 and EdgeRouter 6P provide an SFP port. The EdgeRouter 12 features dual SFP ports, while the EdgeRouter offers two combination RJ45/SFP ports.

EdgeRouters combine carrier-class reliability with enterprise-level features in a compact and affordable unit.

Manage Your Network

DHCP Server Set up multiple DHCP servers to assign IP ranges in different subnets on the different interfaces.

Easily control dynamic and static IP addressing for your network devices.

Monitoring Tools Conveniently track network activity and devices from tools such as Ping, Trace, Discover, Packet Capture, and Log Monitor.

Secure Your Network

Firewall Policies Organize the rules you apply in the order you specify.

Firewall Groups Apply the policies to groups filtered by IP address, network address, or port number.

NAT Rules The EdgeRouter changes packet addressing based on your customized source and destination NAT rules.

Direct Traffic Flow

Interfaces Each port functions as an independent interface.

You can also configure Virtual Local Area Network (VLAN) interfaces for network segmentation.

Routing Configure static routes and dynamic routing protocols to effectively manage the routes used by the EdgeRouter.


Intuitive User Interface

The EdgeRouter provides a graphical user interface designed for convenient setup and control. Easily configure the routing, security, and management features required to efficiently run your network. For advanced network professionals, an integrated CLI is available for quick and direct access using familiar commands.

Even greater convenience and flexibility is provided by the UNMS app, which makes it possible to manage the EdgeRouter remotely from your mobile device.

Powerful Features

EdgeOS is a sophisticated operating system loaded with robust features, including:

VLAN interfaces for network segmentation
Static routes and support of routing protocols: OSPF, RIP, BGP, and MPLS
Firewall policies and NAT rules
Application identification with Deep Packet Inspection (DPI)
DHCP services
Quality of Service (QoS)
Network administration and monitoring tools
Administrator and operator accounts
Comprehensive IPv6 support

  • (10) Gigabit RJ45 routing ports
  • Offers high performance and reliable connectivity to the Internet and other offices
  • 24V PoE input on port 0
  • Management capability provides control over the router's setup and configuration
  • 24V PoE passthrough option on port 9
  • With 1000Base-T technology, get up to 1000 mbps data transfer rate over twisted pair cable
  • Ports 0-7 can be configured for line-rate Layer 2 switching
  • With Gigabit Ethernet, retrieve up to 10x faster than standard Ethernet connectivity and provides high-performance
  • (2) Gigabit SFP ports
  • Can be placed on desktop surfaces for standalone installation
  • 3.4 million packets per second for 64-byte packets
  • 6.8 Gbps for packets 1518 bytes or larger in size
  • Silent, fanless operation
  • Compact, durable metal case
Guides & Information
 Need more information? Ask a Question

Product Specifications

  • Brand Name
  • Compatible Rack Unit
  • Depth
  • Ethernet Technology
    Gigabit Ethernet
  • Form Factor
    Desktop Rack-mountable
  • Height
  • Limited Warranty
    1 Year
  • Management Port
  • Manufacturer Part Number
  • Network Technology
    1000Base-T 1000Base-X
  • Number of Total Expansion Slots
  • Package Contents
    EdgeRouter ER-12 Router External AC Power Adapter, 24W (24V, 1A)
  • PoE (RJ-45) Port
  • Product Line
  • Product Model
  • Product Name
    EdgeRouter ER-12 Router
  • Product Type
  • Total Number of Ports
  • USB
  • Width
