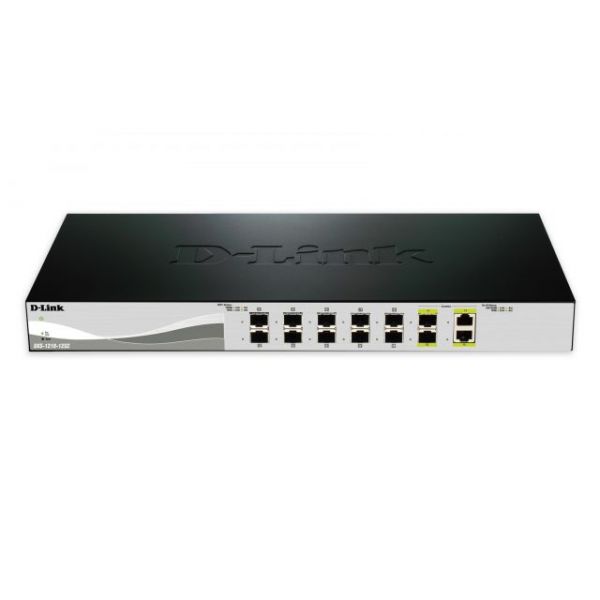

D-Link 10G Smart Switch with 10-port 10G SFP+ and 2-port 10GBASE-T/SFP+ Combo Port

12 Ports - Manageable - 10 Gigabit Ethernet - 10GBase-X, 10GBase-T - 3 Layer Supported - Twisted Pair, Optical Fiber - Rack-mountable, Desktop
Product Number: SYNX4207588
  • Effectively increases available bandwidth on your network
  • Features 12 networking ports to easily establish a local network or expand your existing one
  • Power Supply power source for required power supply to ensure maximum efficiency
  • Can work as layer 3 routing for scalable network design
More details
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

D-Link 10G Smart Switch with 10-port 10G SFP+ and 2-port 10GBASE-T/SFP+ Combo Port - D-Link's DXS-1210 series 10 Gigabit Ethernet Smart Switches are cost effective 10 GbE switches capable of servicing a range of network needs in any business. Supporting 10GBASE-T/ SFP+ combo ports, they provide connection flexibility across a network allowing easier network integration. With high performance and low latency, these switches can fulfill the needs for virtualization, cloud services and server-to-server applications, making it perfect for SMB customers.
DXS-1210 series switches offer 10GbE copper and fiber ports. The 10GBASE-T copper ports utilize RJ45 interfaces and support 10 Gigabit speeds over CAT6a/CAT7 LAN cabling up to 100m. The 10GbE fiber ports can be connected to other 10GbE ports with low cost Direct Attach Copper (DAC) cables, or with SFP+ optical transceivers over multimode or singlemode fiber optic cabling.
Energy Saving
Incorporating D-Link Green technology, the switches are capable of power-saving without sacrificing operational performance or functionality. They feature built-in smart fans; internal heat sensors monitor and detect temperature changes, and react accordingly by utilizing different fan speeds for different temperatures. At lower temperatures, the fans will run slower, reducing the switch's power consumption and noise. Link status drastically reduces power consumption by automatically toggling ports without a link to sleep mode. DXS-1210 switches take the approach to green IT one step further by incorporating a special chipset with advanced silicon technology for efficient use of energy.
Extensive Management and Layer 2 Features
Equipped with a complete lineup of L2 features, DXS-1210 switches include port mirroring, Spanning Tree Protocol and Link Aggregation Control Protocol (LACP). Network maintenance features include loopback detection and cable diagnostics. Loopback detection is used to detect loops created by a specific port and automatically shut down the affected port. The cable diagnostic feature, designed primarily for administrators and customer service representatives, can rapidly discover errors and determine the cable quality, allowing the switch to manage itself for you.
QoS, Bandwidth Control
DXS-1210 switches support Auto Surveillance VLAN (ASV), and Auto Voice VLAN, which are best suited for VoIP and video surveillance deployments. Auto Surveillance VLAN technology consolidates data and surveillance video transmission through a single unit, thus sparing businesses the expense of dedicated hardware and facilities. ASV also ensures the quality of real-time video for monitoring and control without compromising the transmission of conventional network data. Auto Voice VLAN technology enhances the VoIP service by automatically placing voice traffic from an IP phone to an assigned VLAN. With higher priority and individual VLAN, these features guarantee the quality and security of VoIP traffic. Furthermore, the DSCP markings on Ethernet packets enable different levels of service to be assigned to network traffic. As a result, these voice and video packets take precedence over other packets. In addition, with bandwidth control, network administrators can reserve bandwidth for important functions that require a larger bandwidth or might have high priority.

  • Effectively increases available bandwidth on your network
  • Features 12 networking ports to easily establish a local network or expand your existing one
  • Power Supply power source for required power supply to ensure maximum efficiency
  • Can work as layer 3 routing for scalable network design
  • Rack-mountable form factor for added reliability and dependability
  • Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
  • Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
D-Link logo
Related Articles
 Need more information? Ask a Question

Product Specifications

  • Brand Name
    D-Link
  • Country of Origin
    China
  • Depth
    8.3"
  • Ethernet Technology
    10 Gigabit Ethernet
  • Expansion Slot Type
    SFP+
  • Form Factor
    Desktop Rack-mountable
  • Height
    1.7"
  • Layer Supported
    3
  • Manageable
    Yes
  • Manufacturer Part Number
    DXS121012SC
  • Media Type Supported
    Optical Fiber Twisted Pair
  • Modular
    No
  • Network Technology
    10GBase-T 10GBase-X
  • Number of Network (RJ-45) Ports
    2
  • Number of SFP+ Slots
    12
  • Number of Total Expansion Slots
    12
  • Power Source
    Power Supply
  • Product Line
    SmartSwitch
  • Product Model
    DXS-1210-12SC
  • Product Name
    10G Smart Switch with 10-port 10G SFP+ and 2-port 10GBASE-T/SFP+ Combo Port
  • Product Series
    DXS-1210
  • Product Type
    Ethernet Switch
  • Shared SFP Slot
    Yes
  • Stack Port
    No
  • Total Number of Network Ports
    12
  • Uplink Port
    No
  • Width
    17.3"
