Netgear Business MS510TXUP Ethernet Switch
Product #:
SYNX6050515
+7View All
$643.57
Loading...
Product Description
Netgear Business MS510TXUP Ethernet Switch
8 Ports - Manageable - 2.5 Gigabit Ethernet, 10 Gigabit Ethernet - 2.5GBase-T, 10GBase-T, 10GBase-X - 4 Layer Supported - 295 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Desktop, Rack-mountable - Lifetime Limited Warranty
Elevate your business above the 1Gb barrier
As a leading provider of network equipment for SMBs, NETGEAR understands the importance of providing a great choice of speed and power that can support the business's needs to keep up with the growth of network speed, virtualization, cloud-based services and applications like VoIP, video streaming and IP surveillance, whether in the hospitality, catering, education or retail domains. Also, the increase in speeds for WiFi 6 access points now imply the need for faster speeds in the network.
The MS510TXM and MS510TXUP 8-port Multi-gig/10G switches with 2 SFP+ ports join the NETGEAR standalone Smart switches family, adding multi-gigabit/10G speed, a high PoE budget for all PoE/PoE+ devices, and Ultra60 PoE++ support (295W total PoE budget for MS510TXUP) for deploying devices with multi-gig capabilities and speed, such as WiFi 6 access points (eg. WAX610 from NETGEAR) and multi-gig.
NETGEAR Smart switches offer powerful Layer 2+/Lite L3 features, great PoE functionality, and enhanced performance and usability. They are purposely designed for modern applications and support BYOD which requires companies to have more bandwidth to ensure smooth network connectivity with no congestion. Furthermore, in 2.5G or 5G speeds, there is no requirement to upgrade your cabling from Cat5E, allowing for savings in installation costs.
To empower the wireless and PoE applications, NETGEAR Insight Remote/ Cloud management is added to these two new switch models as an optional management mode. By activating the NETGEAR Insight Cloud management, the users will enable management features allowing businesses simpler configuration and deployment from anywhere using the NETGEAR Insight app from mobile devices or the Insight Cloud portal from any device with a web browser.
Highlights

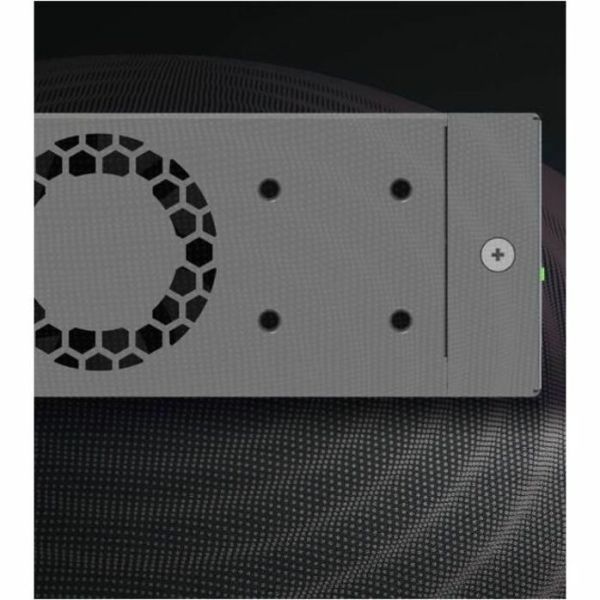

Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise, ideal for office enviornment. The MS510TXM and MS510TXUP support quiet rack mounting operation with a maximum of 25dB (MS510TXM) and 33 dBA (MS510TXUP) even at full power and 25°C (77°F) ambient.
More Powerful Switch with Multi-gigabit/10G Speed
4 x 1G/2.5G ports and 4 x multi- gig/10G ports
8 x Ultra60 PoE++ ports with 295W PoE budget (MS510TXUP only)
2 dedicated 10G SFP+ fiber uplink ports
Fast and flexible solution for SMB data, voice and video converged network
Non-blocking switching with 140Gbps bandwidth
Flexible rack-mounting option
Ideal companion to your NETGEAR WAX610
Connect and power your WAX610 with MS510TXUP
Connect your WAX610PA with MS510TXM
Manage all devices from a single dashboard with NETGEAR Insight
Powerful Connectivity and Security Advanced VLAN support for better network segmentation
As a leading provider of network equipment for SMBs, NETGEAR understands the importance of providing a great choice of speed and power that can support the business's needs to keep up with the growth of network speed, virtualization, cloud-based services and applications like VoIP, video streaming and IP surveillance, whether in the hospitality, catering, education or retail domains. Also, the increase in speeds for WiFi 6 access points now imply the need for faster speeds in the network.
The MS510TXM and MS510TXUP 8-port Multi-gig/10G switches with 2 SFP+ ports join the NETGEAR standalone Smart switches family, adding multi-gigabit/10G speed, a high PoE budget for all PoE/PoE+ devices, and Ultra60 PoE++ support (295W total PoE budget for MS510TXUP) for deploying devices with multi-gig capabilities and speed, such as WiFi 6 access points (eg. WAX610 from NETGEAR) and multi-gig.
NETGEAR Smart switches offer powerful Layer 2+/Lite L3 features, great PoE functionality, and enhanced performance and usability. They are purposely designed for modern applications and support BYOD which requires companies to have more bandwidth to ensure smooth network connectivity with no congestion. Furthermore, in 2.5G or 5G speeds, there is no requirement to upgrade your cabling from Cat5E, allowing for savings in installation costs.
To empower the wireless and PoE applications, NETGEAR Insight Remote/ Cloud management is added to these two new switch models as an optional management mode. By activating the NETGEAR Insight Cloud management, the users will enable management features allowing businesses simpler configuration and deployment from anywhere using the NETGEAR Insight app from mobile devices or the Insight Cloud portal from any device with a web browser.
Highlights
Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise, ideal for office enviornment. The MS510TXM and MS510TXUP support quiet rack mounting operation with a maximum of 25dB (MS510TXM) and 33 dBA (MS510TXUP) even at full power and 25°C (77°F) ambient.
More Powerful Switch with Multi-gigabit/10G Speed
4 x 1G/2.5G ports and 4 x multi- gig/10G ports
8 x Ultra60 PoE++ ports with 295W PoE budget (MS510TXUP only)
2 dedicated 10G SFP+ fiber uplink ports
Fast and flexible solution for SMB data, voice and video converged network
Non-blocking switching with 140Gbps bandwidth
Flexible rack-mounting option
Ideal companion to your NETGEAR WAX610
Connect and power your WAX610 with MS510TXUP
Connect your WAX610PA with MS510TXM
Manage all devices from a single dashboard with NETGEAR Insight
Powerful Connectivity and Security Advanced VLAN support for better network segmentation
- Effectively reduces downtime with improved network performance
- Features 8 networking ports to easily establish a local network or expand your existing one
- Useful for the multi-tenant unit and multi-business unit with Layer 4 traffic classifiers and bandwidth limit
- The desktop installation makes it ideal for deployments outside the wiring closet
- Management capability provides control over setup and configuration of your network
- Lets you conveniently connect to the 2.5 gigabit ethernet Ethernet technology to offer maximum productivity
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Loading...
Product Specifications
-
Application/UsageVoIP Phone Wireless Access Point Business Network IP Surveillance Network
-
Brand NameNetgear
-
Depth8.1"
-
Ethernet Technology10 Gigabit Ethernet 2.5 Gigabit Ethernet
-
Expansion Slot TypeSFP+
-
FeaturesRemote Monitoring (RMON) Auto Denial of Service (DoS) Prevention Access Control List Energy Efficient Port Mirroring Loop Protection Broadcast Storm Control Built-in Fan Multicast Storm Control Unicast Storm Control DHCP Snooping
-
Form FactorDesktop Rack-mountable
-
Height1.7"
-
Layer Supported4
-
Limited WarrantyLifetime
-
MTBF848553 Hour
-
ManageableYes
-
Manufacturer Part NumberMS510TXUP-100NAS
-
Maximum Data Transfer Rate1.25 GB/s
-
Media Type SupportedOptical Fiber Twisted Pair
-
Network (RJ-45)Yes
-
Network Technology2.5GBase-T 10GBase-T 10GBase-X
-
Number of SFP+ Slots2
-
Package ContentsPower Cord Business MS510TXUP Ethernet Switch Mounting kit Rubber Feet Installation Guide
-
PoE (RJ-45) PortYes
-
PoE Budget295 W
-
Power SourcePower Supply
-
Product LineBusiness
-
Product ModelMS510TXUP
-
Product NameBusiness MS510TXUP Ethernet Switch
-
Product TypeEthernet Switch
-
Total Number of Expansion Slots2.0
-
Total Number of Network Ports8
-
Width13"
