Product Description

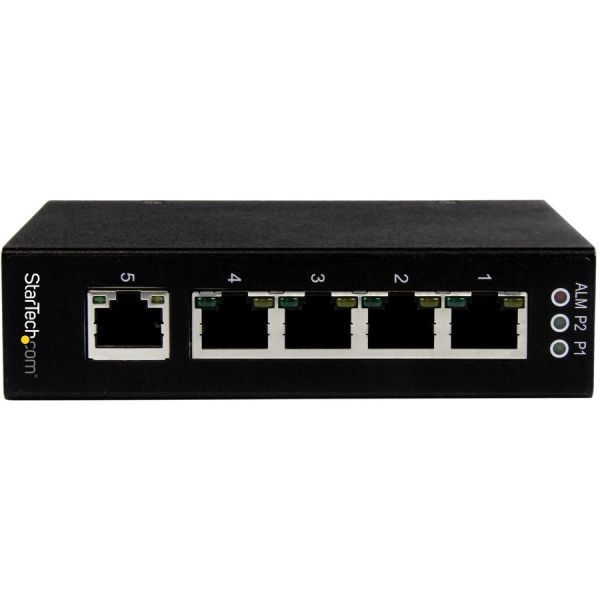

StarTech.com 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail/Wall-Mountable
Network up to 5 Ethernet devices through a rugged, industrial Gigabit Ethernet switch - 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable Network Switch - Rugged IP30-Rated Gigabit Switch - Industrial Ethernet Switch
The IES51000 5-Port Industrial Ethernet Switch offers 5 Gigabit Ethernet ports in a compact, IP30-rated metal enclosure, making it the ideal network solution for harsh industrial environments such as factory floors, warehouses or large junction boxes.
Quickly connect your network devices with little to no configuration. This unmanaged industrial network switch supports 10/100/1000 Mbps transfer speeds, full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX, which helps to eliminate the hassle of troubleshooting mis-matched speed and duplex settings.
Providing seamless operation in the event of power dips or failures, the switch features redundant 12-58V DC terminal block power inputs to help prevent unnecessary downtime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs.
For easy installation and dependable performance in harsh environments, the switch can be DIN Rail or wall mounted and features a compact, IP30-rated enclosure with an extended operating temperature range (-40°C to 75°C).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
More from the Manufacturer
  • Speed / duplex auto-negotiation and auto-MDIX detection on each port
  • IEEE 802.3az Energy-Efficient Ethernet
  • Extended operating temperature range (-40?C to 75?C)
  • IP30-rated DIN rail and wall-mountable metal enclosure
  • Supports IEEE 802.3x flow control and back-pressure
  • Wide-range redundant power via two 12-58V DC terminal block inputs, with alarm relay
  • Overcurrent and reverse polarity protection
  • Up to 9K jumbo frame support
  • 5 10/100/1000 Mbps unmanaged RJ45 Ethernet ports
Related Articles
Need more information? Ask a Question

Product Specifications

  • Additional Warranty Information
    2-Year Limited
  • Brand Name
    StarTech.com
  • Bypass
    No
  • Certifications & Standards
    CE FCCIEEE Standards: 802.3 802.3u 802.3ab 802.1p 802.3az 802.3ad
  • Country of Origin
    CN
  • Depth
    4.4"
  • Dimensions
    1-1/10 in. X 3-1/2 in. X 4-4/10 in.
  • Environmentally Friendly
    Yes
  • Ethernet Technology
    Gigabit Ethernet
  • Form Factor
    Rail-mountable Wall Mountable
  • Height
    1.1"
  • LRE Port
    No
  • Layer Supported
    2
  • Limited Warranty
    2 Year
  • Manageable
    No
  • Management Port
    No
  • Manufacturer
    STARTECH.COM
  • Manufacturer Part Number
    IES51000
  • Media Type Supported
    Twisted Pair
  • Modular
    No
  • Network (RJ-45)
    Yes
  • Network Technology
    10/100/1000Base-T
  • Number of Network (RJ-45) Ports
    5
  • Number of Ports
    5
  • Package Contents
    5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable 2 x Wall-Mount Brackets 1 x DIN-Rail Clip 4 x Screws 1 x Terminal Block 1 x Instruction Manual
  • PoE (RJ-45) Port
    No
  • Port/Expansion Slot Details
    5 x Gigabit Ethernet Network
  • Power Consumption
    62 W
  • Power Source
    Power Adapter
  • Product Name
    5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable
  • Product Type
    Unmanaged Switch
  • Refurbished
    N
  • Stack Port
    No
  • TAA Compliant
    Yes
  • Token Ring Port
    No
  • Total Number of Network Ports
    5
  • USB
    No
  • Uplink Port
    No
  • Width
    3.5"
