Eaton 9PX Maintenance Bypass for Select 8kVA to 11kVA 9PX UPS Systems, Hardwired Input/Output, 3 L6-30R Outlets, 3U Rack/Tower
Product #:
ETLZ1023899693
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description

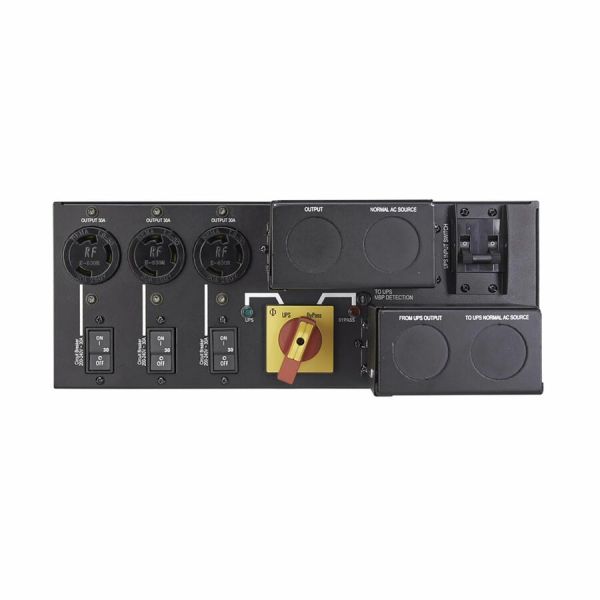

Eaton 9PX Maintenance Bypass for Select 8kVA to 11kVA 9PX UPS Systems, Hardwired Input/Output, 3 L6-30R Outlets, 3U Rack/Tower
Hardwired, 3 x NEMA L6-30R - 11000 VA - 208 V AC
Compatible with Select Eaton 8kVA to 11kVA 9PX UPS Systems
The MBP11K208 works with Eaton's 9PX8K, 9PX8KHW, 9PX8KTF5, 9PX11K, 9PX11KHW, 9PX11KTF11 and 9PX11KTF5 UPS systems. The bypass switch lets you service or replace the UPS system without powering down any equipment and risking costly downtime. Power passes directly from the PDU to equipment.
Versatile Connection and Installation Options
The MBP11K208 features hardwired input and output connections. Three NEMA L6-30R outlets also allow load connection. You can mount the maintenance bypass switch in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit. You can also adapt it for tower or wall installation using the included hardware.
The MBP11K208 works with Eaton's 9PX8K, 9PX8KHW, 9PX8KTF5, 9PX11K, 9PX11KHW, 9PX11KTF11 and 9PX11KTF5 UPS systems. The bypass switch lets you service or replace the UPS system without powering down any equipment and risking costly downtime. Power passes directly from the PDU to equipment.
Versatile Connection and Installation Options
The MBP11K208 features hardwired input and output connections. Three NEMA L6-30R outlets also allow load connection. You can mount the maintenance bypass switch in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit. You can also adapt it for tower or wall installation using the included hardware.
- Isolates UPS from connected loads for maintenance without powering down equipment
- Designed for 3U rack, tower or wall mounting using the included installation hardware
- Compatible with Eaton?s 8kVA to 11kVA 9PX UPS systems
Product Specifications
-
Brand NameEaton
-
Compatibility8 kVA Eaton 9PX UPS: 11 kVA
-
Country of OriginMorocco
-
Form FactorRack-mountable
-
Input Voltage208 V AC
-
Limited Warranty3 Year
-
Load Capacity (VA)11 kW
-
Manufacturer Part NumberMBP11K208
-
Plug/Connector TypeHardwired
-
Product NameBypass Module
-
Product TypeBypass Module
-
Rack Height3U
-
Receptacles3 x NEMA L6-30R Hardwired
