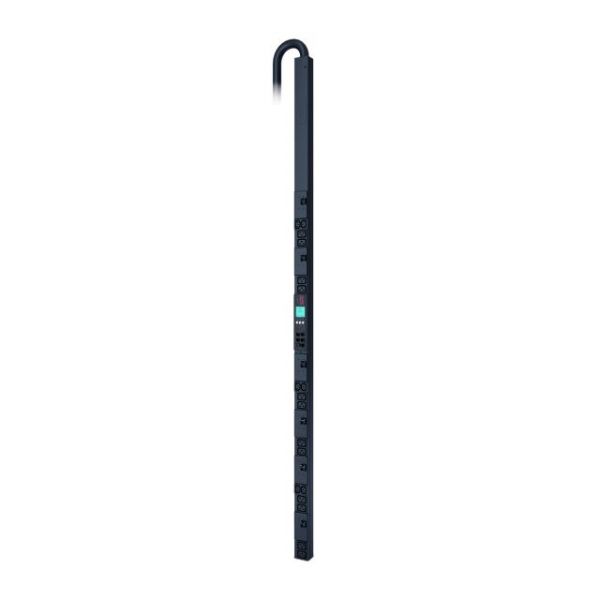

APC by Schneider Electric Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (6) C13 & (12) C19
- Meters power to enable optimal energy and protect circuits
- Fitted with multiple outlets for distribution of electrical power
- LCD to monitor current, power and voltage measurements
- Uses 6' long power cord to easily power
Product Description
APC by Schneider Electric Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (6) C13 & (12) C19 - APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
More from the Manufacturer
- Meters power to enable optimal energy and protect circuits
- Fitted with multiple outlets for distribution of electrical power
- LCD to monitor current, power and voltage measurements
- Uses 6' long power cord to easily power
- Locking IEC receptacles to ensure locking power cord compatibility to reduce accidental disconnection
Product Specifications
-
Additional InformationInput Connections: IEC 309 60A 3P+PE
-
Additional Warranty Information2 years repair or replace
-
Brand NameAPC by Schneider Electric
-
Certifications & StandardscUL Listed|UL Listed|VCCI Class A
-
Cord Length6 ft
-
Depth2"
-
EU RoHS Declaration URLhttps://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=323194460&lang=en-us
-
End of Life Manual Availabilityhttps://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712014_EN
-
Environmental CertificationRoHS
-
Environmental Profile Availabilityhttps://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712014_EN
-
Environmentally FriendlyYes
-
Green PremiumYes
-
Height72"
-
Input Voltage208 V
-
Lead FreeYes
-
Limited Warranty2 Year
-
ManagementSNMP Telnet Protocols: Web
-
Manufacturer Part NumberAP8866
-
Mercury FreeYes
-
Mount TypeRack-mountable
-
Optimized Energy EfficiencyYes
-
Output Voltage208 V AC
-
Package ContentsRack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (6) C13 & (12) C19 Installation guide Rack mounting brackets Safety guide Serial configuration cable
-
Plug/Connector TypeIEC 60309 60A 3P+PE
-
Power Rating (VA)17.30 kVA
-
Product ColorBlack
-
Product LineMetered Rack
-
Product NameRack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (6) C13 & (12) C19
-
Product Take Back ProgramYes
-
Product TypePDU
-
Protection TypeOverload Protection
-
REACH Declaration URLhttps://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=323194460&lang=en-us
-
REACH free of SVHCNo
-
Rack Height0U
-
Receptacle Detail12 x IEC 60320 C19 6 x IEC 60320 C13
-
Receptacle TypeIEC 60320 C13 IEC 60320 C19
-
RoHS Exemption Informationhttps://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8866_ROHS_DECLARATION&p_FileName=AP8866KIT_ROHS_DECLARATION_US.pdf
-
Width2.2"
