Tripp Lite PDU Basic 36 5-15/20R L5-20P 5-20P Adapter 1.9kW 15ft Cord 72in

Basic - NEMA 5-20P, NEMA L5-20P - 36 x NEMA 5-15/20R - 120 V AC - 0U - Vertical - Rack-mountable
Product Number: SYNX6047309
  • Ideal no-frills PDU for telecom, security, audio/video and other network applications
  • PDU is reliable for power protection and management solutions
  • 36 NEMA 5-15/20R outlets distribute AC power to connected equipment
  • Lighted power switch with protective cover helps prevent accidental shutdowns
More details
$197.17
Free Shipping Estimated Delivery Tue 2/1 (7 business days) Wed 2/2 (8 business days)
Favorite
Compare
Request Quote

Product Description

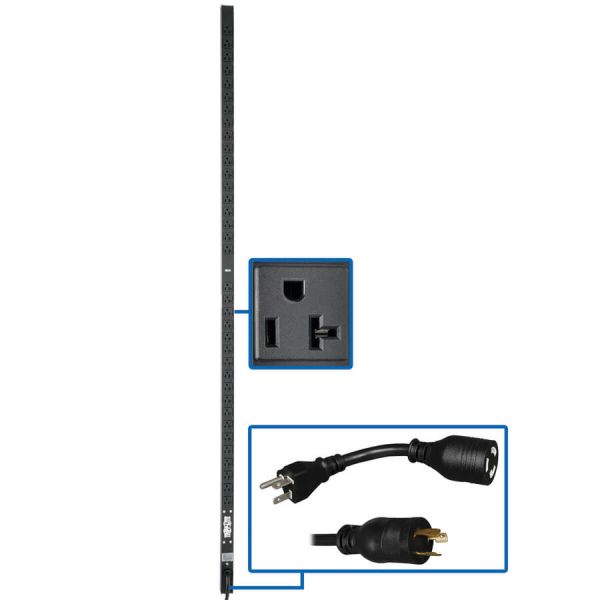

Tripp Lite PDU Basic 36 5-15/20R L5-20P 5-20P Adapter 1.9kW 15ft Cord 72in - Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads

This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDUV20-72 features 36 NEMA 5-15/20R outlets for connecting equipment. A 15-foot cord with L5-20P input plug (and included 5-20P adapter) connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.
Up-to-Date Safety Features Protect Your Vital Equipment

A lighted on/off switch is protected by a transparent plastic cover to help prevent an accidental shutdown that could lead to costly downtime. A 20A circuit breaker protects connected components from dangerous overloads.
Versatile Installation Options Give You Plenty of Choices

The 72-inch 0U PDU mounts vertically in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting clips and hardware. You may also use the clips to secure the PDU to a wall, counter or other flat, secure surface. Bolt-down retention brackets keep power cords organized and your rack free of clutter.
Typical Applications
Deliver network-grade power to high-density equipment in networking, telecom, security, audio/video and sound reinforcement applications

  • Ideal no-frills PDU for telecom, security, audio/video and other network applications
  • PDU is reliable for power protection and management solutions
  • 36 NEMA 5-15/20R outlets distribute AC power to connected equipment
  • Lighted power switch with protective cover helps prevent accidental shutdowns
  • Basic PDU deliver power to wiring closets, server rooms & equipment racks in a cost-effective way
  • 15 ft. cord with L5-20P input (and 5-20P adapter) connects to AC power source
  • 72 in. 0U PDU with included mounting brackets installs in rack or under counter
  • 2-year limited warranty

Product Specifications

  • Brand Name
    Tripp Lite
  • Country of Origin
    China
  • Depth
    1.5"
  • Environmental Certification
    RoHS
  • Environmentally Friendly
    Yes
  • Height
    72.5"
  • Input Current
    20 A
  • Input Voltage
    120 V AC
  • Limited Warranty
    2 Year
  • Manufacturer Part Number
    PDUV20-72
  • Mount Type
    Rack-mountable
  • Mounting Orientation
    Vertical
  • Output Voltage
    100 V AC 120 V AC 127 V AC
  • Package Contents
    PDUV20-72 36-Outlet PDU L5-20P to 5-20P Input Plug Adapter Plug Retention Brackets with Installation Hardware Rack-Mounting Hardware Owner's Manual
  • Phase
    Single Phase
  • Plug/Connector Type
    NEMA 5-20P NEMA L5-20P
  • Power Rating (Watt)
    2030 W
  • Product Model
    PDUV20-72
  • Product Name
    PDUV20-72 36-Outlet PDU
  • Product Type
    PDU
  • Protection Type
    Overload Protection
  • Rack Height
    0U
  • Receptacle Detail
    36 x NEMA 5-15/20R
  • Receptacle Type
    NEMA 5-15/20R
  • Width
    1.6"
